Description
12V AUTO RESET PHOTOELECTRIC
SMOKE ALARM NESS
NESS 100-034

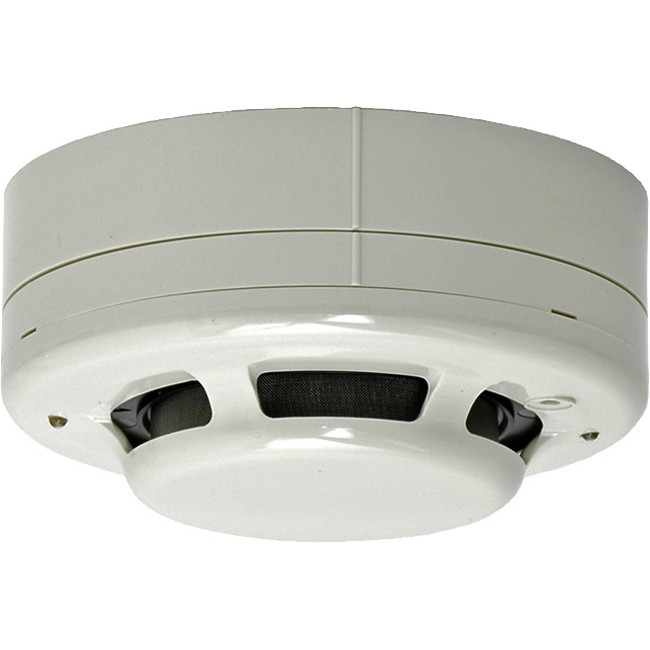

100-034 12V AUTO RESET PHOTO ELECTRIC SMOKE DETECTOR
- Auto-resetting, photoelectric, 12VDc smoke detector with relay output. the detector has twist off base for easy installation.
- Built-in sounder for local indication of alarm.
- Changeover relay for n.o. or n.c. operation.
- Dual leds are visible from any angle. led operation – standby mode: single flash every 15 seconds.
- Pre-alarm mode: rapid flashing for 3 seconds.alarm mode: on
FEATURES:
- Photoelectric technology
- 12V Dc operation
- Compatible with all ness control Panels
- On-board sounder for audible warning
- Relay alarm output
- 12V DC Smoke detector
SPECIFICATIONS:
- Dimensions …………….100 (dia) x 47 (h)mm
- Smoke detection ……..Photoelectric
- Operating voltage …… 12V Dc (any polarity)
- Current (standby) ……. 115µa
- Current (alarm) ……….. 55ma
- Audible output …………onboard sounder
- Relay output ……………n.o. & n.c. contacts
- Auto reset ……………….4 seconds after chamber is clear
