Description
EXTENSION SPEAKER FOR DES700
LA5188 IR100EB
TECHVIEW SPK200

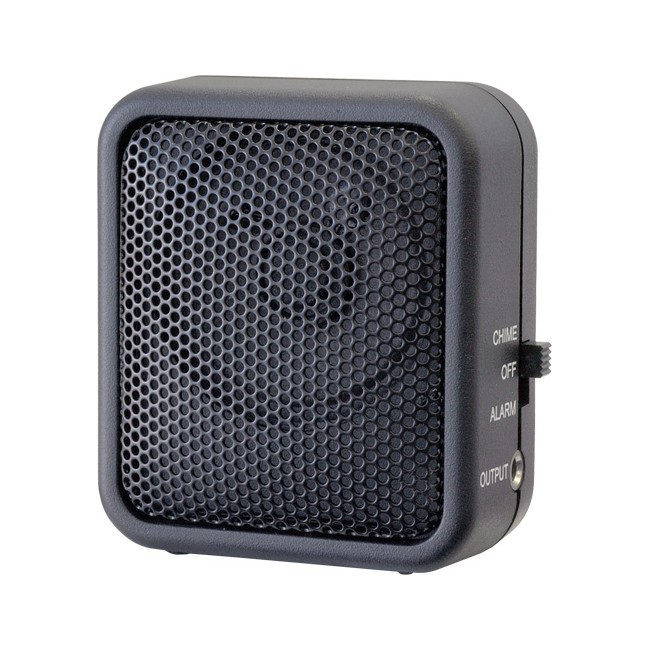

This neat and compact buzzer can be mounted anywhere and is recommended as an addition to the Infra Red Door chime (DES-700) as an extension alarm.
- The volume of the buzzer is adjustable and the sound output can be selected by a slide switch to either: Alarm, Off or Chime.
- The sounding time can also be adjusted from 3 to 30 seconds.
- Supplied with:
- mounting hardware
- 10m lead
- adjustment screwdriver
Specifications:
Input voltage: 9 – 15V D.C.
Consumption current: 25mA Max.
Ambient Temp: -20 C – 50C (-4F – 122F)
Response time of buzzer: Chime: 1sec. Alarm:30sec
Volume of Speaker: 0 – Max (adjustable)
Alarm time: 30 sec Max (adjustable)
Speaker output: Chime/Off/Alarm (selected by slide switch)
Mounting bracket and screws: Included.
