Description

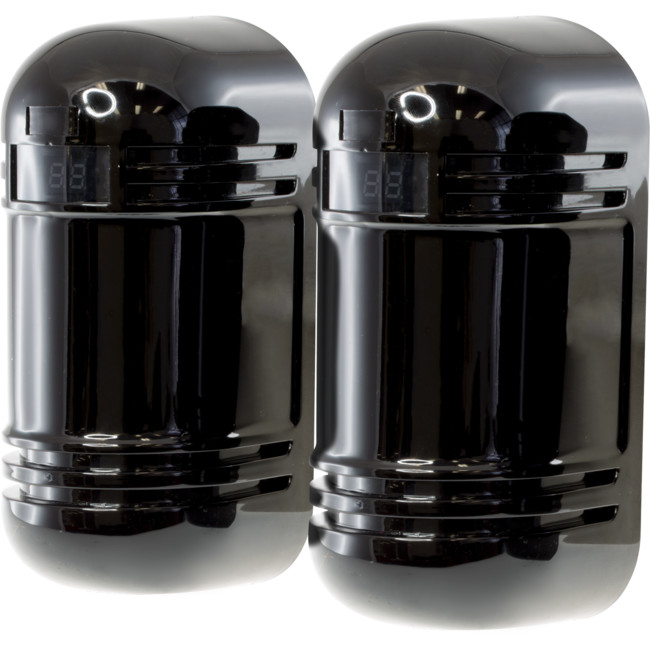

DUAL BEAM PHOTOELECTRIC SENSOR
DIGITAL PULSE BEAM
DBPC946B
Secure your land and get alerted when anything passes theline! With this Dual-Beam Photoelectric Sensor you will be able to set up a security line and hear a warning sound if any movements are detected. Capable for both indoor and outdoor use. Now with digital display!
Features
- Wired/BUS compatible, 8 digital frequency range.
- Dynamic frequency analysis
- Intelligent alarm linkage links alarm to your existingsecurity system

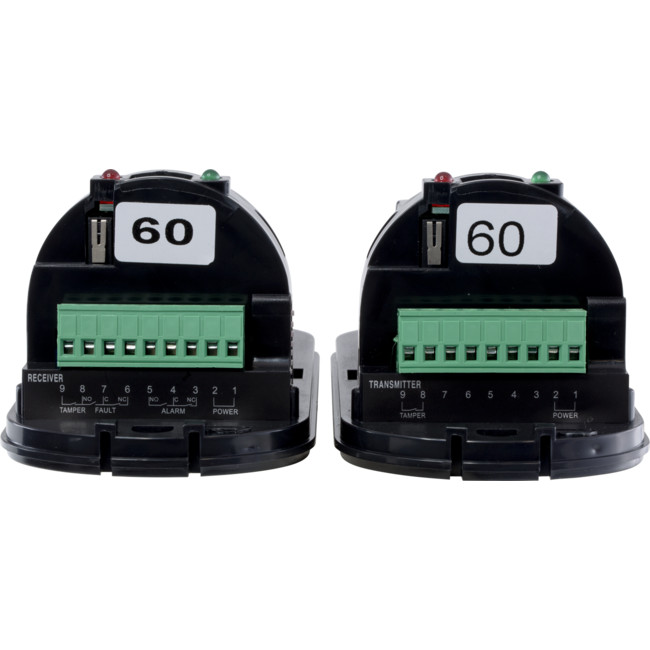

- Tamper, fault and alarm contact outputs
- Powerful sensor signal transmission with anti-fog design for the sensors.
- Adopt coaxial aspherical dual optical focusing lens.
- Digital display BUS address, signal strength and working frequency.
- Blocking time adjustment for specific target movement rate detection.
- Protection range up to 90-180m (Indoor)/ 30-60m (Outdoor)
- Comes with post mounting kit(Diameter 25 to 40mm approx): Screws, mounting plate and mounting saddle.
Specifications
| Model | DBPC946B |
| Alert Distance Outdoor | 60m |
| Alert Distance Indoor | 180m |
| Number Of Beams | 2 |
| Detection Mode | 2 Beams blocked simultaneous |
| Optical Source | Infrared digital pulse beam |
| Response Time | 50-240ms (Adjustable without degree) |
| Power Supply | DC12-24V 15W |
| Alarm Output | Relay contact output NO. NC contact rating AC/DC 30V30mA Max |
| Trouble Output | Relay contact output NC contact rating AC/DC 30V 30mA Max |
| Tamper Output | Relay contact output NC contact rating DC24V 0.5A Max |
| Operation Temperature | −25°C-55°C |
| Operation Humidity | 5%-95% |

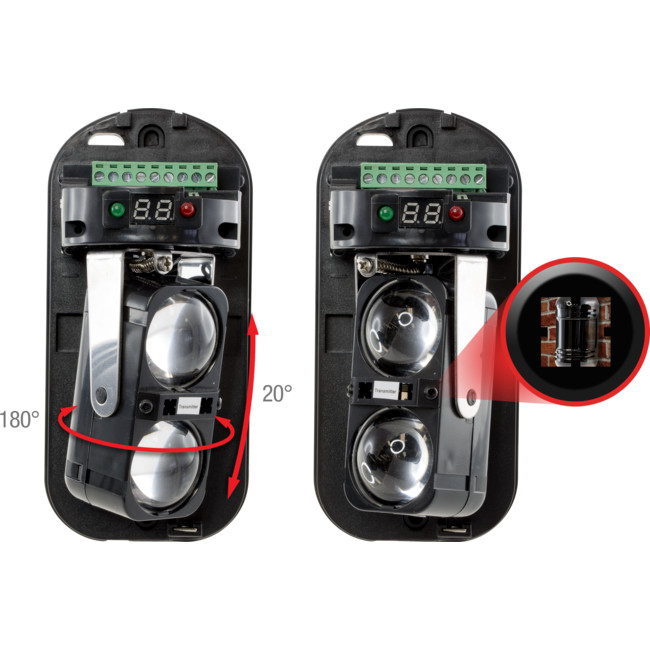

| Optical axis(Horizontal) | 180°(Default position±90°) |
| Optical axis (Vertical) | 20°(Default position±10°) |
| Material | P C resin |
| Net Weight | 430g (Receiver+ Transmitter) |
| Gross Weight | 790g |
