Description
MINUTE MECH TIMER 2 WIRE
LIGHT SWITCH
CABAC HNS410TM
{tab Features}

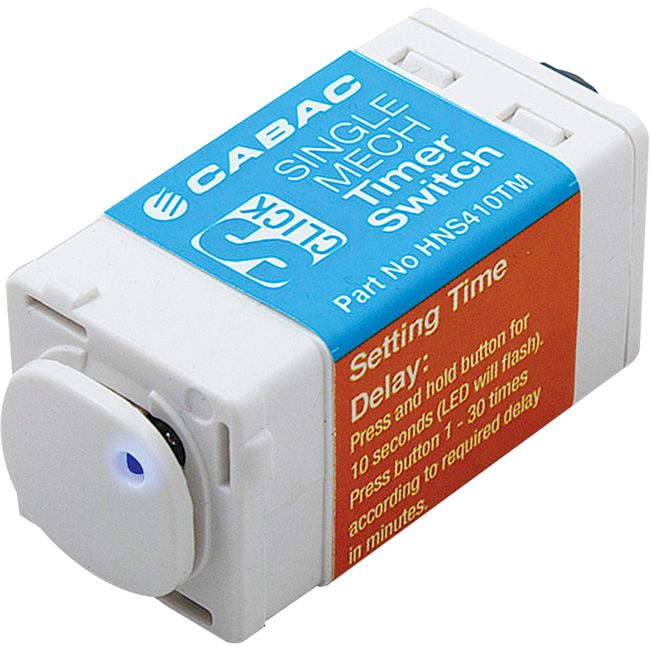

Single Mech Timer Switch (2 Wire 1.7Amp Light Switch)
The new S-Click Mech Timer Switch is a unique 2 in 1 energy-saving light switch that can be easily retrofitted tomost installed lights. Use as a simple on/off switch or set as a timer switch. With a simple tap on the switch, you can program to turn any light off when you want it to, saving you energy, money and inconvenience.
Easy To use and set:
- Tap on Tap off
- Set as a timer switch up to 4 hours
- Push button for 2 seconds to use as normal on/off switch to keep light on (past timeout) then tap off anytime
Applications
Walk-in wardrobes, cellars, toilets/bathrooms, garages,hallways, kitchen pantry and where kids or the public frequent areas, when there is a good chance that lights willbe left on.
Single Mech Timer Switch Features
- Unique 2 in 1 energy-saving light switch that can be easily retrofitted to most installed lights
- Supports Timer and No Timer modes of operation
- Blue LED indicates device status
- User programmable time-out period
- Programmable in 1 minute increments from 1 to 30 minutes
- Cancellation of the timer possible during operation
- Quick LED flashing within 10 seconds of time out provides expiry warning
- Compatible with HPM & Clipsal style wall plates
IMPORTANT: The Single Mech Timer Switch is NOT to be used with fans. It is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electricalcontractor or similarly qualified person.
Load Compatibility
| Type | Yes/No |
| Incandescent | Yes |
| Halogen | Yes |
| Fluorescent Tube – Iron Core Ballast – Wire Wound Ballast – Electronic Ballast yes | No No Yes |
| Compact Fluorescent | Yes** |
| Electronic Transformer | Yes |
| LED | Yes** |
| Wirewound Transformer | No |
| Fan Motors | No |
* Electronic ballast only
** Subject to manufactures recommendations, lamps suitablefor electronic switches only
In the box
- 1x Single Mech Timer Switch
- 1x HPM style push button
- 1x Clipsal style push button
- 1x Instruction manual
