RR3 MICRO RADIO REED
WIRELESS SWITCH NESS
NESS 106-091
An ultra low profile wireless reed switch for unobtrusive protection.

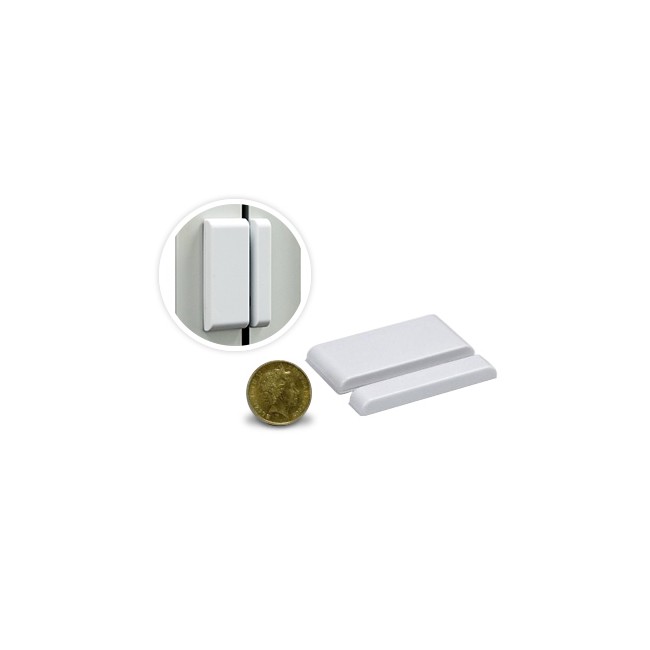

The Ness RR3 Micro Radio Reed Switch is a battery operated radio transmitter with internal reed switch.
The ultra low profile body of the reed switch and supplied magnet allows for unobtrusive installation on door and window frames in cases where wired reed switches cannot be used.
- On-board reed switch
- Fully supervised, encrypted signals
- Compatible with all Ness radio receivers
- Lithium battery operation
- Ultra low standby current draw
- Unique Earthing spring for extra range
- Self adhesive pad mount
| OPERATION VOLTAGE | 3V Lithium |
| STANDBY CURRENT DRAW | Typically 4µA |
| SIGNALS TRANSMITTED | 1. Alarm/Restore 2. Low Battery 3. Supervision signal hourly 4. Learn message |
| RADIO SECURITY | Encryption. Supervised operation |
| FREQUENCY | 303.85MHz/868MHz |
| INDICATOR | LED (concealed, visible through front housing) |
| DIMENSIONS (H – W – D) | 60 x 28 x 7 mm |
| WEIGHT | 20g |
