QUANTUM-Q QUAD ELEMENT PIR
NESS
NESS 106-079
{tab Overview}

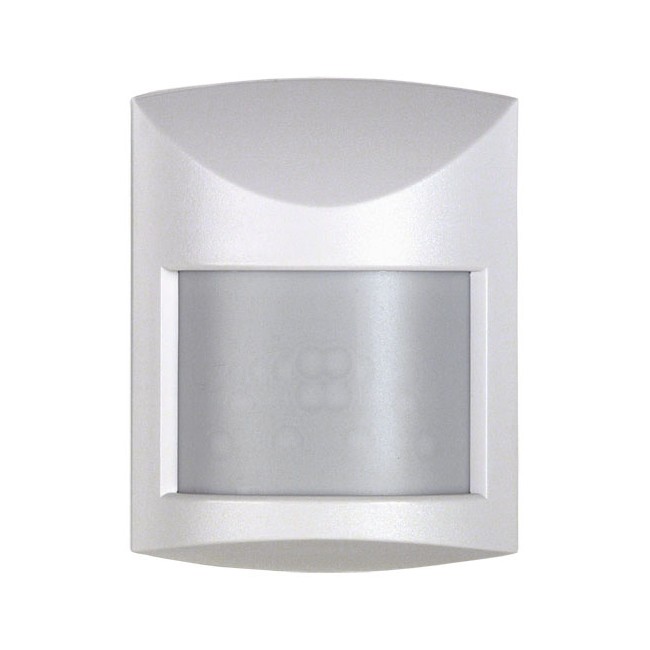

106-079 QUANTUM-Q QUAD ELEMENT PIR – NESS
The Ness Quantum -Q is the most popular PIR ever produced byNess Corporation. Now boasting a QUAD Element Pyro Sensor ithas a better detection rate and higher noise immunity for lower false alarms.
Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 metre wide angle coverage, selectable Pulse Count and Sensitivity adjustmentsproviding the flexibility to use the Quantum-Q in most environments.
Installed in rooms or in hallways, Ness Quantum-Q protectsyou by detecting intruders body temperature using infra-red technology. It offers quality, performance and reliability at the right price.
Very discrete in size, designed for all types of interiors with a detection range of 15m.
{tab Features}
- Quad element pyro sensor
- 15m x 15m wide angle coverage
- Standard and Pet Aware models (Pet aware model refer Ness Part No. 106-259)
- Adjustable Pulse Count
- Adjustable Range
- High R.F. and E.S.D. immunity
- High white light immunity
- High quality patented Fresnel lens
- Front cover tamper protection
- Totally silent solid state relay with high immunity tomagnetic fields
- Optional mounting bracket available Ness Part No. 100-243
- 9~15VDC Operation
{tab Specifications}
| MOUNTING HEIGHT | 2 – 3 m wall or corner |
| COVERAGE | 15m x 15m @ 90° |
| DETECTION ZONES | 20 QUAD element zones |
| RANGE SELECT | Selectable High/Low (15m/12m) |
| PULSE COUNT | Selectable 1–2 or 3–4. |
| VISUAL DISPLAY | Red Alarm LED |
| OPERATING VOLTAGE | 9 – 15 VDC |
| DIMENSIONS (H-W-D) | 85 x 66 x 45 mm |
| ALARM PERIOD | 5 seconds |
| WARM UP PERIOD | 30 seconds |
| CURRENT DRAW | 7mA |
| ALARM OUTPUT | Normally closedrelay, dry contacts. Max. 100mA@24V |
| TAMPER OUTPUT | Normally closeddry contacts |
