Description
LUX RADIO PET AWARE PIR
15MT RANGE MAX
NESS 106-170
106-170 NESS LUX RADIO PET AWARE PIR WITH 15MT RANGE MAX

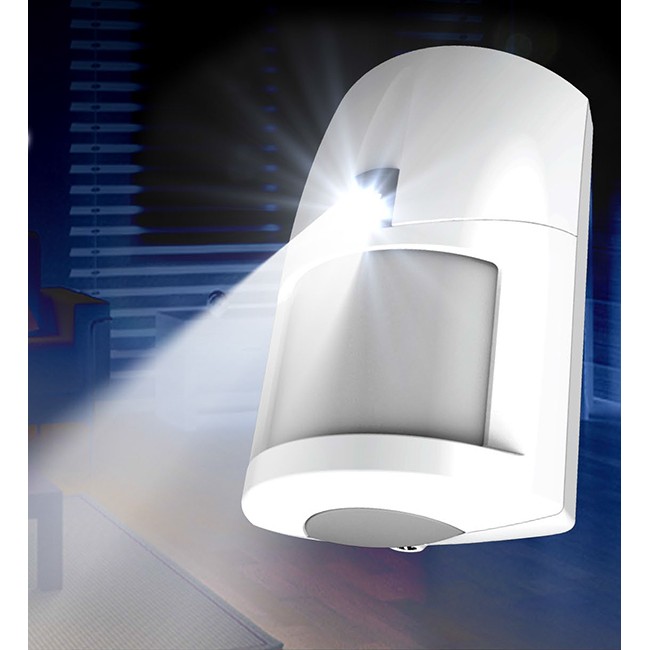

Ness LUX Radio PIR is a unique wireless motion detector with a white LED night-light especially designed for the latest generation of Ness radio control panels.
LUX shares all the features and benefits of the Ness Radio PIR range including 15m x 15m detection coverage, look-down creep zone, high RF immunity, white light immunity, adjustable range, adjustable pulse count and extremely long battery life, up to 10 years. Ceiling mounting is also available with the addition of a 106-169
For safety and convenience, LUX’s night-light function provides a motion-activated cone of light to help you find your way at night. The night-light remains lit as long as itdetects motion and stays on for an extra 10 seconds after motion has stopped.
LUX PET AWARE model with unique Opposing Fields lens technology has a superior ability to discriminate between household pets and unwanted human intruders allowing you to secure your home with your pets indoors.
Features:
- 15m x 15m wide angle coverage
- Look down ‘Creep Zone’
- White LED motion activated night-light
- Adjustable Pulse Count
- Adjustable Range
- High R.F. and E.S.D. immunity
- High white light immunity
- SAWR stabilised radio transmitter
- Capsule design with sealed electronics
- Front cover tamper protection
- Long life Lithium batteries supplied
- Low battery warning signal
- Hourly Supervision radio signals
- Includes wall mounting bracket
- Optional ceiling bracket available
Specs:
| DIMENSIONS | 112(h) x 72(w) x 48(d) mm |
| MOUNTING HEIGHT | 2.1m – 2.4m |
| COVERAGE | Up to 15m x 15m @ 90° |
| DETECTOR ZONES | 20 dual element zones |
| PULSE COUNT | Selectable 1–2 or 3–4 |
| RANGE | Selectable High/Low. 15m max./12m max. |
| SENSOR | Dual element pyroelectric |
| ALARM INDICATION | Blue alarm LED |
| NIGHT-LIGHT | White LED with adjustable threshold, Dark/Dim Light |
| ALARM PERIOD | 5 seconds |
| OPERATING VOLTAGE | 3V DC |
| BATTERY | 2 x CR123A Lithium |
| QUIESCENT CURRENT | < 14µA |
| RADIO FREQUENCY | 304MHz / 868MHz depending on region |
| TRANSMIT POWER | 100µW |
