Description
D8X PANEL WITH SATURN KEYPAD
WHITE NESS
NESS D8XSATW
{tab Overview}

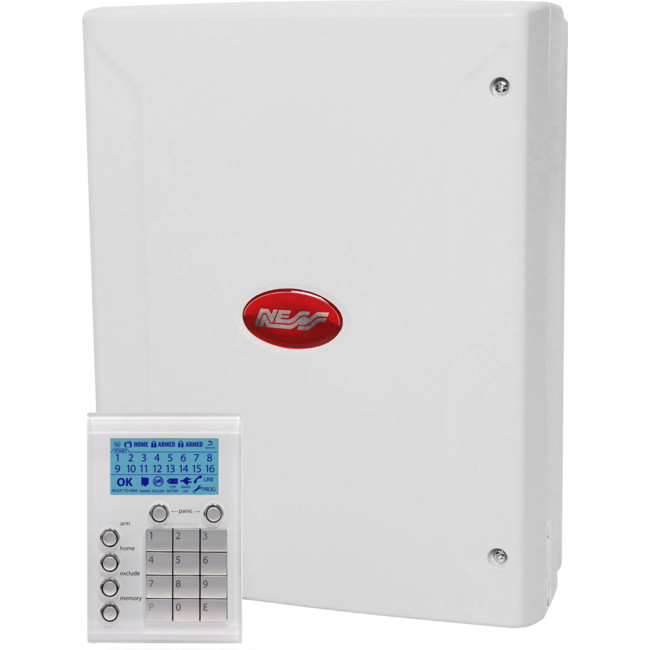

D8X CONTROL PANEL WITH WHITE SATURN KEYPAD
Ness D8X Panel with the White Saturn Keypad provides boththe user and the installer with unrivaled ease of use. Its self-explanatory operation guides provide you with plain English displays and intuitive operation.
Ness Saturn Keypad makes it easy to view your entire system. Get prompts for arming/disarming, home automation features, emergency alarms and much more.
Saturn’s elegant design adds a distinctive look and feel of luxury to your alarm system.
{tab Features}
D8X Panel
- 8 alarm zones.
- Supports up to 3 keypads (Navigator, Saturn or LCD)
- 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
- Optional Ness Radio Interface for fully integrated wireless security.
- 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
- Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
- Real Time Clock with AutoTime features – auto arm/disarm, auto aux outputs, time based user control.
- Home Mode allows partial arming, (eg, perimeter security overnight).
- Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.
- Temporary Day Zones allows easy enabling/disabling ofDay Mode.
- Keypad Panic & Duress feature.
- Two button arming feature.
- Fire Alarm feature with different siren tones.
- Highly flexible zone to output mapping.
- Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor™ vibration sensors.
- Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
- Siren chirp and strobe flash on arming with radio key.
- Quiet chirps option on arm/disarm by radio key.
- True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
- 4 programmable auxiliary outputs.
- Enhanced serial data input/output via RS232.
- Automatic reset fuses.
- 30 event memory can be reviewed by keypad or 80 eventmemory when using the Ness Navigator keypad or Ness-Comms software.
- Standard defaults to suit most applications.
- Easy programming by keypad or NessComms™ software.
- All programming data is permanently stored in a non-volatile memory.
- All inputs and outputs are heavily protected against lightning and high voltage supply transients.
INTERNET READY
- Supports mobile control using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.
C-BUS SUPPORT
- Ness MiniCentral option provides support for up to 255individual C-Bus lights or outputs. Includes full dimming, On/Off and toggle commands with true 2 way communications onthe C-Bus network.
DIALLER
- Full remote upload/download by PC and modem using Ness-Comms™ software.
- View system status and arm/disarm using NessComms™.
- Remote control of outputs via telephone.
- Contact ID Format – Two 14 digit phone numbers plus one "follow me" number.
- Audible Voice format feature.
- Phone line monitoring (activates output).
- Dialler ‘Listen in’ option for installers.
- Auto Test calls.
- Pulse or DTMF dialling with true dial tone detection.
Saturn keypad
- Proving that alarm keypads can be beautiful as well asfunctional.
- Saturn’s elegant design has a distinctive look and feel of luxury with a glossy glass-look fascia and satin finish tactile buttons making it a pleasure to see and use.
- The high contrast icon LCD display has gentle white backlighting which switches to red to indicate alarm memory.
- The LCD brightness, key backlighting and beep volume are all user adjustable to suit individual preferences.
- Saturn keypad is partially recessed to present an extremely low profile with an optional surface mount housingis available for installing on solid walls.
- Available in White, Black and Ocean Mist.
{tab Specs}
BOX DIMENSIONS (W – H – D) | 235 x 300 x 90 mm |
PLUG PACK | 240v AC, output 17v AC @ 1.4A |
POWER SUPPLY | 13.8v DC @ 800mA |
QUIESCENT CURRENT DRAW | 80mA with 1 keypad |
OPERATING VOLTAGE | 9.5v – 14v DC |
RECHARGEABLE BATTERY | 12 volt 7.0 Amp/hour Sealed lead Acid |
BATTERY CHARGING CURRENT | 350mA maximum, current limited |
DYNAMIC BATTERY TEST | Backup battery is tested under load, hourly and on arming |
FUSES | 2 Amp auto resetting Siren output & Reset output. 500mA auto resetting 12 volt auxiliary outputs. 200 mA auto resetting Strobe output |
ZONE INPUTS | 8 zone inputs. 2 x 24hr tamper inputs |
END OF LINE RESISTOR | Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k) |
MAXIMUM KEYPADS | 3 |
INTEGRATED RADIO OPTIONS | Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys. Up to 8 radio zones |
SERIAL HEADER | Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data |
INTEGRATED ACCESS CONTROL | Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers |
SIREN OUTPUT | On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers |
STROBE OUTPUT | 12v DC timed output. Maximum 2 x 1 Watt strobe lights |
RESET OUTPUT | 12v DC timed output. Max. 3 x 12v piezo screamers |
EQUIPMENT POWER OUTPUT | 13.8v DC output for powering detectors and other equipment. Maximum 500mA |
AUX READER | Multi-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC |
{tab Supplied With}
- White Saturn Keypad
- D8X panel
- Plug Pack
- Battery
- Telephone Lead
- Housing
- Manuals
