D8XD DELUXE PANEL & NOISE KIT

$ 399.00 inc GST

The kit includes all the basics minus the PIR detectors. It’s ideal for people with existing PIR detectors that they are not replacing or for those that need specific PIR detectors

1 in stock (can be backordered)

Categories: , , SKU: 01301066

Description

D8XD DELUXE PANEL & NOISE KIT
LCD KEYPAD NESS

NESS K-6311B

NESS D8x PANEL & NOISE KIT (LCD KEYPAD)

  • Flexible 8 Zone control panel & Dialler.
  • The Ness D8x is the most versatile Ness 8 zone control panel ever!
  • The D8x is available in Led keypad or LCD keypad models to suit any preference.supplied with keypad, plug pack, battery, telephone lead, housing and manuals.

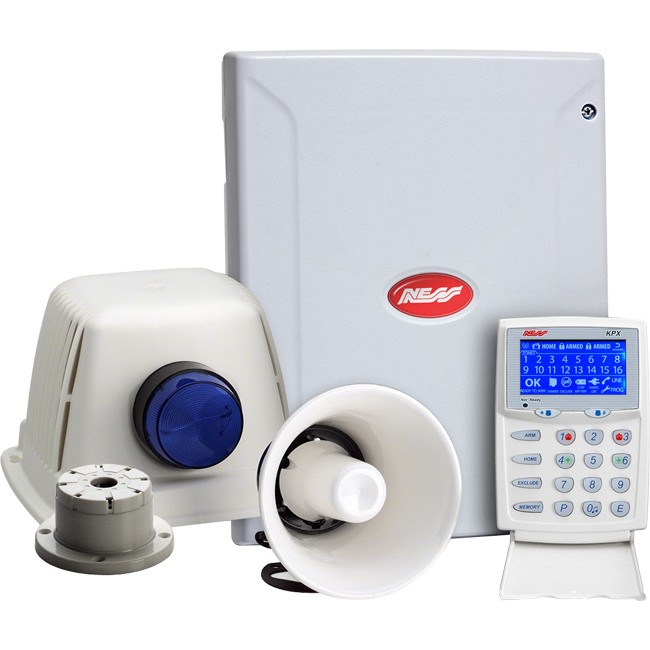

  • Panel & Siren Kits include the control panel complete with keypad, plugpack, battery, plus external horn speaker, siren cover, strobe light and internal screamer.
  • Choose your detectors from the Ness Quantum range.
  • Easy and convenient to order control panel and sirenkits.
  • Pre-packed for shipping.

FEATURES:

  • 8 Zones + Tamper
  • Onboard 3 Door Access Controller
  • Auto-Time Control via onboard Real-Time Clock
  • Optional Radio Interface for integrated wireless security
  • Onboard Vibration Sensor Analyser
  • Multiple programmable EOL resistor values from 0k to 22k
  • 4 programmable auxiliary outputs
  • Direct Connect or Dial-up programming via NessComms™
  • Contact ID and VOICE reporting dialler
  • Remote control of outputs via telephone
  • Up to 56 User Codes (PIN, RADIO KEY or PROX CARD)

SPECIFICATIONS:

  • Box dimensions: 235w x 300h x 90d mm.
  • Plug pack 240V Ac, output 17V [email protected].
  • Power supply 13.8V Dc @ 800mA.
  • Quiescent current draw 80mA with 1 keypad.
  • Operating voltage 9.5V– 14V Dc.
  • Rechargeable battery 12 volt 7.0 Amp/hour sealed lead Acid.
  • Battery charging current 350mA maximum, current limited.
  • Dynamic battery test backup battery is tested under load, hourly and on arming.
  • Fuses:
  1. 2 Amp auto resetting / siren output & reset output.
  2. 500mA auto resetting / 12 volt auxiliary outputs.
  3. 200 mA auto resetting / strobe output.
  • Zone inputs: 8 2 x 24hr tamper inputs.
  • End of line resistor choice of 12 programmable values including N/c. Default 2200 Ohms (2.2k)
  • Maximum keypads: 3.
  • Radio Header multi-pin connector for the Ness radio Interface.
  • Serial Header serial data port for direct connect programming using Nesscomms™ software. Also 2 way serial data (V5.6+)
  • Reader Header: multi-pin port for connecting up to 3 Ness proximity access card readers via 106-012 Weigand Interface.
  • Siren output: on board siren driver with timed output maximum 3 x 8 Ohm horn speakers.
  • Strobe output: 12V Dc timed output. maximum 2 x 1 Wattstrobe lights.
  • Reset output: 12V Dc timed output. max. 3 x 12V piezo screamers.
  • Equipment power output: 13.8V Dc output for powering detectors and other equip-ment. maximum 500mA.
  • AuX Header: multi-pin connector provides outputs Aux1,Aux2, Aux3, Aux4, 12V Dc.









Additional information

Weight 5.9110 kg
