Description
WIRELESS KEYPAD SUIT AX PRO
DS-PK1-E-WB
HIKVISION 114-251
{tab Overview}

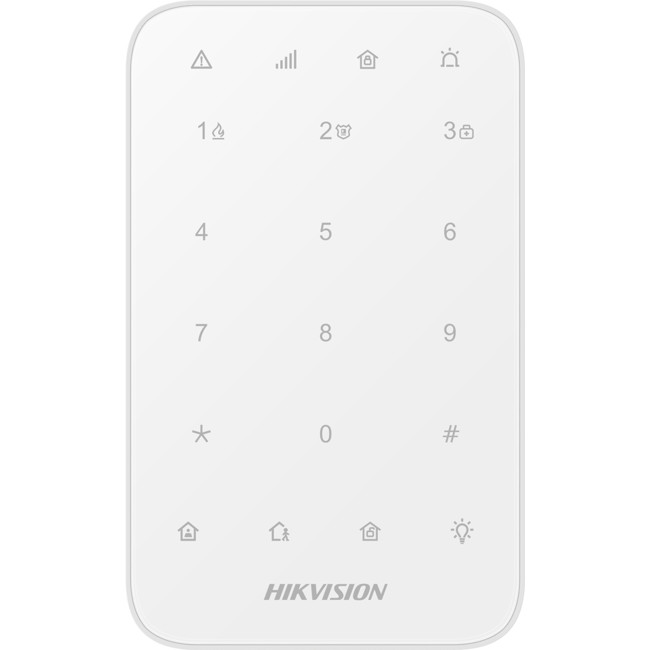

DS-PK1-E-WB WIRELESS KEYPAD SUIT AX PRO
The DS-PK1-E-WB series wireless keypad can connect to AX PRO for alarm control and operation.
It can also notice alarm by indicator and buzzer.
Features:
- 433 MHz two-way wireless communication
- AES-128 encryption
- Stay/away arming, disarming, alarm clearing for specified area or all areas
- LED indicates the programmed area
- One-Push fire alarm, panic alarm, and medical alarm. Silent/Audible alarm selectable. etc.
- Output control
- Full touch key design with LED backlight
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Easy replaceable battery
- Frequency hopping against jamming for reliable transmission
{tab Specs}
| Model | DS-PK1-E-WB | |
| RF | Frequency | 433 MHz |
| Modulation | 2GFSK | |
| Distance | 900m (open area) | |
| Interface &component | Tamper switch | Supported, front and rear panel tamper-proof |
| Power switch | Power on/off | |
| Buzzer | Supported | |
| Indicator | 4: fault (orange), enrollment/signal (red/green), arm(blue), disarm(green) and alarm (red) | |
| Backlight | white | |
| Key | Number key: 0 to 9 Function key: *, #, stay arming, away arming, disarming, and output | |
| Application & protocol | Protocol | Tri-X, two-way communication |
| Electrical & battery | Power Consumption | Quiescent current: 180 uA Max current: 251mA Voltage: 1.5 VDC |
| Battery type | Four AA batteries | |
| Battery life span | Standby time more than two years | |
| Others | Operation humidity | 10% to 90% (No condensing) |
| Operation temperature | -10 °C to +55 °C (-4 °F to +122 °F) | |
| Color | White | |
| Installation | Screw mounting | |
| Dimension (W x H x D) | 140 (5.50") x 86 (3.38") x 22 (0.87") mm | |
| Weight | Without batteries: 151 g (5.33 oz), and 23 g (0.81 oz)each battery | |
| Approvals | FCC | Supported |
| CE/CB | Supported | |
| RCM | Supported | |
| Rohs/Reach/WEEE | Supported |
