Description

INDOOR ACCESS CONTROL KEYPAD
REPLACES PSK16

PROVE PSK2

{tab Overview}

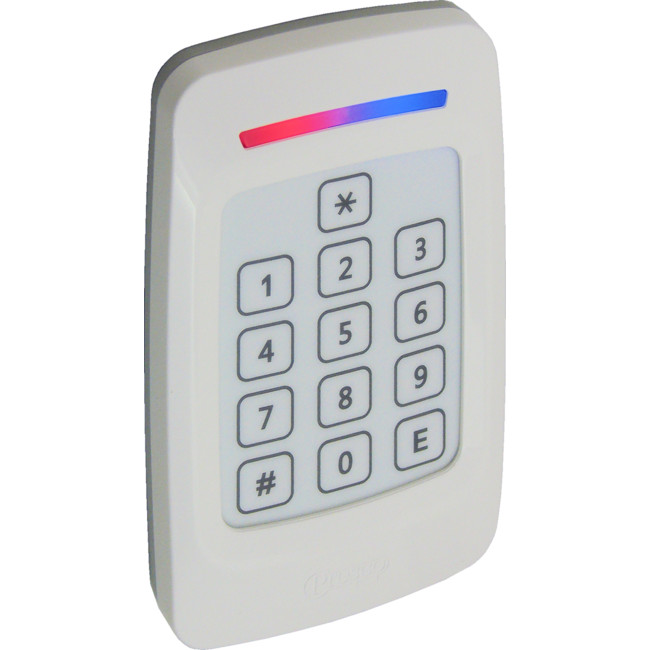

PSK16 STANDARD PRESCO™ KEYPAD

The PSK16 (Presco™ Remote Encoder) is designed to be used with the PAC series
door access controllers in areas where keypad security is desired, but weather and
vandal resistance is not a priority.
When a PSK16 is coupled with any PAC series door access controller you get the
benefits of a secure door access control solution with all of the features of the
Presco™ system.

{tab Features}

• Outputs Presco™ format data
• Compatible with Presco™
• PAC access controllers and all other Presco™ decoders,the entire system uses low cost non-shielded cable and keypads can be up to 1 kilometer from the door controller (power supply and cable dependent)
• Over 19,000,000 possible code combinations
• Audible and visual confirmation of all actions
• Long lasting tactile membrane with raised buttons
• Location pip on 5 button for visually impaired users
• Designed and manufactured in Australia
• 36 month manufacturer’s warranty

{tab Specifications}

Operating Voltage: 7 to 15 Volts D.C. current limited to 23mA (supplied by Presco™ decoder)
Operating Current: 23 mA. Max 0.3mA in standby
Operating Temperature: 0°C to 70°C
Dimensions: 126mm x 76mm x 17mm
Weight: 100g
