Description

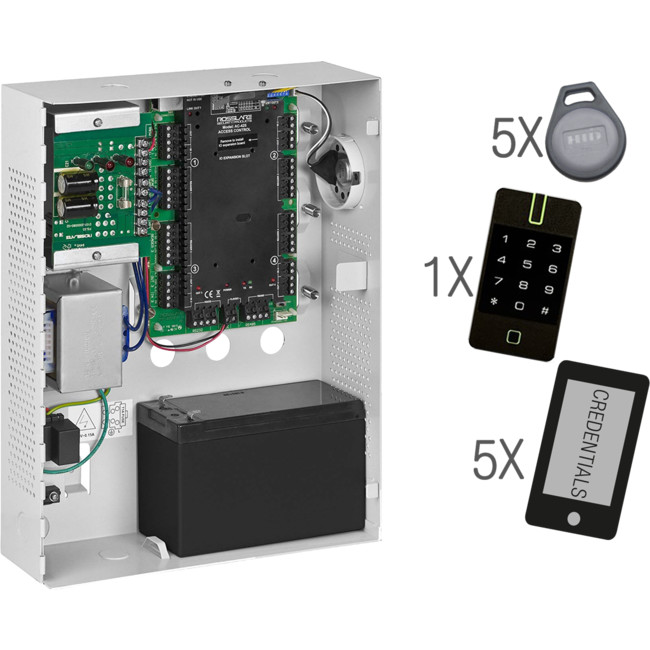

4 DOOR ACCESS CONTROL KIT
WITH 5 TAGS & 5 CREDENTIALS
ROSSLARE AC425IPKIT
MAIN UNIT | AC-425 MULTI-ADVANCED SCALABLE NETWORKED ACCESS CONTROLLER
AC-425 is suitable for applications with up to 30,000 users across a modular 8184 doors, allowing maximum flexibility for securing a growing enterprise.
Each AC-425 Access Control Unit (ACU) supports four readers (In/Out) of various formats including standard Wiegand 26-bit. Installations can also have one reader per door.
The AC-425 is ready for installation with a mountable & lockable metal enclosure integrated with transformer, power supply/charger, sounder and control board.
Using onboard RS-232, Ethernet TCP/IP, multiple local or remote site door sub-networks can connect to the AxTraxNG Client/Server PC software running on Microsoft® Windows® 98/ME & NT/2000/XP/7 operating systems.
FEATURES
- 20,000, FIFO, history event log, when offline
- With MD-IO84 IO expansion, additional 8 inputs, 4 outputs
- With MD-D04 4-Door expansion, 4 readers with 4 inputs, 4outputs
- Onboard TCP/IP networking (AC-425IP version)
- Real-time clock keeps time for up to 2 weeks without power. No batteries to replace
- Optical tamper sensor for case and wall tamper detection
KEYPAD| U-Prox IP 550
Universal access control panel. A full-featured device ina plastic housing with built-in card reader, keyboard, and modern means of communication – Bluetooth (for a configuration in stand-alone mode) and ISM band radio (for work as part of U-Prox IP’s wireless locks system).
Can maintain an one-sided door (entrance by the ID, exit by the RTE button) or an double-sided door (entrance and exit by ID).
Any smartphone can be used as an identifier.
The device is designed to provide maximum autonomy – it continues to perform loaded access rules without communication with the server.
Specifications:
- Operating modes:
- Stand-alone – configuration over Bluetooth
- Network – as a part of U-Prox IP, working over radio interface ISM band 868.0-868.6 MHz.
The transportlayer provided by U-Prox IC L, U-Prox HE, U-Prox HW
- Identification:
- Built-in keypad
- Built-in RF ID reader (distance – up to 50 mm, standard – ASK, FSK, ASK+FSK )
- Bluetooth Low Energy (BLE) and smartphone as an ID
- Connecting an external reader (U-Prox series)
- Inputs: DC – Door contact, RTE – request to exit button, EIN – tamper
- Two relays (C NO NC) 24V 3?, alarm out – 24 V, 60 mA
- In stand-alone mode, the entire configuration is performed via Bluetooth (BLE – bluetooth low energy) using smartphone
- In ACS mode, the entire configuration is performed via acomputer network using the ACS software.
- Real time clock
- Non-volatile memory
- Stand-alone: IDs– 252 (and 1 – admin code, 1engineer code ), events – 4096,
“day”and “night” modes switching by schedule and manually - Work in ACS: IDs – 3000, events – 6000
- Stand-alone: IDs– 252 (and 1 – admin code, 1engineer code ), events – 4096,
- Dimensions: 119,4 ? 65,4 ? 24 mm
- Weight: 0,2 kg
KEYFOB| HID 1346
The ProxKey III is a proximity card keyfob for access control offering HID proximity technology in a convenient, pocket size device. The proximity card keyfob easily attaches to a key ring, badge clip or lanyard. The ProxKey III is built to withstand harsh operating environments or handling.
The ProxKey III is suited for use in access control applications where a Photo ID is not required.
Key Features of the ProxKey III:
- Small enough to fit on a key ring.
- Universal compatibility with HID proximity card readers.
- Provides an external number for easy identification and control Can be
placed on a key ring for convenient entry. - Supports formats up to 85 bits, with over 137 billion codes.
- Using HID’s ProxProgrammer®, card vendors can ship proximity keyfobs, custom programmed to
their customers’ requirements, from their own inventory. Enables smaller order
quantities and overnight delivery. (Check with vendor for availability.) - Lifetime warranty.
