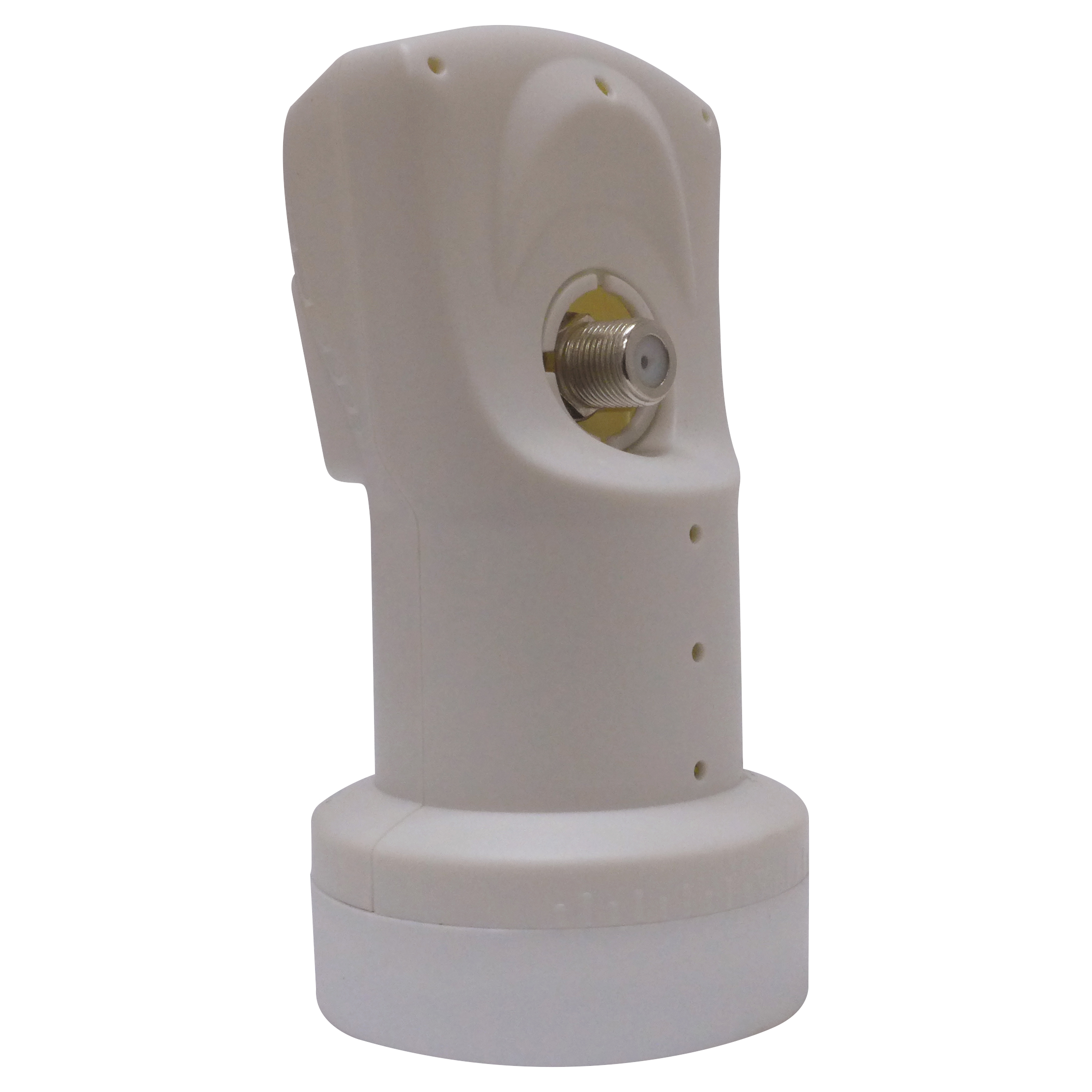

This vast single output lnb is a single matchmaster single-output (1) dual polarity ( horizontal /vertical ) LNBF that receives the signal for vast tv and fox great replacement item, when installed they need to be tilted either left of right to get a maximum signal.
PLEASE NOTE: DEPENDING ON STOCK AVAILABILITY A SUBSTITUTE MAY BE SENT INSTEAD
Features and Benefits
- 10.7GHz local oscillator with output frequency range 950MHz – 2050MHz
- PLL technology (Phase-Locked Loop) for greater stability
- Low current operation
- VAST TV reception plus Optus 10 and Optus D3 reception
- High gain with low noise
- Flat output response with +/- 1.0dB across 54MHz bandwidth
The LNB
Specifications
Specifications
Reception Frequency 11.70～12.75GHz
Output Frequency 950～2050MHz
L.O. Frequency 10.7GHz
Gain 60dB
Gain Flatness In 54MHz Bandwidth ±1.0dB
Across the Band 11.7～12.75GHz ±2.5dB
Gain Difference(Between V & H Polarity) 3dB maximum
Noise Figure 0.8dB
Image Rejection 40dB minimum
1dB Compression Point 0dBm
3rd Order Modulation(Two Tones) Intercept Point 50dBc minimum
L.O. Stability Room Temperature ±300KHz
Over Temperature ±500KHz
L.O. Phase Noise @ 1KHz Offset -55dBc/Hz maximum
@ 10KHz Offset -80dBc/Hz maximum
@ 100KHz Offset -90dBc/Hz maximum
L.O. Leakage @ Input -50dBm
Output VSWR 2.0:1
Cross-Polar Isolation 25dBm
Polarity Switching Voltage Vertical 11.5~14V
Horizontal 16~19V
DC Current Consumption Input Voltage 110mA
Mobile Interference Suppression -10dBm Output @ Test Fixture Antenna Assemble Stage -40dBm
Operating Temperature -30~+70°C
Reception Frequency 11.70～12.75GHz
Output Frequency 950～2050MHz
L.O. Frequency 10.7GHz
Gain 60dB
Gain Flatness In 54MHz Bandwidth ±1.0dB
Across the Band 11.7～12.75GHz ±2.5dB
Gain Difference(Between V & H Polarity) 3dB maximum
Noise Figure 0.8dB
Image Rejection 40dB minimum
1dB Compression Point 0dBm
3rd Order Modulation(Two Tones) Intercept Point 50dBc minimum
L.O. Stability Room Temperature ±300KHz
Over Temperature ±500KHz
L.O. Phase Noise @ 1KHz Offset -55dBc/Hz maximum
@ 10KHz Offset -80dBc/Hz maximum
@ 100KHz Offset -90dBc/Hz maximum
L.O. Leakage @ Input -50dBm
Output VSWR 2.0:1
Cross-Polar Isolation 25dBm
Polarity Switching Voltage Vertical 11.5~14V
Horizontal 16~19V
DC Current Consumption Input Voltage 110mA
Mobile Interference Suppression -10dBm Output @ Test Fixture Antenna Assemble Stage -40dBm
Operating Temperature -30~+70°C
