Satellite Kit Portable Small – Caravan Camper or Travel

From $ 249.00

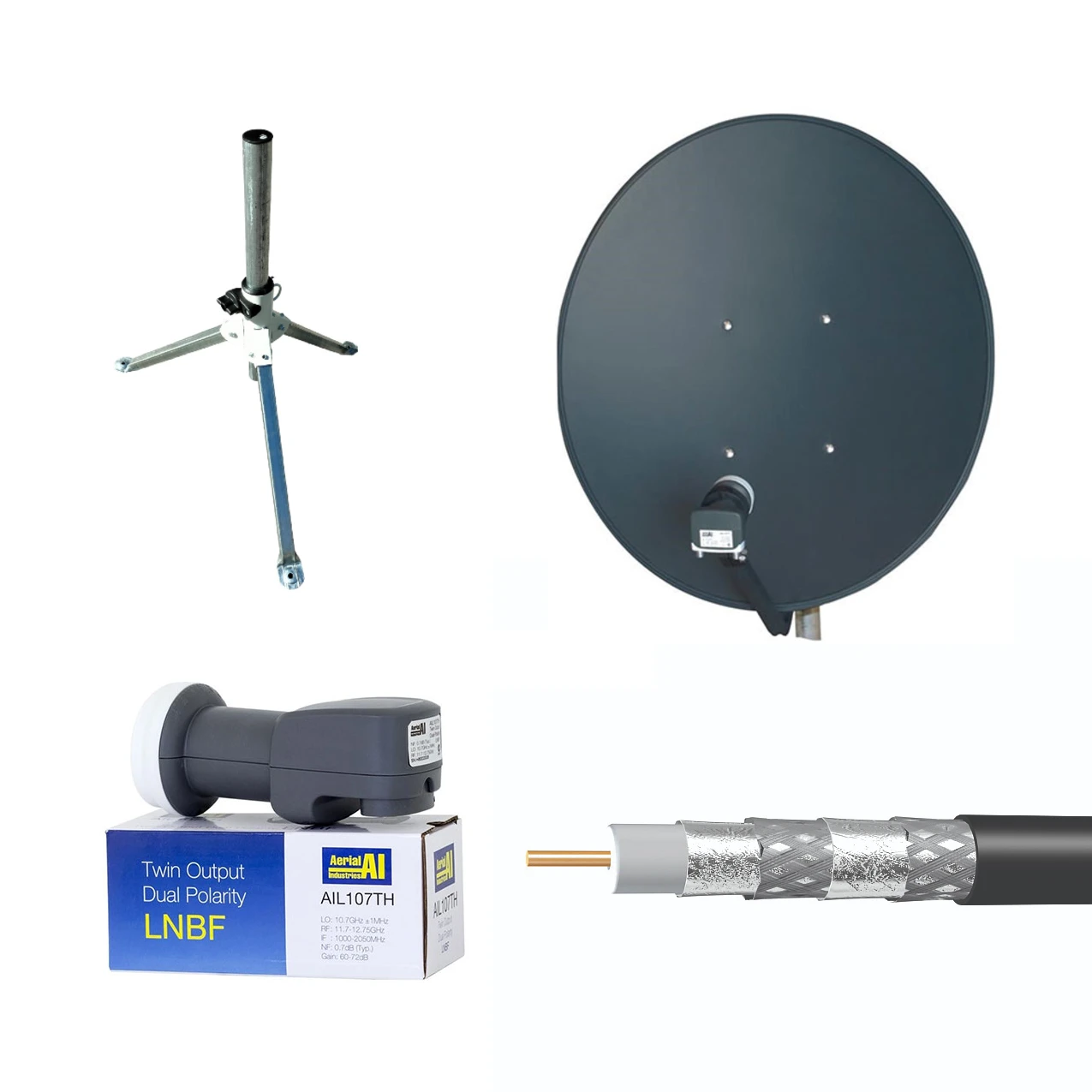

This 4 piece kit is great if you have your own decoder already. What’s in the box?

  • 80cm Quality pressed dish
  • LNB Mounting arm and clamp
  • Dual polarity twin output LNB
  • Heavy-duty quality portable tripod
  • All screws nuts and bits
  • RG6 Quad shield Foxtel-approved cable
  • 1 x f to f (swivel) test lead for alignment
  • TV Wall plate
Cable
Cable to hook up your new gear. Cable is sold by the meter. Please click the plus sign below to add as many meters as you need. This cable will come with the correct ends connected.
Qty:-+
Wall Plate
You may need a wallplate to provide a termination point. Please select from one of the two below, choose between skirting board or flush wall mount (wall plate).
Categories: , , SKU: Satellite Kit Portable Small Tag:

Description

The Hot Item is a portable satellite dish kit designed for caravans and travel, featuring a quality made 80cm diameter dish suitable for the eastern seaboard and inland Australia. This durable kit includes a patented double rolled edge, galvanized steel reflector, and premium hardware, the ruggedized design ensures reliability on the road, making it a perfect solution for staying connected while traveling. Also includes a high gain dual polarity LNB for optimal performance. Choose how many meters of pre-terminated RG6 Quad Cable you require and that will be added to your kit.

The R80P is a single-pack 80cm dish for KU band satellite reception. The R80P is an offset satellite dish made from heavy-duty galvanised steel with a durable polyester powder coat finish. The dishes are suitable for the reception of VAST, Pay TV, and other available KU band satellite services between 10.7 GHz and 12.75 GHz.

  • Single pack 80cm offset KU band satellite reception dish
  • Rolled edges for added strength
  • Gain of 39.7dB at KU band 12.75GHz
  • Compatible with satellite mount diameters 38 to 50mm
  • Made from galvanised steel with a polyester powder coat finish for high durability
  • Azimuth adjustment 0~360° and elevation adjustment 15~75°

For use with your satellite dish, this is a dual output, dual polarity (horizontal/vertical) LNBF that receives the signal for Vast TV and Fox. High Gain Dual Polarity 10.7GHz LO Ku Band LNBs. Higher gain and new ultra-compact design.

  • Outputs 2
  • Input Frequency Range 11.7GHz to 12.75GHz
  • Output Frequency Range 1000MHz to 2050MHz L.O. Frequency 10.7GHz L.O.
  • Accuracy Initial Accuracy (@ 25°C): ±1MHz L.O.
  • Temperature Drift -30oC to +60oC: ±1.5MHz L.O.
  • Phase Noise @ IKHz Offset: -60dBc/Hz @ I0KHz Offset: -80dBc/Hz @ I00KHz Offset: -95dBc/Hz Noise Figure @ 25°C: 0.7dB (typ.)
  • Conversion Gain @ 25°C: 60dB to 72dB
  • Image Rejection 40dB min.
  • Output VSWR 2.0:1 Cross-Pole Isolation 20dB min.
  • Supply Voltage Vertical Polarisation: 10.5V to 14.5V Horizontal Polarisation: 15.5V to 21.0V Current consumption 100mA max. 115mA max.
  • Load Impedance 75Ohm Reflector Type Offset F/D Ratio 0.6 Feedarm
  • Mount 40mm Ø
  • Storage Temperature -30°C to +60°C
  • Output Connector 75Ω F type
  • Gain Flatness 6dBpp (typ.) / entire band 1.5dBpp (typ.) / 27MHz L.O.
  • Spurious -30dBm max.

High quality solid construction with bubble level and adjustable wing nuts also peggable to secure to the ground.

The Vast Satellite Dish Kit comes with pre-terminated RG6 Quad Cable which is for the vast system. This cable will come with the correct ends connected.

Additional information

Weight 23 kg
Dimensions 80 × 80 × 17 cm
