Description

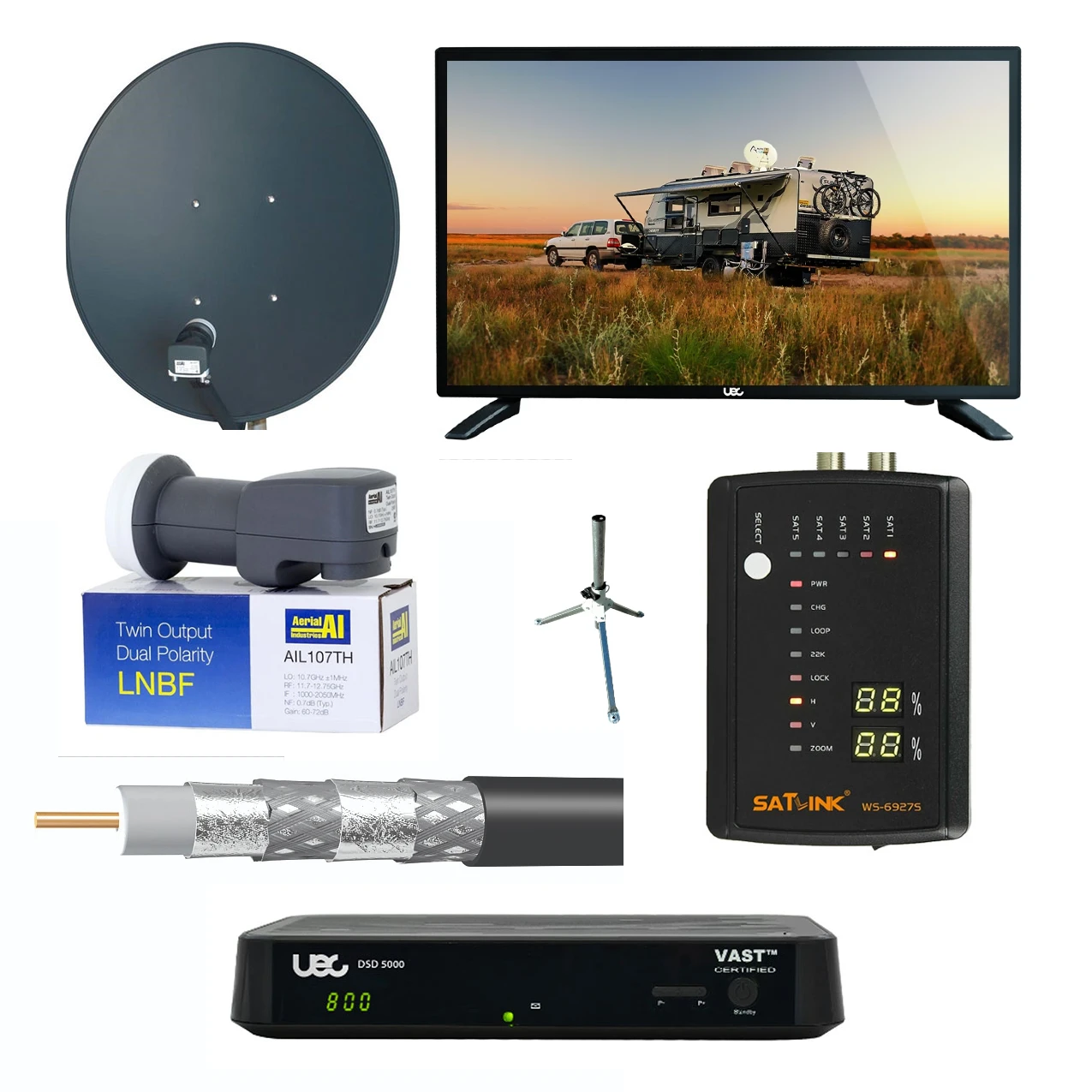

The hot item is a portable satellite dish kit designed for caravans and travel, featuring a quality made 80cm diameter dish suitable for the eastern seaboard and inland Australia. This durable kit includes a patented double rolled edge, galvanized steel reflector, and premium hardware, along with a high gain dual polarity LNB for optimal performance. Essential components like the VAST Satellite Receiver ALTECH DSD 5000 RV Twin Tuner, meters of pre-terminated RG6 Quad Cable, and a Satlink WS-6927 digital satellite finder are also included. This also includes a UEC 24″ smart TV, with its stylish aesthetics, is an ideal addition to any caravan or motorhome. It serves as a portal to a world of entertainment, thanks to its smart, built-in features. Enjoy a variety of platforms such as Netflix, Amazon Prime, Disney, and more. The ruggedized design ensures reliability on the road, making it a perfect solution for staying connected while traveling.

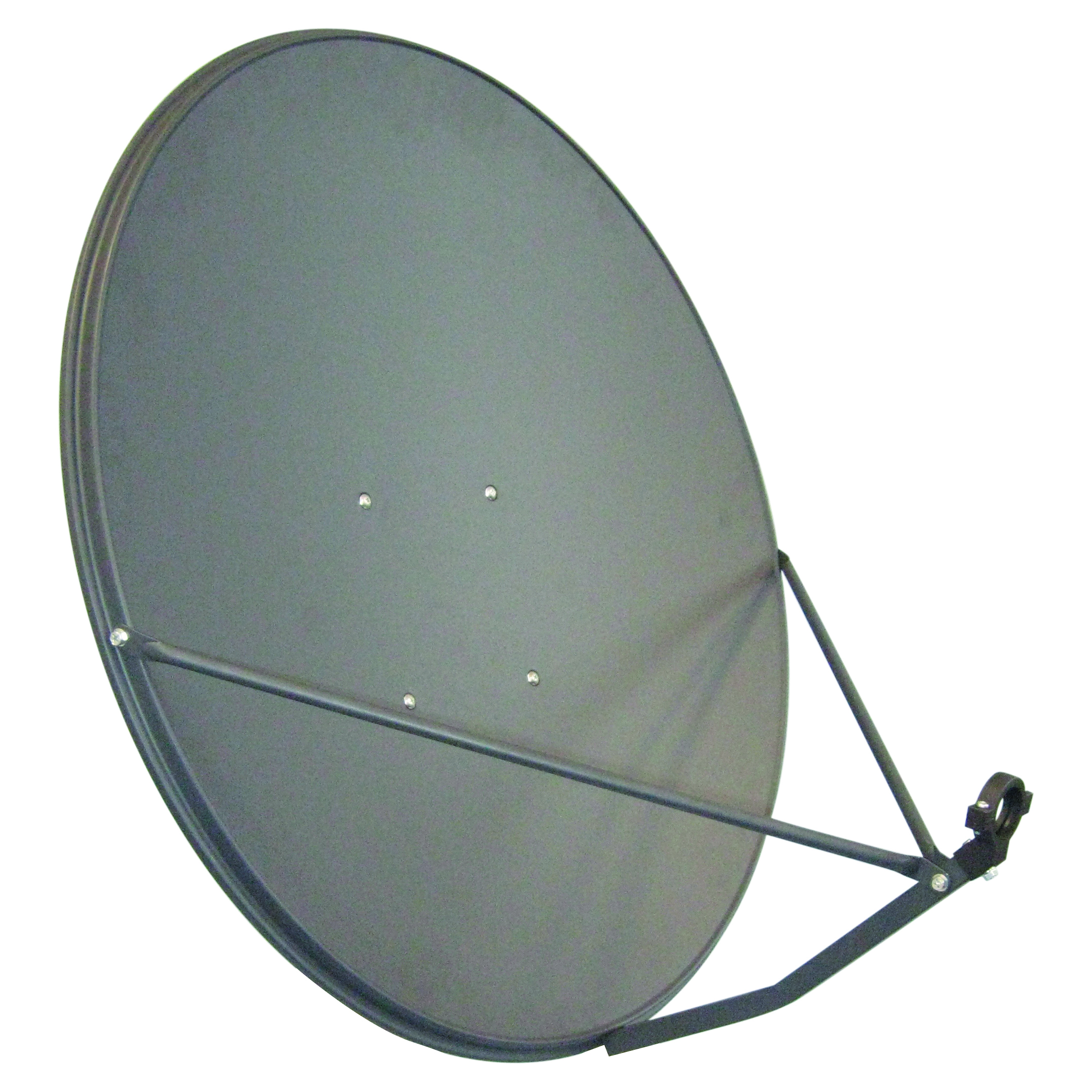

The R80P is a single-pack 80cm dish for KU band satellite reception. The R80P is an offset satellite dish made from heavy-duty galvanised steel with a durable polyester powder coat finish. The dishes are suitable for the reception of VAST, Pay TV, and other available KU band satellite services between 10.7 GHz and 12.75 GHz.
- Single pack 80cm offset KU band satellite reception dish
- Rolled edges for added strength
- Gain of 39.7dB at KU band 12.75GHz
- Compatible with satellite mount diameters 38 to 50mm
- Made from galvanised steel with a polyester powder coat finish for high durability
- Azimuth adjustment 0~360° and elevation adjustment 15~75°

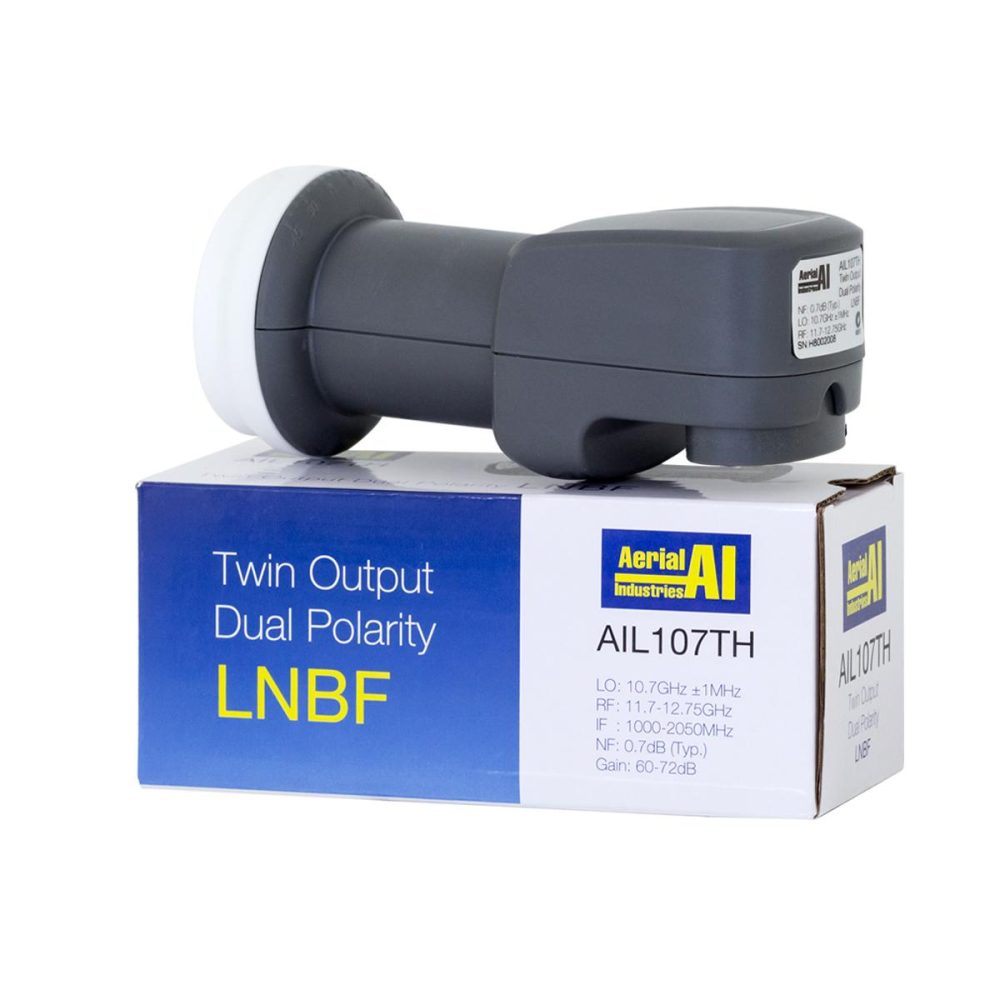

For use with your satellite dish, this is a dual output, dual polarity (horizontal/vertical) LNBF that receives the signal for Vast TV and Fox. High Gain Dual Polarity 10.7GHz LO Ku Band LNBs. Higher gain and new ultra-compact design.
- Outputs 2
- Input Frequency Range 11.7GHz to 12.75GHz
- Output Frequency Range 1000MHz to 2050MHz L.O. Frequency 10.7GHz L.O.
- Accuracy Initial Accuracy (@ 25°C): ±1MHz L.O.
- Temperature Drift -30oC to +60oC: ±1.5MHz L.O.
- Phase Noise @ IKHz Offset: -60dBc/Hz @ I0KHz Offset: -80dBc/Hz @ I00KHz Offset: -95dBc/Hz Noise Figure @ 25°C: 0.7dB (typ.)
- Conversion Gain @ 25°C: 60dB to 72dB
- Image Rejection 40dB min.
- Output VSWR 2.0:1 Cross-Pole Isolation 20dB min.
- Supply Voltage Vertical Polarisation: 10.5V to 14.5V Horizontal Polarisation: 15.5V to 21.0V Current consumption 100mA max. 115mA max.
- Load Impedance 75Ohm Reflector Type Offset F/D Ratio 0.6 Feedarm
- Mount 40mm Ø
- Storage Temperature -30°C to +60°C
- Output Connector 75Ω F type
- Gain Flatness 6dBpp (typ.) / entire band 1.5dBpp (typ.) / 27MHz L.O.
- Spurious -30dBm max.

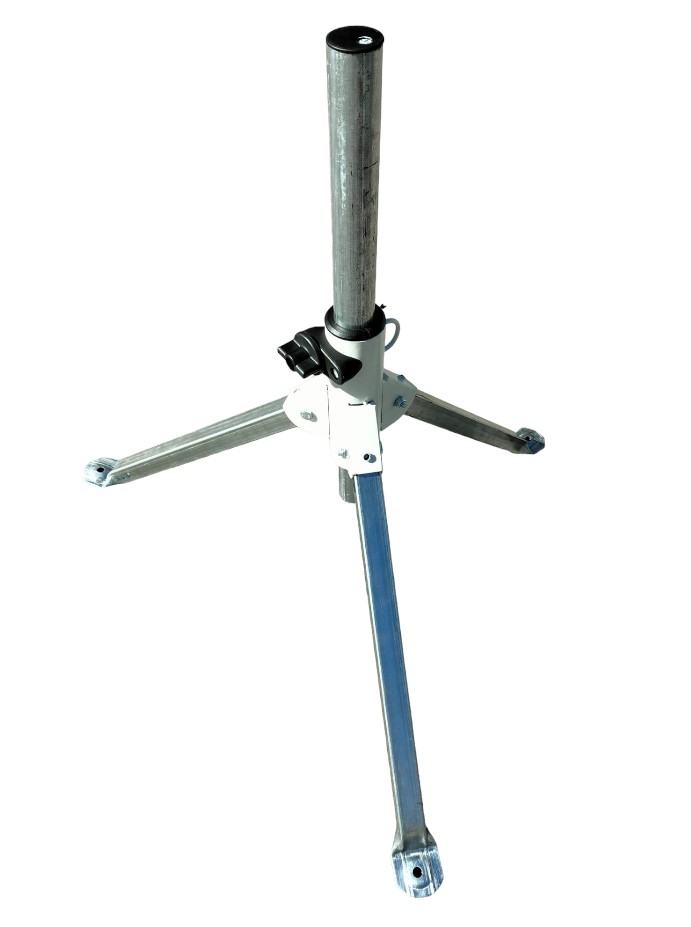

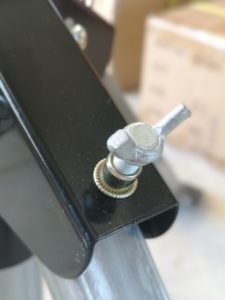

High quality solid construction with bubble level and adjustable wing nuts also peggable to secure to the ground.
1-year Manufacturers warranty with support and solutions. New model with led channel display! the vast service is pretty much Australia-wide, grab this box and get access.

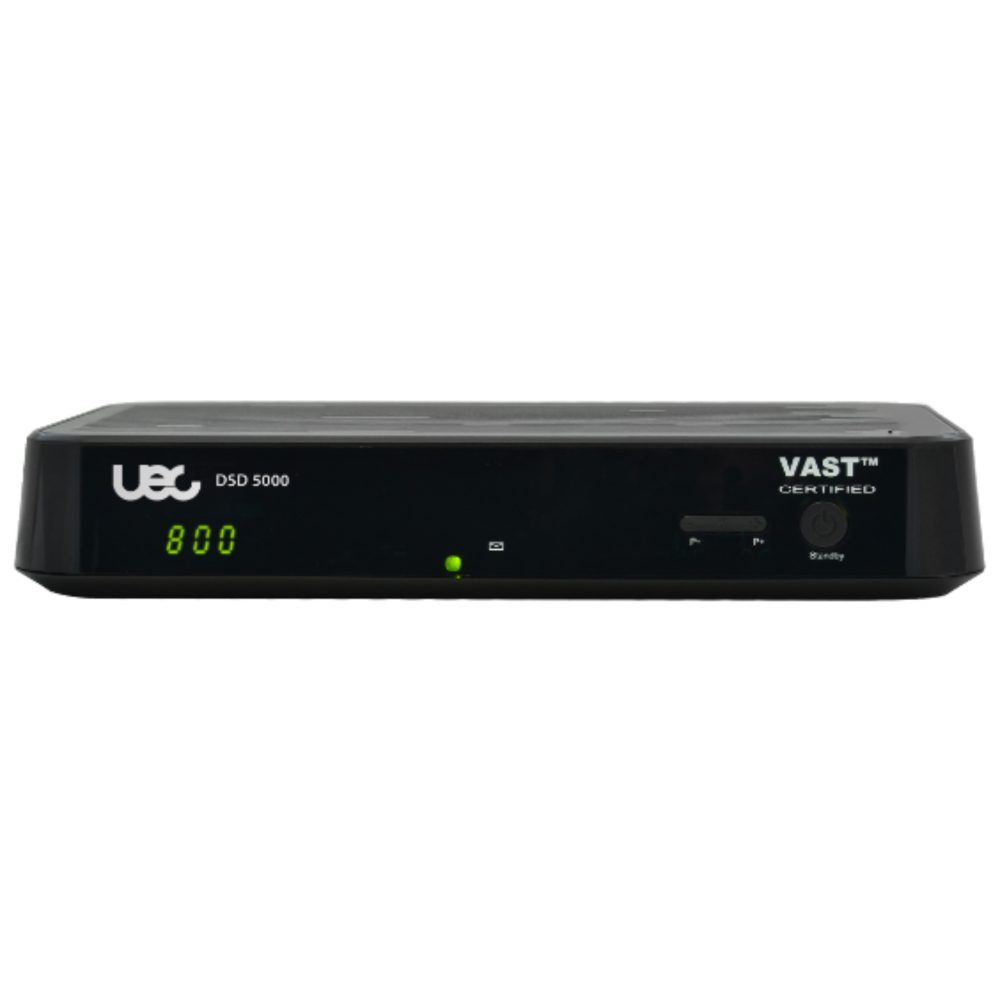

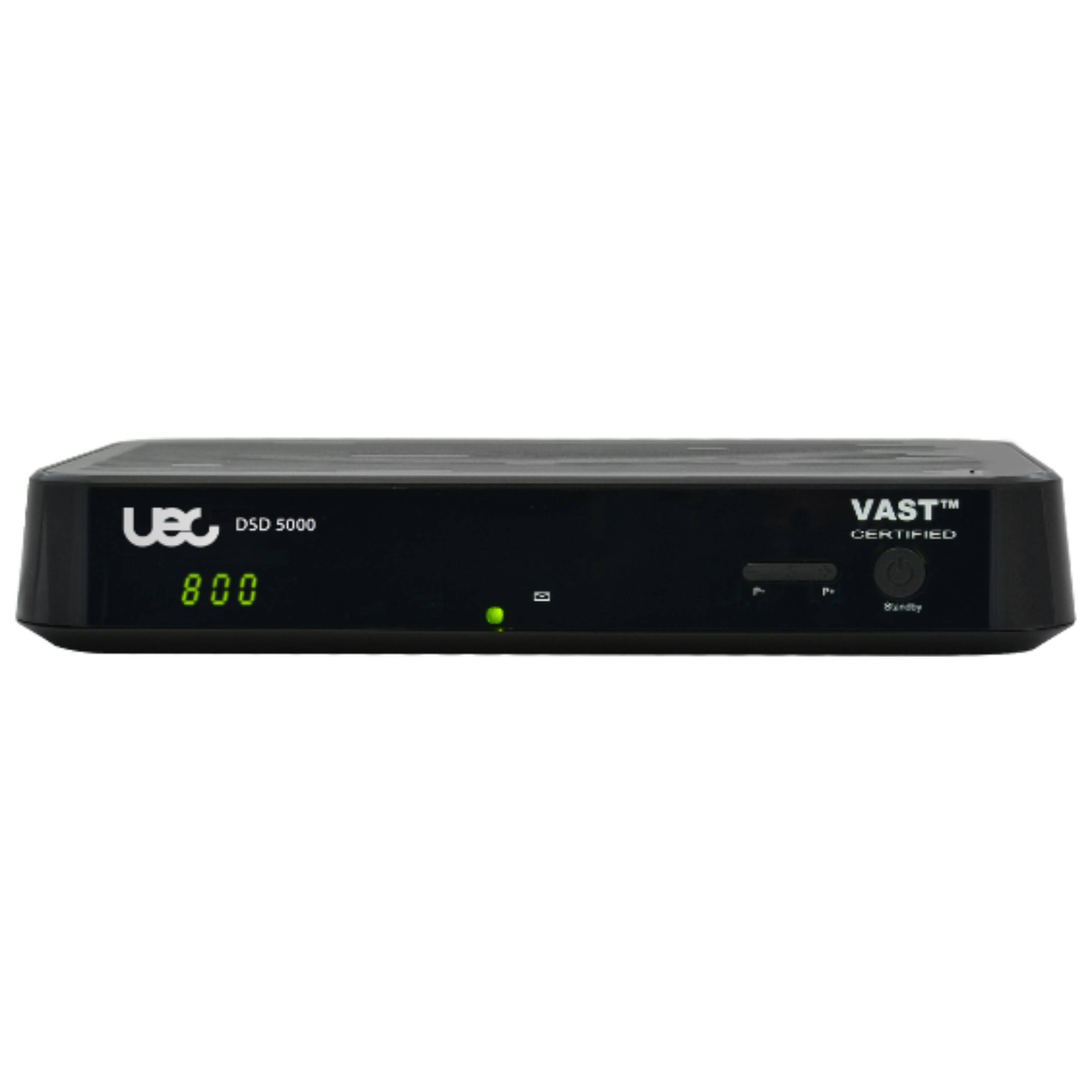

- Altechs DSD 5000 RV Compact – only 225 L x 42 H x 135 D mm, perfect for caravans
- HDMI Cable/ remote control/smart card all included.
- 12-volt adaptor FOR THE ALTECH DECODER
- Ready to record – support and ready to convert into a PVR unit with an external USB2.0 storage device
- Twin Tuner function – with dual DVB-S2 tuners you will never miss your favorite show again
- Made for Australian conditions – ruggedized design and construction to suit the harsh Australian environment
- Dual Power operation (12V DC/ 240V) is perfect for homes or caravans and motor homes
- Remote control IR extender on F Connector – for discreet installation. (optional)
- Accesses free-to-air TV channels and Radio stations from almost anywhere in Australia
- Hybrid Broadband TV (HbbTV) Australian Profile ready with all key software features to support Freeview Plus
- Decodes High Definition HEVC / MPEG 2 & MPEG4 and Dolby Digital audio
- Closed caption subtitles
- The electronic Program Guide (EPG) simplifies program access
- Software developed in Australia and optimized for Australian viewers
- Secure Boot Processor Core
- IRDETO secure silicon conditional access
- Firmware is upgradeable via USB and Over The Air
- Altech VAST certified – and built for Optus Aurora Digital platform.
- The magic eye is available separately
- Now with Christian tv GOD TV.
Also, the backup support for this product is exceptional, fast, and efficient. You only need to register the box with vast and you are off. Support is a phone call away.

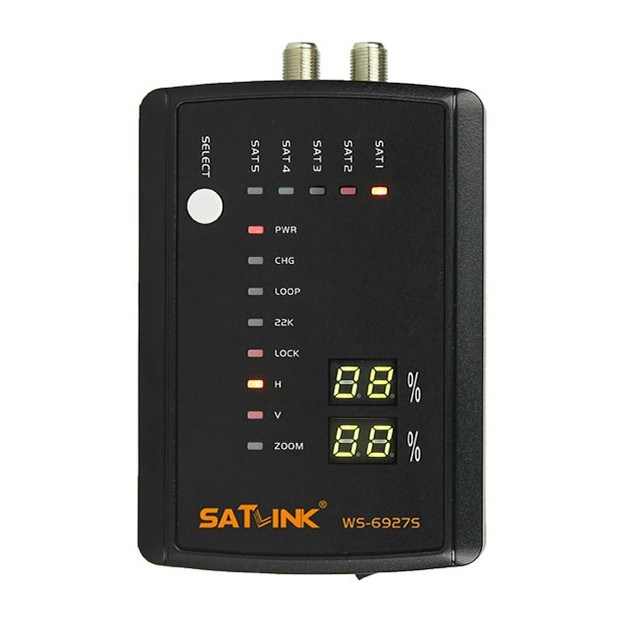

The Satlink WS-6927 is the simpliest satellite signal meter on the market. It comes pre-loaded with 5 frequencies of the most commonly used satellites in Australia. A simple press of the button cycles through the different settings. It comes with an inbuilt battery, so there’s no need to connect long cables to a satellite receiver. You’ll simply only need a cable from the meter to LNBF.
This meter is suitable for VAST, Foxtel, Religious and Foreign TV Services on Optus D2, RAI & RTP C-Band on Asiasat5.
Features
Signal Strength and Quality Readings
Sound and Light Alarm when signal is locked
LNBF Short protection
What’s in the box?
1 x Satlink WS-6927 Meter
1 x 12V 1A Power Supply
1 x USB Cable
1 x User Manual (on a CD)
Specifications
Connector: F Type
Input Frequency: 950-2150MHz
Signal Input Level: -65 to -25dBm
LNB Voltage Supply: 13/18VDC 300mA max
Battery: 7.4V/500mAh Li-ion
Adaptor: 12VDC 1A PSU
Power Consumption: 0.5W Max
Size: 8x13x3cm
Weight: 0.25kgs
The UEC 24″ smart TVUECTV24RVA for caravans, 12V DC + 240V AC. With its sleek design, is a perfect fit for any caravan or motorhome, offering a gateway to a universe of entertainment with its intelligent, integrated features.
It allows you not only to enjoy free-to-air TV programs in a sharp, high-definition format, but also to explore a wide range of entertainment options through pre-installed apps and the ability to install an extensive selection of apps from the Google Playstore. Enjoy platforms like YouTube, Rumble, and subscription channels such as Netflix, Amazon Prime, Disney,Kayo and more. You can even cast directly to the TV from your iPad, laptop, or phone, and it comes with a built-in web browser.
Tailored for caravanning enthusiasts, the UEC 24″ smart TV operates on either 240V AC or 12VDC via the included cigarette lead (DC input rated from 9V to 32V). Its low power consumption means minimal draw from your house battery, making it an energy-efficient choice. The built-in surge protection provides an extra layer of safety against potential electrical surges that could damage sensitive electronic equipment. Enjoy your journey with the assurance of quality entertainment and protection.
This is not just another TV, its a TV for caravans designed specifically for that task. What you receive is a television that has undergone rigorous vibration testing and heat stress tests, ensuring its durability and readiness for any task. These tests are conducted at significant expense to ensure the product’s longevity. The backup service is exceptional, exactly what you would anticipate from a reliable and trusted brand like UEC. Enjoy peace of mind knowing that your entertainment is in good hands.
TV for Caravans
UEC’s 24″ HD TVs are meticulously crafted to be the ideal companion for your caravan. They are powered by a DC power range of 9V to 32V through a cigarette plug, eliminating the need for additional power sources for your entertainment system. Lightweight, robust, and packed with features, the UEC 24″ TV range is designed to accompany you on your journeys. Enjoy your favorite shows and movies in high definition, wherever the road takes you.
TV Features
- ELED 23.6 inch
- Full HD 1920 x 1080
- Electronic Program Guide (EPG)
- Live Record from TV to USB
- A-Grade Panel
- BlueTooth
- Android
- Mirrorcast
- Wi-fi
Connections
- TV Tuner In: x1
- AV Out: x1 (CVBS Out, Line L Out, Line R Out)
- HDMI: x2, 1 with ARC Support
- 3.5mm Earphone Jack: x1
- Co-Axial Out: x1
- Mini AV In: x1
- USB: x2
System
- Built In Tuner: DVB-T/T2
- Audio Output: 2 x5 Watt Speakers
- Video System: PAL
- TV MANUAL HERE (Instruction Manual)
Power
- Power Supply: 12VDC (9Volt – 32Volt)
- Operating Consumption: <32 Watt
- Surge Voltage Protection
- Standby Consumption: <0.5Watt
Accessories
- Remote control unit
- HDMI adapter plug x2
- Desktop stand
- User guide
- 12Volt DC auxiliary cable/plug
The Vast Satellite Dish Kit comes with pre-terminated RG6 Quad Cable which is for the vast system (1 Cable needed)
