Description

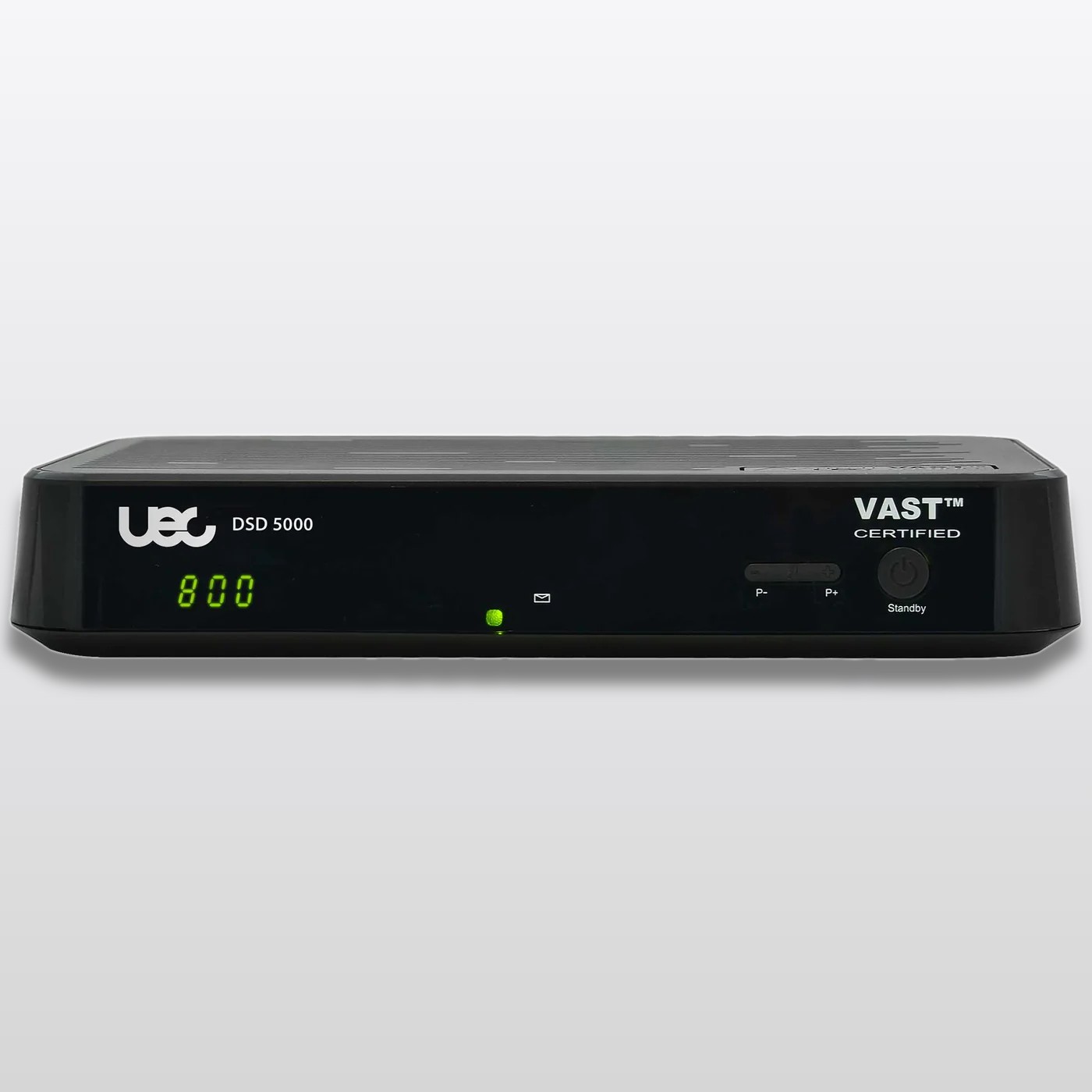

ALTECH DSD 5000 Twin Tuner
UEC presents the DSD5000, their most trusted VAST™ Twin Tuner Satellite Set Top Box in Australia. Featuring a complete hardware rebuild within its compact chassis, it is ready for the future and available now. Backed by UEC’s distribution network, you can be assured of best-in-class service and support. The upgraded model also boasts a 7-segment display for those who prefer to navigate channels by number as well as a 12V power adaptor or direct 12V DC socket compatibility for use at home or on the road. 1-year Manufacturers warranty with support and solutions.
New model with led channel display! The vast service is pretty much Australia-wide, grab this box and get access.
Of course, you will need a dish, which we can help you with, or grab a ready-to-go satellite kit with everything you need here, including this Altech receiver.
- Altech DSD 5000 Compact – only 225 L x 42 H x 135 D mm, perfect for caravans

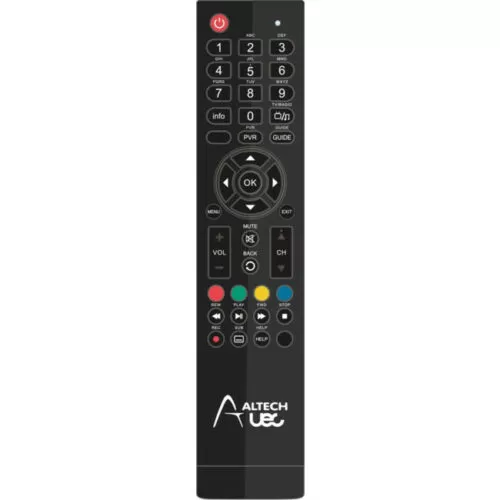

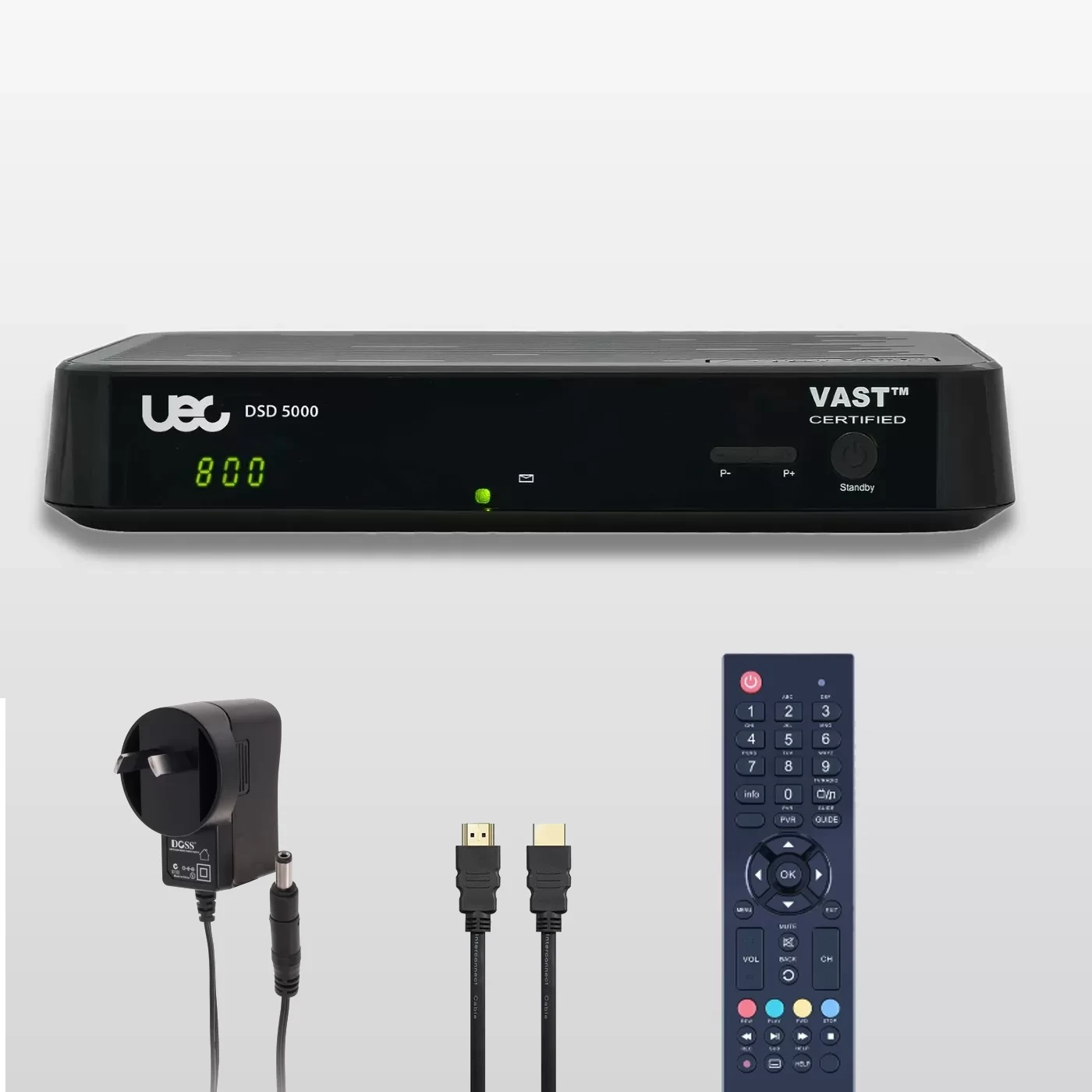

- HDMI Cable, remote control, and smart card are all included.
- Ready to record – support and ready to convert into a PVR unit with an external USB2.0 storage device
- Twin Tuner function – with dual DVB-S2 tuners you will never miss your favorite show again
- Made for Australian conditions – ruggedized design and construction to suit the harsh Australian environment
- Dual Power operation (12V DC/ 240V) is perfect for homes or caravans and motor homes
- Optional External 12V power supply – click here for 12v model
- Remote control IR extender on F Connector – for discreet installation. (optional)
- Accesses free-to-air TV channels and Radio stations from almost anywhere in Australia
- Hybrid Broadband TV (HbbTV) Australian Profile ready with all key software features to support Freeview Plus
- Decodes High Definition HEVC / MPEG 2 & MPEG4 and Dolby Digital audio
- Closed caption subtitles
- The electronic Program Guide (EPG) simplifies program access
- Software developed in Australia and optimized for Australian viewers
- Secure Boot Processor Core
- IRDETO secure silicon conditional access
- Firmware is upgradeable via USB and Over The Air
- Altech VAST certified – and built for Optus Aurora Digital platform.
- The magic eye is available separately
Also, the backup support for this product is exceptional, fast, and efficient. You only need to register the box with vast and you are off. Support is a phone call away.
VAST Registration
Click on the link below for registration
https://www.mysattv.com.au/Default.aspx?s=9480e0e874e26247b05fcb7a7a3ed915673544e7
The VAST decoder can be registered as a permanent or traveler registration. Permanent registration is for households with a fixed installation of the decoder. A traveler registration covers people who as part of their traveling are in areas of Australia not covered by normal terrestrial television.
PERMANENT REGISTRATION:
The location of a permanent installation must be assessed to determine if the household has the ability to receive normal terrestrial television. This is a broadcast license condition for VAST so that the VAST service does not encroach on the license area of existing terrestrial commercial broadcasters.
This assessment is performed by the Government mySwitch website.
Follow the “Satellite Decoder Online Registration” link on the home page of www.MySatTV.com.au
Enter the residential address of the decoder location and press “Get Info”
This location is then assessed for the ability to receive signals from one or more local/regional terrestrial television transmitters. This assessment is indicated by the area under “Coverage summary” and on the regional map. The Red pin indicates the location of the residence. For addresses difficult to locate automatically the Red pin may be dragged across the map to indicate the actual location of the residence. This will also trigger the assessment process to indicate the signals in the new location.
If the address is assessed as being unsuitable for terrestrial reception you may continue the process to apply for VAST by following the link under the “Satellite Summary (VAST) section.
Steps
Follow the “Satellite Decoder Online Registration” link to mySwitch website
Enter your residential address and press “Get Info”
Read information about terrestrial television signal suitability.
If a suitable terrestrial signal cannot be received go to the section “Satellite Summary (VAST)” and press the “Find Out More” button.
Read information regarding VAST and then press the “More information” button.
Read the information supplied and then proceed to the “Applying for VAST” section. Select the correct option and then press Apply.
Read the confirmation information and then press Apply.
A new web page will open on the MySatTV website. This is the registration page. Fill in all the required information and press “Submit Application”.
Wait for a response from VAST. Depending on the location and type of registration your decoder may have been activated within a couple of minutes.
Some applications will require further processing by the VAST Call Centre, this may take up to 2 business days.
ALTECH DSD4921RV Vast Satellite Receiver
TRAVELLER REGISTRATION:
The traveler registration provides access to the VAST service through a Temporary Reception Certificate.
KEY INFORMATION
A Traveller’s Registration is based on a Temporary Registration Certificate. This certificate lasts for 6 months, and then the Commercial television services will be removed.
The services accessible are determined by the State where you are traveling.
As you move from State to State you must advise the VAST Call Centre by phone, email or online inquiry form what services you require.
You may renew the temporary certificate within one month of expiration or any time after expiration. The renewal can be performed online (preferred option), or by calling the VAST Call Centre.
Steps
Follow the link to “Traveller’s Registration” on the MySatTV
Enter the required owners and decoder details.
Select and confirm the statements in the Declaration section and press “Submit Application”.
Wait for a response from VAST. Depending on the location and type of registration your decoder may have been activated within a couple of minutes.
The processing of a new decoder application may take up to 2 business days.
What channels are available on VAST?
Southern Cross Media and Imparja are broadcasting the full range of digital commercial television channels in standard definition (with programming from the 7, 9, and 10 networks) and the high definition channels One HD, 7mate, and GEM.
VAST also provides all the standard and high-definition channels from ABC and SBS.
The local news content from regional broadcasters is also available on dedicated local news channels exclusive to VAST.
What Equipment do I need? ALTECH DSD4921RV Vast Satellite Receiver
Anyone wishing to access VAST will need to purchase a VAST-approved satellite set-top box and a satellite dish of at least 65cm diameter. Access to this new satellite service is managed by a smart card which is supplied with the satellite set-top box. To access VAST you will need to register your details including your address, reception location, and smart card number to enable access.
Permanent or Traveller Registration?
ALTECH DSD4921RV Vast Satellite Receiver
Steps
Follow the “Satellite Decoder Online Registration” link to mySwitch website
Enter your residential address and press “Get Info”
Read information about terrestrial television signal suitability.
If a suitable terrestrial signal cannot be received go to the section “Satellite Summary (VAST)” and press the “Find Out More” button.
Read information regarding VAST and then press the “More information” button.
Read the information supplied and then proceed to the “Applying for VAST” section. Select the correct option and then press Apply.
Read the confirmation information and then press Apply.
A new web page will open on the MySatTV website. This is the registration page. Fill in all the required information and press “Submit Application”.
Wait for a response from VAST. Depending on the location and type of registration your decoder may have been activated within a couple of minutes.
Some applications will require further processing by the VAST Call Centre, this may take up to 2 business days.
Support
This unit is fully backed by the manufacturer and by the Antenna company for 3 years for peace of mind.
Any questions with this device, please call us and we will endeavor to get back to you ASAP.
USER MANUAL
