TV Test Meter Satking-2500c

$ 238.99 inc GST

SatKing  SK-2500C replacement meter

Out of stock

Categories: , , SKU: SATKING- SK2500

Description

 TV Test Meter Satking 2500c

The greatest thing since sliced bread – presenting the all-new model Satking 2500c. This supersedes the old 2500 b and has significant improvements over the old one.

so practical and versatile and being able to see the picture in real time is even better.

Please be aware they are a cheap tool compared to others on the market

this unit Satlink ST-5150 signal meter – The Antenna Company is the bees knees at time of writing for a budget

revised Input connection and better sensitivity.

So why are so great!

  1.  They don’t have the $5000 price tag,
  2.  They are small,  versatile and suitable for professional to amature , horses for coarses.

SATKING METER

They have the ability to power up masthead amplifiers selectable from 5v dc constant default- /12/17 selectable. and of course, being able to see the pictures in real time.

I actually used one in the field every day and I reckon they are great.

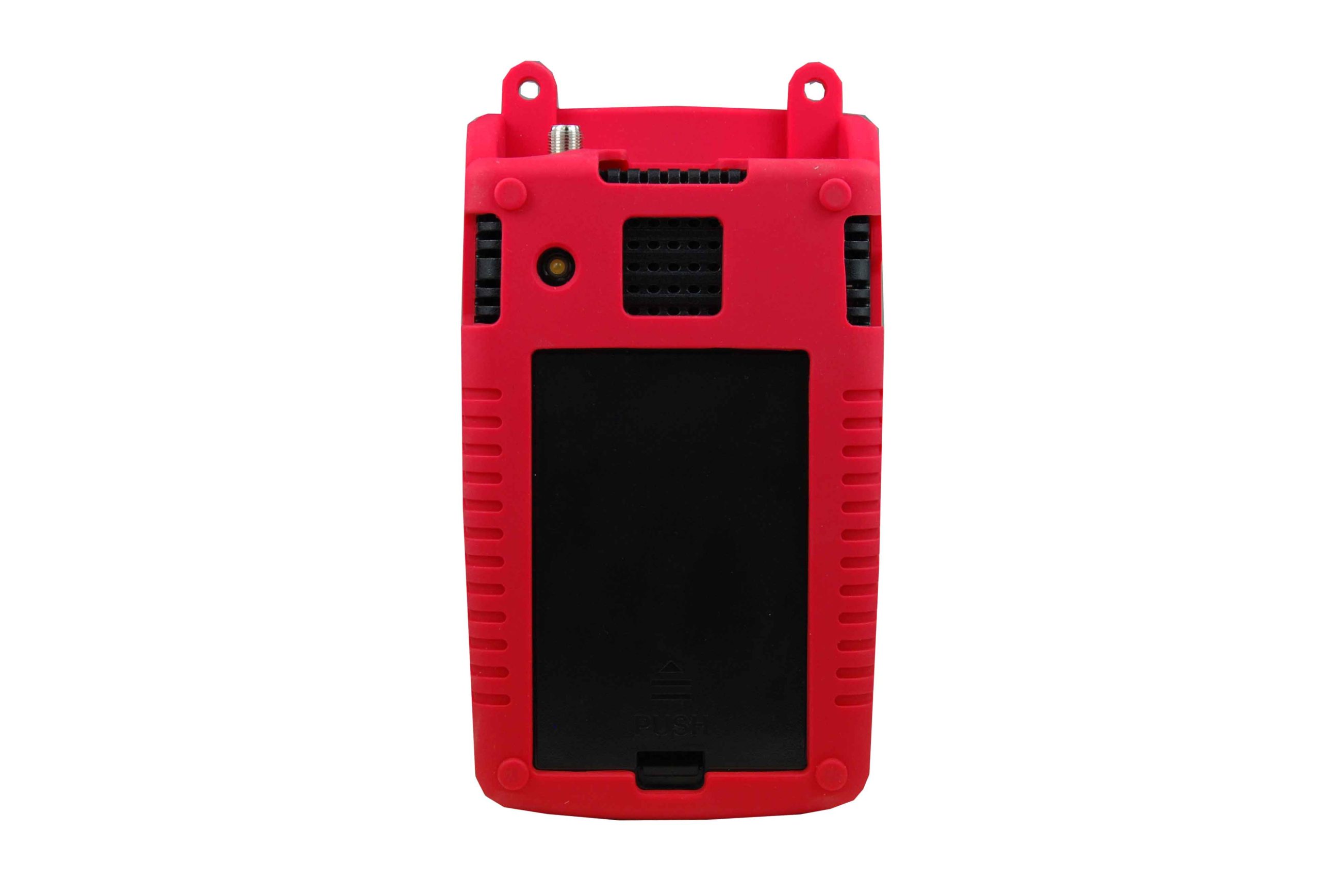

The case is a nice soft rubber, a removable battery, and a sturdy shoulder strap with quick disconnect clips on them. Backlit a nice blue/selectable and a bright torch when in the roof.

absolutely feature-packed will make your job easy. Spare batteries available.

Generic instruction video

Features:

  • MPEG2/MPEG4

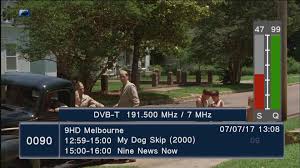

  • Live TV
  • 3.5” Colour LCD Screen
  • Built-in Speaker
  • Built-in Torch
  • Signal buzzer
  • 3000MAh Lithium-Ion Battery
  • HDMI Output
  • AV Input/Output
  • Media Playback Via the USB
  • Software Upgrade via USB
  • Carrier Too Noise Display
  • Compact Size
  • Electronic Program Guide
  • Multi-Channel Signal Level Display Mode
  • BER Display

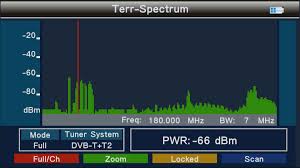

  • Spectrum Analyser Function
  • Mast Head Amp power output
  • Keyboard backlight
  • Can be used in New Zealand

Technical Specifications:

  • Signal Level: 25 to -65dBm
  • Channel: 6-69
  • Freq Range: 177.500-816.500MHz
  • Antenna Input: 1x F-Type
  • Voltage Input: 12VDC
  • Symbol Range: 2-45,000
  • Video Encoding: MPEG2/MPEG4
  • Audio: MPEG-1 Layer II , MPEG4 HE-AAC

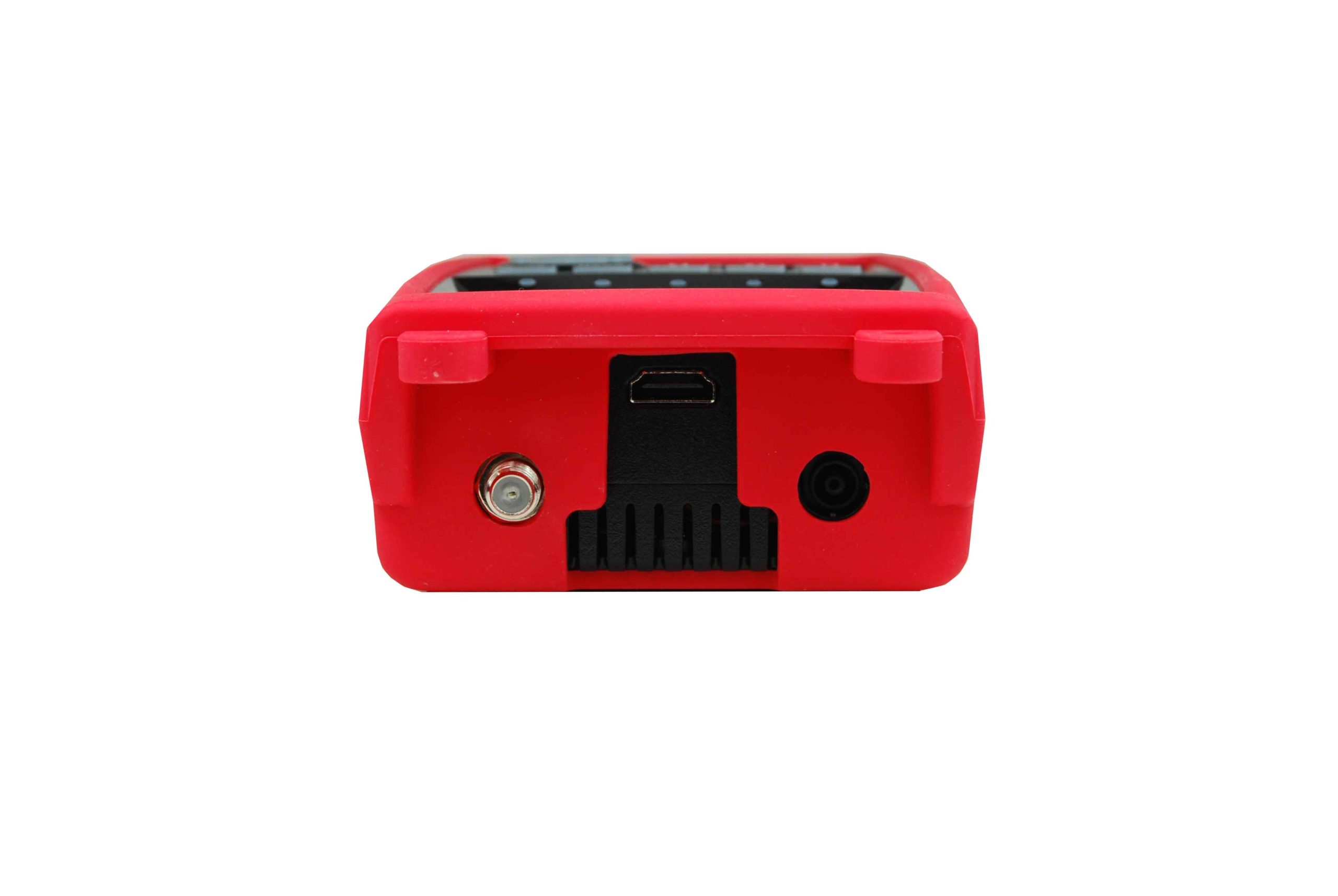

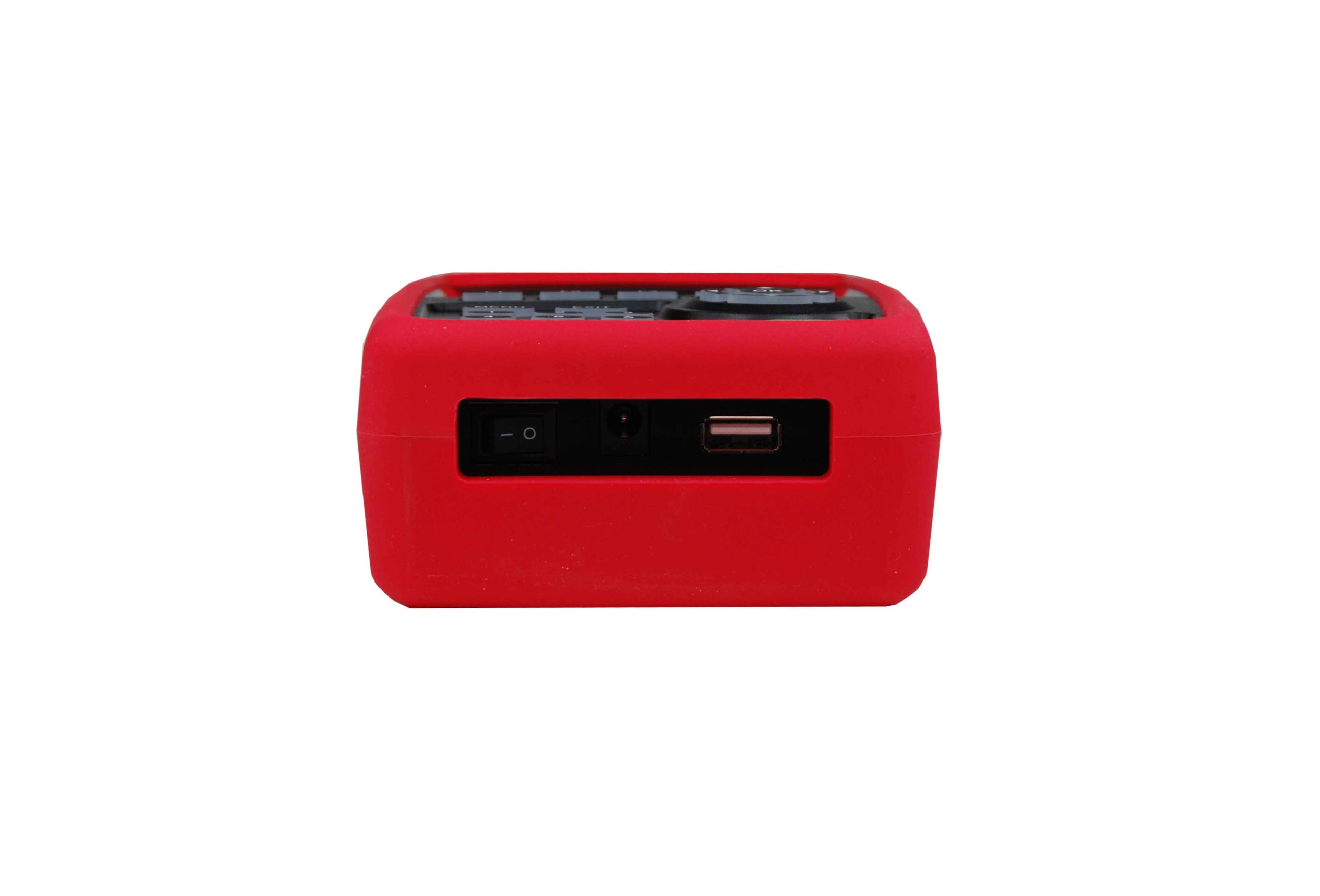

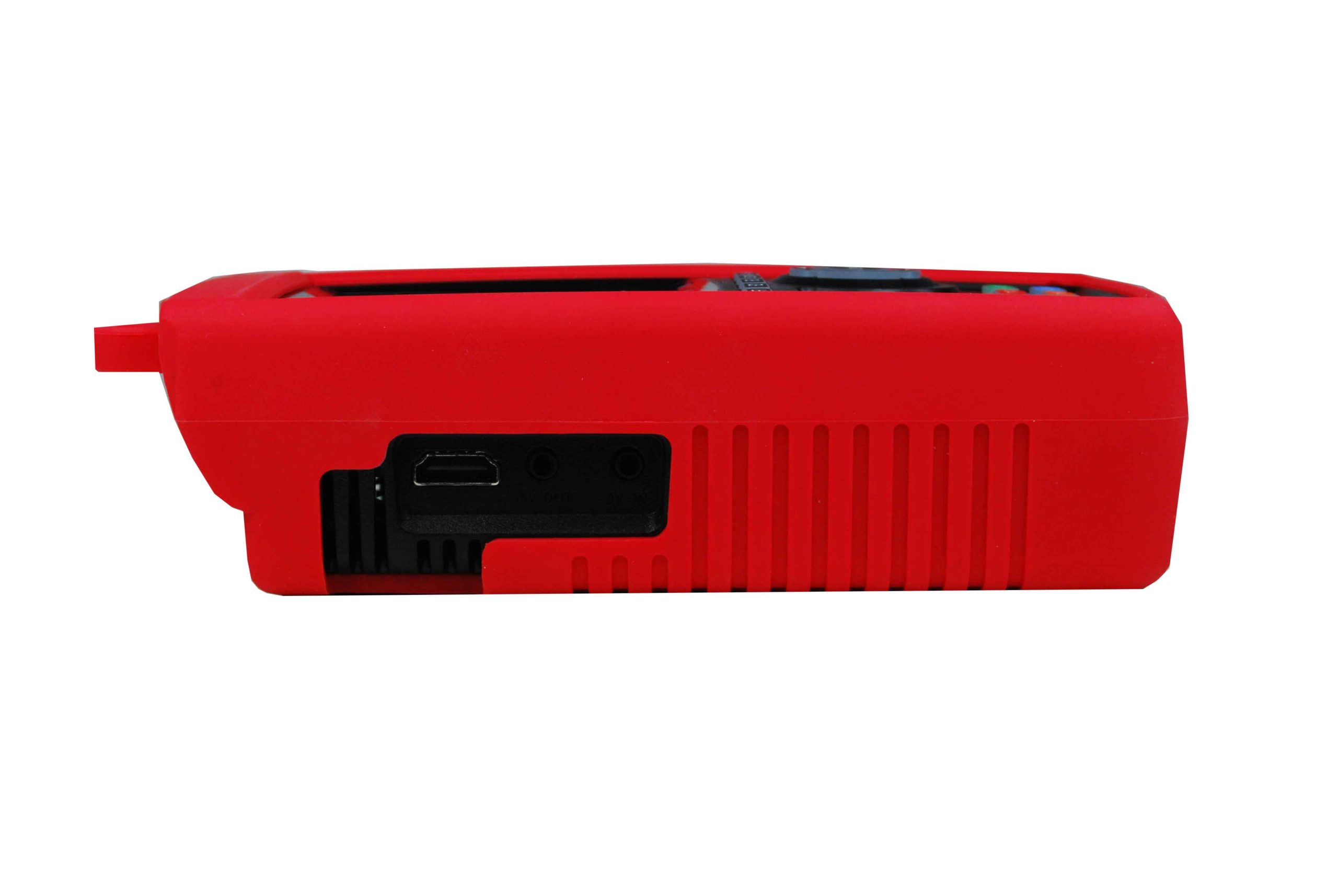

Connections include 1 of the following:

  •  F-Female Input
  •  USB 2.0
  •  HDMI Output
  •  3.5mm AV Input
  •  3.5mm AV Output
  •  2.1mm DC Jack

Package Includes:

  • A Meter
  •  240v/12V Power Pack
  • 12V Cable
  •  Case
  •  Strap
  •  AV Cable
  •  Battery 3000MAh
  •  Gift Box

Note: you may find them cheaper but either they are repacked or refurbished or not 2500c

Additional information

Weight 2.3 kg
Dimensions 25 × 23 × 7 cm
