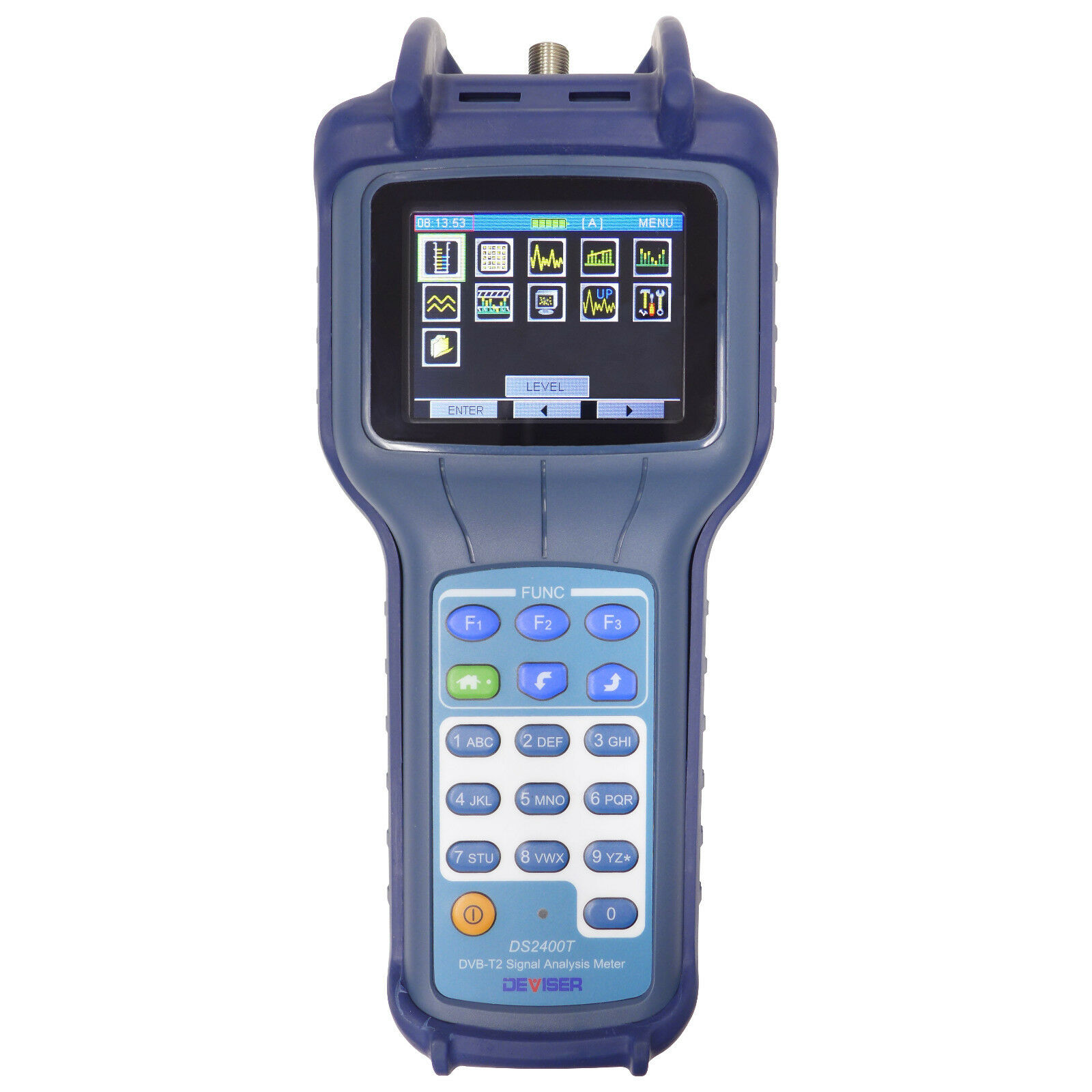

Tv Signal test meter 12mm-ds2400t

$ 1,401.00 inc GST

Categories: , SKU: 223122920283

Description



RETAIL $1999.95



Hi now you have come this far you are entering into the realm of accuracy and professionalism,

This is the (Ducks Guts) at an affordable price, here at the Antenna company we are not about profiteering just supplying products at a fair and competitive price.



Tough – Durable – Cost-effective

The Deviser DS2400T is the perfect combination meter for DVB-T/T2/C
network installation. The device demodulates and measures signals with
extremely high accuracy. Test reports can be easily obtained via PC
Toolbox Software.

Key benefits include:

  • Compatible with DVB-T/T2 and DVB-C standards

  • DVB-T/T2: Complies with ETS300744 standard/ Support Power, MER, CBER and VBER

  • DVB-C: Supports Digital and Analogue TV Measurements

  • Spectrum Function (5~1000MHz)

  • Very easy to use.

2.DVB-T-Power-and-MER

Deviser DS2400T DVB-T Power and MER

3.DVB-T-Constellation-Diagram

Deviser DS2400T DVB-T Constellation Diagram.

4.Spectrum

Deviser DS2400T Spectrum



The Deviser DS2400T is very light, robust, simple to use and has a
long battery life – characteristics that make it perfect for the demands
of field use.







Specifications

DVB-T
Frequency RangeProgrammed to DVBT CH6-69 (177.50 ~ 850MHz)
FunctionPower MER, CBER, VBER, ECHOES and MER Versus Carriers
DVB-T Signal Parameters
Carriers2k/8k (Automatic)
Guard Interval1/4 1/8 1/16 1/32 (Automatic)
Code Rate1/2 2/3 3/4 5/6 7/8 (Automatic)
ModulationQPSK 16QAM 64QAM (Automatic)
Spectral InversionAutomatic
Channel Power
Range30~100dBµV
Accuracy±2.0dB
MER
Range>30dB
Accuracy±2.0dB
BER
CBER/VBERYes
DVB-T2
Modulation TypeQPSK, 16QAM, 64QAM, 256QAM
Power Level
Range25~110dBµV
Resolution0.1dB
Accuracy±2.0dB (C/N >20dB)
MER
Range>32dB
Accuracy±2.0dB
BER
CBER/VBERYes
Power
Battery11.1V 1.6AH Lithium battery (5 hours of operation)
ChargerAC 100V to 240V 50-60Hz; change time approximately 3 hours
Communication Port
AdaptorRS 232C (With Serial to USB data cable included)
Dimensions (HxWxD)218x95x49 mm
Weight700g



Dear Customer,

Please note: the word Quality is used loosely and it is unfortunate that we as humans are attracted to the “cheapest price” Matchmaster and the brands i sell are INDUSTRY STANDARD this means it is what the professionals use . These items are proven, tested, and endorsed by Australian Business owners a brand that has been around for 75 years has a proven track record and Nation wide support. money does buy happiness (sometimes) ?



Additional information

Weight1 kg
