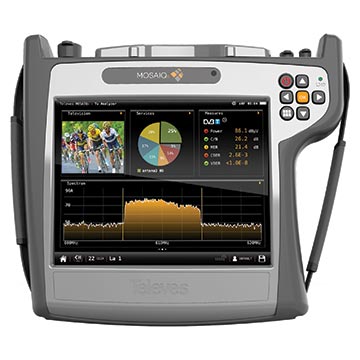

Televes Tablet Style Handheld Digital Signal Meter for DVB-T/T2, DVB-C, DVB-S/S2 with Selective Fibre Optics

$ 20,687.85 inc GST

Multifunction signal analysis compliant with DVB-T, DVB-S/S2,(Measures >2400MHz) DVB-C, FM, DAB/DAB+ and analogue signals, Wi-Fi and IPTV, selective fibre optical tests on 1310nm, 1490nm and 1550nm and 3.3GHz spectrum analyser. Allows the demodulation and analysis of IPTV streams (both unicast and multicast), not only through video display but also by displaying the total bit rate and the relevant information for each service: SID, VPID, AID, video profile, bit rate for both audio and video.. Ultra fast data logging for all DVB-T/T2, DVB-S/S2 and DVB-C meaning less time spent by a technician in commissioning a system. Li-ion (7.2 VDC, 9,000mAh) easily swappable in the field for long lasting operation.

Categories: , SKU: 12MM-MOSAIQ6-SF

Description

Multifunction signal analysis compliant with DVB-T, DVB-S/S2,(Measures >2400MHz) DVB-C, FM, DAB/DAB+ and analogue signals, Wi-Fi and IPTV, selective fibre optical tests on 1310nm, 1490nm and 1550nm and 3.3GHz spectrum analyser

Allows the demodulation and analysis of IPTV streams (both unicast and multicast), not only through video display but also by displaying the total bit rate and the relevant information for each service: SID, VPID, AID, video profile, bit rate for both audio and video.

Ultra fast data logging for all DVB-T/T2, DVB-S/S2 and DVB-C meaning less time spent by a technician in commissioning a system. Li-ion (7.2 VDC, 9,000mAh) easily swappable in the field for long lasting operation.

Featuring multiple interfaces – Ethernet, USB, HDMI, audio output (Jack), FC/APC optical fibre connector, GPS antenna connector.

8″ TFT touch screen allowing full customisation of multiscreen display and layout of measurement windows

Professional spectrum analyser with ultra-fast digital processing (sweep time < 10 ms) and high dynamic range (> 50 dB). Equipped with advanced functions for the detection and analysis of signals in the 5 MHz to 3,300 MHz (waterfall, event triggers, markers, user configurable RBW and VBW, etc.).

Additional information

Weight 2 kg
