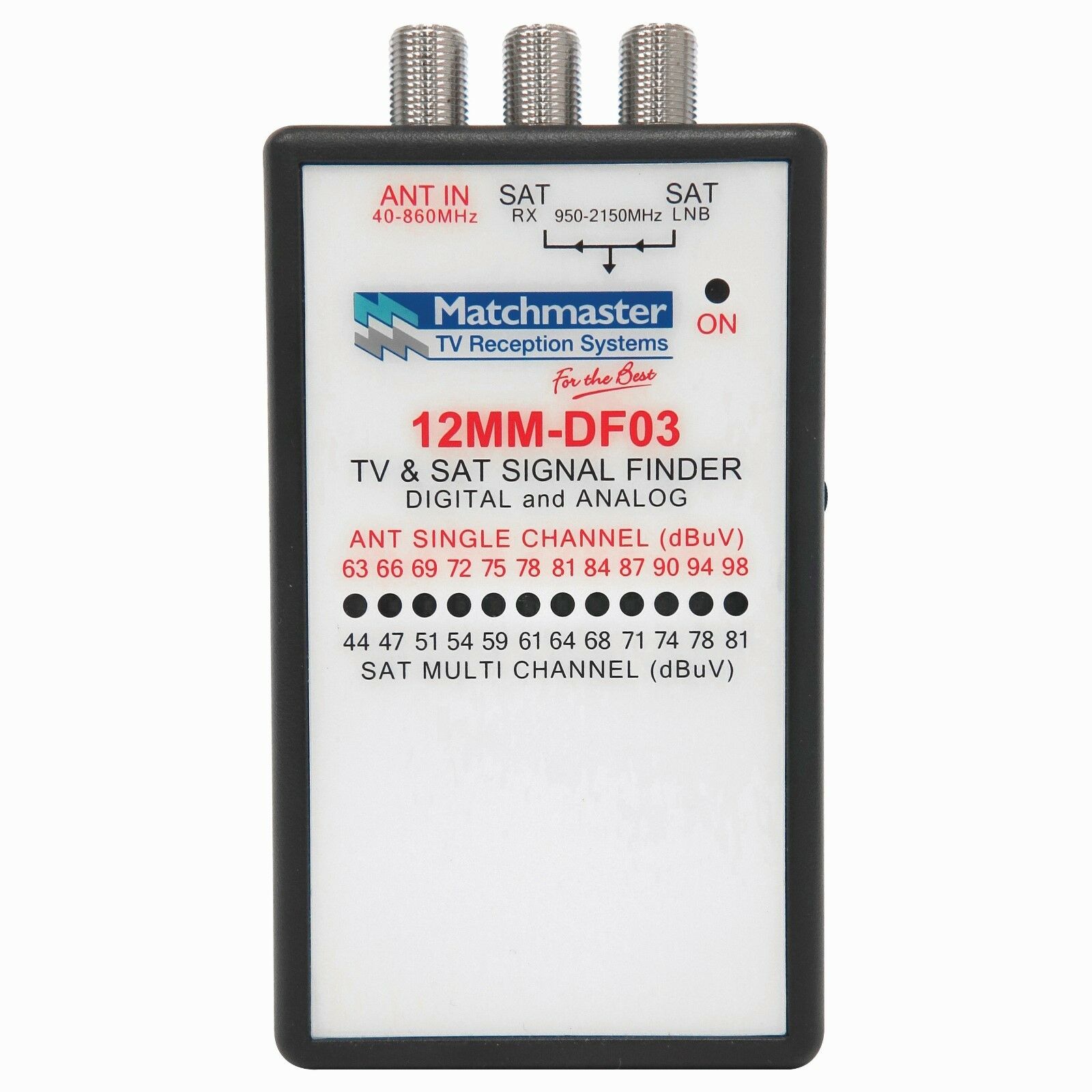

MATCHMASTER Digital TV And Satellite Signal Finder 12MM-DF03 fox tester digital.

MATCHMASTER Digital TV And Satellite Signal Finder 12MM-DF03 tester digital.

$ 96.81 inc GST

MATCHMASTER DF03 signal tester basic nevertheless useful

3 in stock (can be backordered)

Categories: , SKU: 12MM-DF03

Description

12MM-DF03 tester digital.

Features and Benefits

·
Designed to ensure that you position and angle your digital TV
antenna/satellite in the correct direction for best reception

·
Suitable for the home, caravan, boating and leisure enthusiast

·
Provides LED lights to show signal strength for antenna/satellite
adjustment

·
Easy to use, compact design

·
Includes 9V battery

Specifications

Power Requirement

9V
Battery. Avg. 60mA. (or automatic power via Satellite Receiver connection
13-18VDC)

Battery Life

Zinc
(6F22) better than 6Hrs continuous use. Alkaline (6LR61) better than 10 hours
continuous use

Frequency Response

FTA
40-860MHz SAT, 950-2150MHz

Sensitivity

ANT
input, 4 channels/MUX’s, +/-2dBuV, 75 (single channel sensitivity in square
brackets)

1 LED

44 (63)
dBµV

Low
signal, not all TV services may be available

2 LED’s

47 (66)
dBµV

Minimum
signal, not all TV services may be available

3 LED’s

51 (69)
dBµV

Minimum
signal, not all TV services may be available

4 LED’s

54 (72)
dBµV

Optimum
signal

5 LED’s

59 (75)
dBµV

Optimum
signal

6 LED’s

61 (78)
dBµV

Optimum
signal

7 LED’s

64 (81)
dBµV

Optimum
signal

8 LED’s

68 (84)
dBµV

Optimum
signal

9 LED’s

71 (87)
dBµV

Optimum
signal

10 LED’s

74 (90)
dBµV

Optimum
signal

11 LED’s

78 (94)
dBµV

Optimum
signal

12 LED’s

81 (98)
dBµV

Optimum
signal

SAT Input

Visual/Audio
Indication Only





Additional information

Weight.3 kg
Dimensions20 × 12 × 4 cm
