Description

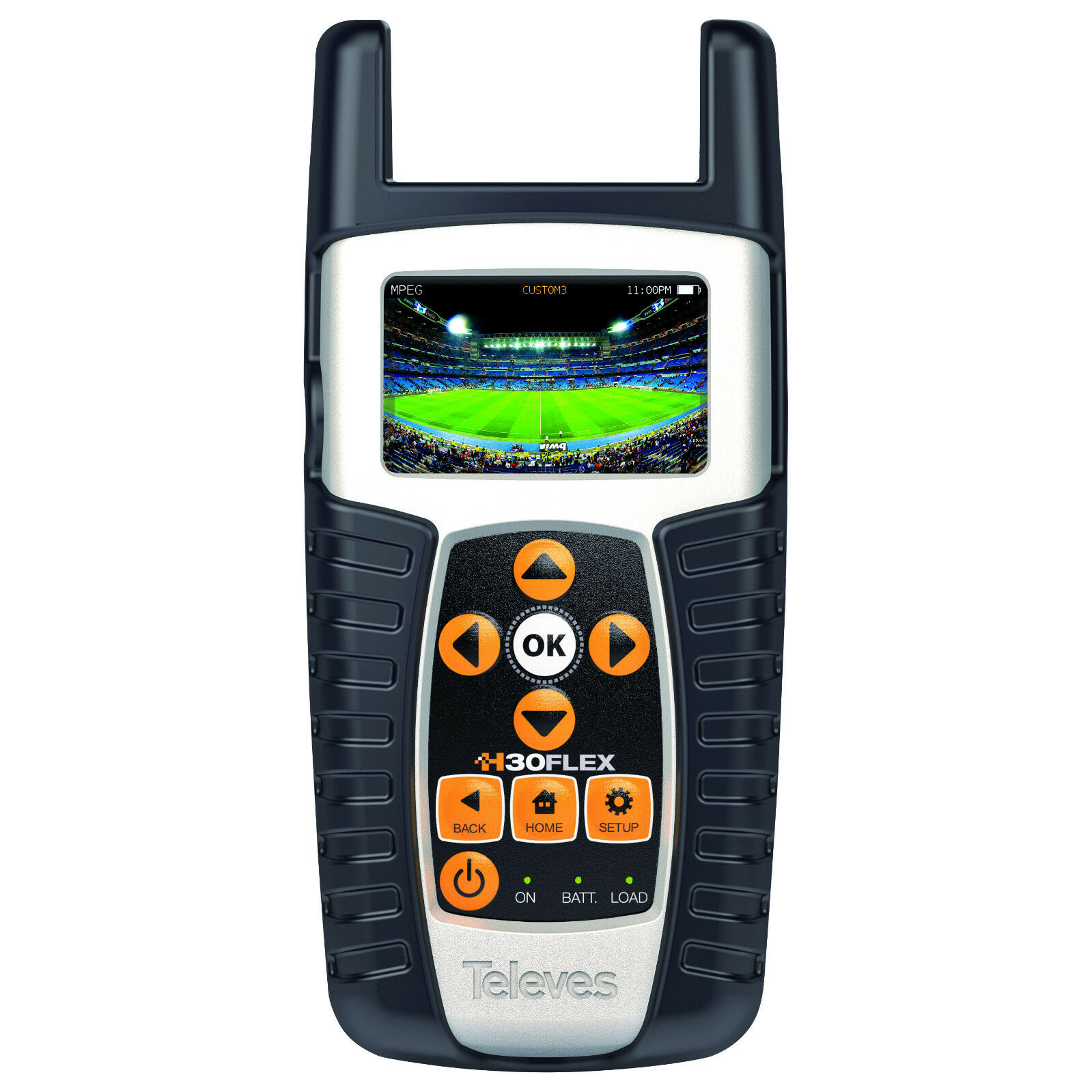

Signal Meter with DVB-T and DVB-S/S2
- Compact hand held DVB signal analyser
- Default DVB-T and DVB-S/S2 as standard
- Additional Licenses to unlock extra standards DVB-C, T2, and dCSS/SCR functionality
- Spectrum analyser and built-in tuner to view live channels
- DVB-T powering for masthead amplifiers
- Optional Licenses: 12MM-T2-LIC – License to activate DVB-T2 function, 12MM-DCSS-LIC – License to activate dCSS & SCR function and 12MM-C-LIC – License to activate DVB-C function
Videos
Features for Satellite Signals
Features for Terrestrial Signals
Specifications
Display | 2.8” TFT 400 x 240 full colour | |
---|---|---|
Weight | 510g | |
Dimensions | 175 x 100 x 52 mm (H x W x D) | |
AC Adaptor | Input: 100-240V~ 50-60Hz, Output: 12VDC, 2A | |
Battery | Li-ion battery (7.2VDC, 2300mAh) | |
Operating Time | Up to 4 hours | |
Operating Temperature | -5°C to 45°C | |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% non-condensing | |
Ruggedness | Survives 1m drop to concrete on all sides | |
Communication Interfaces | USB 2.0 connector (earlier model) / Ethernet connector (latest model) to download Datalogs and software updates | |
Storage | 400 MB (internal) for measurements | |
Power Up Time | < 10 seconds | |
Frequency | ||
Range | 50-880MHz and 950-2200MHz | |
Resolution | 125 kHz | |
Tuning | Frequency or channel | |
Spectrum Analyzer | ||
Span | 5, 10, 20, 50, 100, 200, 500 MHz and Full | |
Scale | 5 and 10 dB/div | |
Reference Level (Automatic and Manual) | Yes | |
DVB-S Digital Measurements (Modulation: QPSK) | ||
Image | Yes | |
Power | From 45 to 110 dBµV | Yes |
CBER | 9.9E-2 – 1.0E-6 | Yes |
VBER | 1.0E-4 – 1.0E-8 | Yes |
MER | Up to 20 dB | Yes |
C/N | Automatic | Yes |
Constelation | Yes | |
SCR | EN 50494 | Yes |
dCSS | EN 50607 | Yes | Upgrade 593234* |
DVB-S2 Digital Measurements (Modulations: QPSK, 8PSK) | ||
Image | Yes | |
Power | From 45 to 110 dBµV | Yes |
Link Margin | Up to 10 dB | Yes |
MER | Up to 20 dB | Yes |
LDPCBER | 9.9E-2 – 1.0E-6 | Yes |
BCHBER | 9.9E-2 – 1.0E-8 | Yes |
Constelation | Yes | |
SCR | EN 50494 | Yes |
dCSS | EN 50607 | Yes | Upgrade 593234* |
DVB-T Digital Measurements (Modulations: COFDM (QPSK, 16QAM, 64QAM)) | ||
Image | Yes | |
Power | From 45 to 110 dBµV | Yes |
From 45 to 120 dBµV | Yes | Upgrade 593235* | |
CBER | 9.9E-2 – 1.0E-6 | Yes |
VBER | 1.0E-3 – 1.0E-8 | Yes |
MER | Up to 38 dB | Yes |
C/N | Automatic | Yes |
Echoes | Yes | |
Constetion | Yes | |
DVB-T2 Digital Measurements (Modulations: COFDM (QPSK, 16QAM, 64QAM and 256QAM)) | ||
Image | Upgrade 593232 | |
Power | From 45 to 110 dBµV | Upgrade 593232 |
From 45 to 120 dBµV | Upgrade 593232 + Upgrade 593235* | |
LDPCBER | 9.9E-2 – 1.0E-6 | Upgrade 593232 |
BCHBER | 1.0E-3 – 1.8E-8 | Upgrade 593232 |
Link Margin | Up to 30dB | Upgrade 593232 |
MER | Up to 35dB | Upgrade 593232 |
C/N | Automatic | Upgrade 593232 |
Echoes | Upgrade 593232 | |
Constelation | Upgrade 593232 | |
DVB-C Digital Measurements (Modulations: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM) | ||
Image | Upgrade 593233 | |
Power | From 45 to 110 dBµV | Upgrade 593233 |
From 45 to 120 dBµV | Upgrade 593233 + Upgrade 593235* | |
CBER | 1.0E-2 – 1.0E-8 | Upgrade 593233 |
MER | Up to 38dB | Upgrade 593233 |
C/N | Automatic | Upgrade 593233 |
Analogue Measurements | ||
Level | 25 and 125 dBµV | Yes |
V/A | Yes | |
C/N | Yes | |
Channel Plans | ||
Terrestrial Plans | CCIR, CCIR + LTE, OIRT, KBW, FCC, SIM plus Custom Plans | |
Satellite Plans | Regional plus Custom Plans | |
Units | dBµV, dBmV, dBm | |
LNB | 13, 18 Vdc | |
LNB Tone | 22 kHz |
