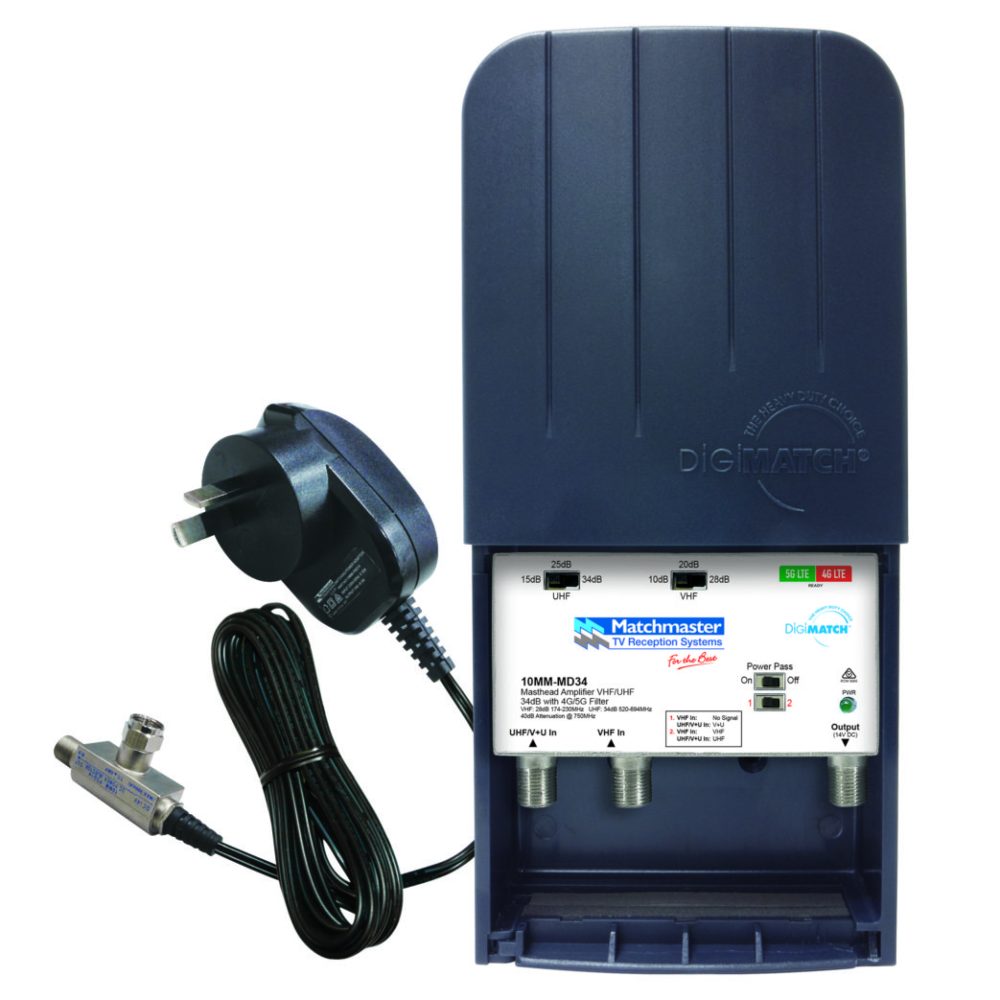

Description
this can be used purely for UHF only or VHF or a combination of the 2
- Built-in 4G LTE 694MHz low pass filter
- Filtering at 750MHz is >50dB at maximum gain for UHF of 34dB
- The VHF input return loss is >12dB with a noise figure of <4.8dB and the UHF input return loss is >11dB with a noise figure of <2.9dB
- Can be used with a combination antenna or separate VHF and UHF antennas by setting the built-in switch
- Power through a switch to drive extra amplifiers for both VHF and UHF

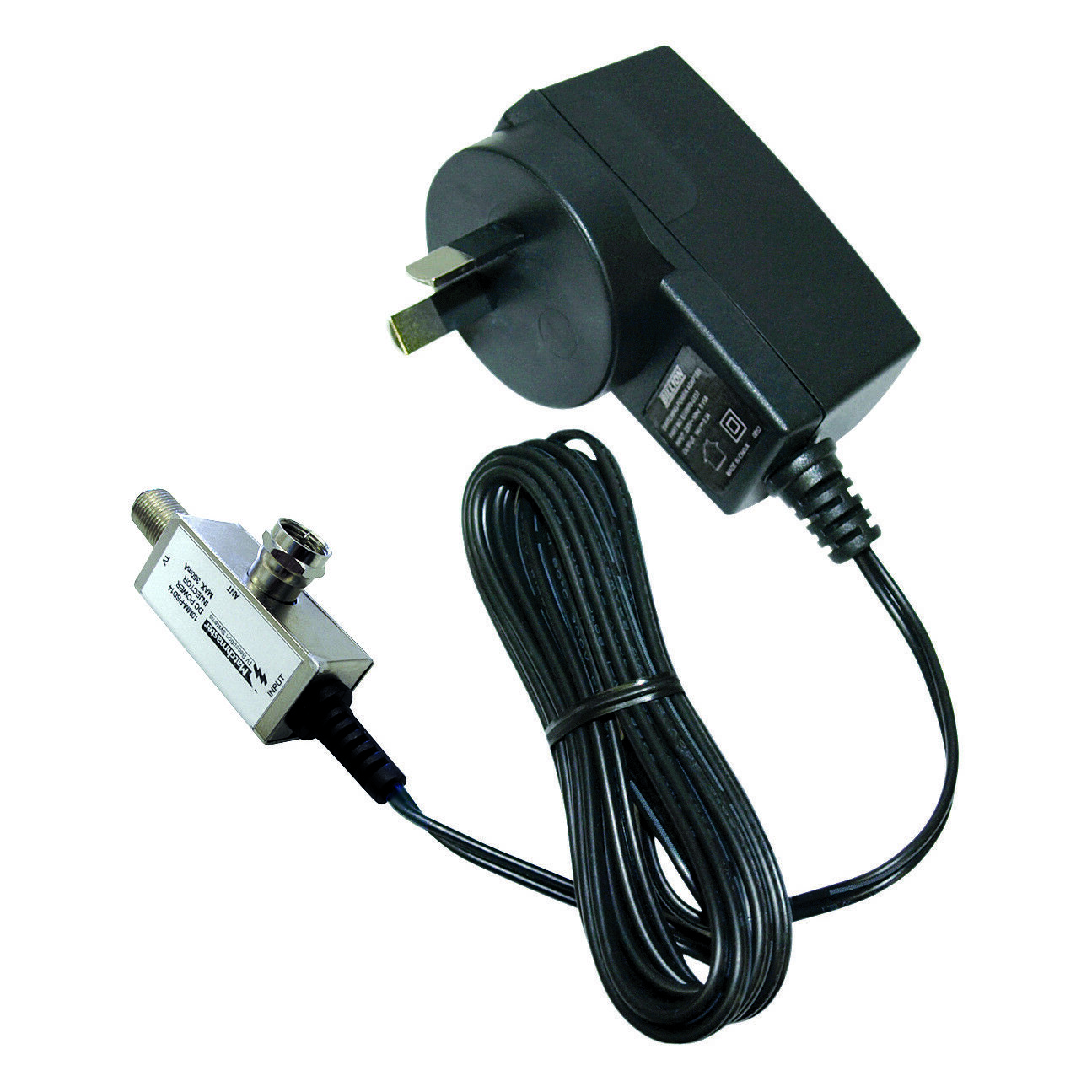

- The pack contains a 14VDC power supply and a cable tie for mounting
Specifications
| Amplifier | |||
|---|---|---|---|
| Input 1 | VHF | ||
| Input 2 | UHF or VHF+UHF | ||
| VHF frequency range | 174-230MHz | ||
| VHF gain switchable | 10/20/28dB | ||
| UHF frequency range | 520-694MHz | ||
| UHF gain switchable | 15/25/34dB | ||
| Input Mode selector | Mode 1 | Mode 2 | |
| VHF In | No signal | VHF | |
| UHF/V+U In | VHF+UHF | UHF | |
| Output | Output to System (14VDC Input) | ||
| Return loss | >12dB typical | ||
| Output | >102dBuV | ||
| Noise figure | <=5dB | ||
| Impedance | 75 Ohm | ||
| Power consumption | 100mA | ||
| All “F” female connectors | |||
| Alloy diecast housing dimension | 93 x 66 x 1.5mm | ||
| Waterproof ABS plastic housing dimension | 123 x 108 x 50mm | ||
| Power Supply | |||
| Power adaptor | 190-240V AC/50-60Hz | ||
| Output | DC 14V/300mA | ||
| Antenna Port | ‘F’ Male | ||
| TV Port | ‘F’ Female | ||
| Nickel-plated alloy housing | |||
| DC cable length | 1.8m | ||
