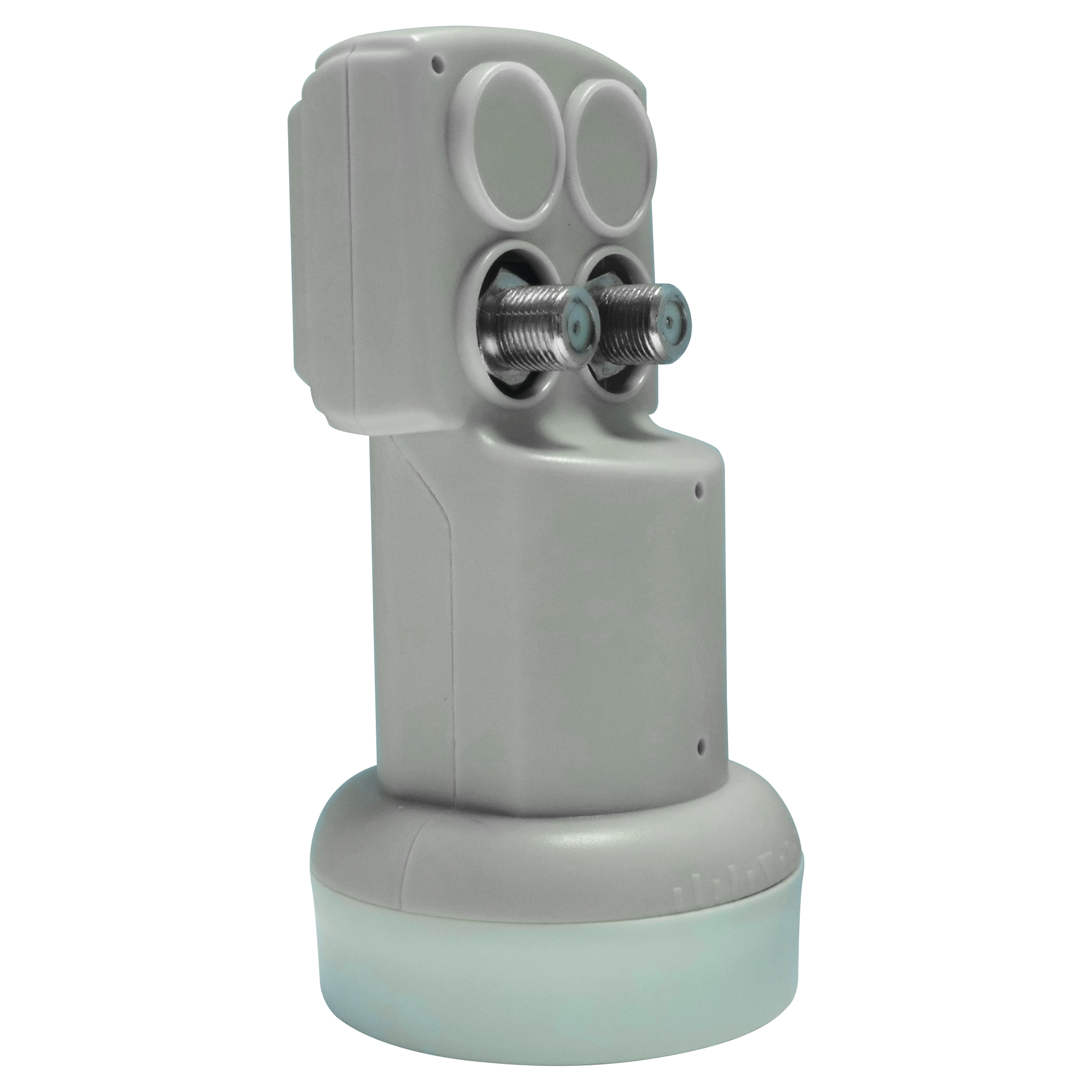

VastLNB Product Summary
Dual output KU band PLL LNB with 10.7GHz local oscillator suited for VAST satellite TV, Optus 10, and D3 satellite reception. Using the latest PLL technology for optimum performance with low current operation.
This is a Matcmaster dual output dual polarity ( horizontal /vertical ) LNBF that receives the signal for vast tv and fox great replacement item, when installed they need to be tilted either left or right to get a maximum signal.
- 10.7GHz local oscillator with output frequency range 950MHz – 2050MHz
- PLL technology (Phase-Locked Loop) for greater stability
- Low current operation
- VAST TV reception plus Optus 10 and Optus D3 reception
- High gain with low noise
- Flat output response with +/- 1.0dB across 54MHz bandwidth
LNB Features and Benefits
- 10.7GHz local oscillator with output frequency range 950MHz – 2050MHz
- PLL technology (Phase-Locked Loop) for greater stability
- Low current operation
- VAST TV reception plus Optus 10 and Optus D3 reception
- High gain with low noise
- Flat output response with +/- 1.0dB across 54MHz bandwidth
Vast LNB Specifications
- Reception Frequency 11.70～12.75GHz
- Output Frequency 950～2050MH
- L.O. Frequency 10.7GHz
- Gain 60dB
- Gain Flatness In 54MHz Bandwidth ±1.0dB
- Across the Band 11.7～12.75GHz ±2.5dB
- Gain Difference(Between V & H Polarity) 3dB maximum
- Noise Figure 0.8dB
- Image Rejection 40dB minimum
- 1dB Compression Point 0dBm
- 3rd Order Modulation(Two Tones) Intercept Point 50dBc minimum
- L.O. Stability Room Temperature ±300KHz
- Over Temperature ±500KHz
- L.O. Phase Noise @ 1KHz Offset -55dBc/Hz maximum
- @ 10KHz Offset -80dBc/Hz maximum
- @ 100KHz Offset -90dBc/Hz maximum
- L.O. Leakage @ Input -50dBm
- Output VSWR 2.0:1
- Cross-Polar Isolation 25dBm
- Polarity Switching Voltage Vertical 11.5~14V
- Horizontal 16~19V
- DC Current Consumption Input Voltage 110mA
- Mobile Interference Suppression -10dBm Output @ Test Fixture Antenna Assemble Stage -40dBm
- Operating Temperature -30~+70°C
Products may vary from the pictures shown. Specifications are subject to change without notice.
