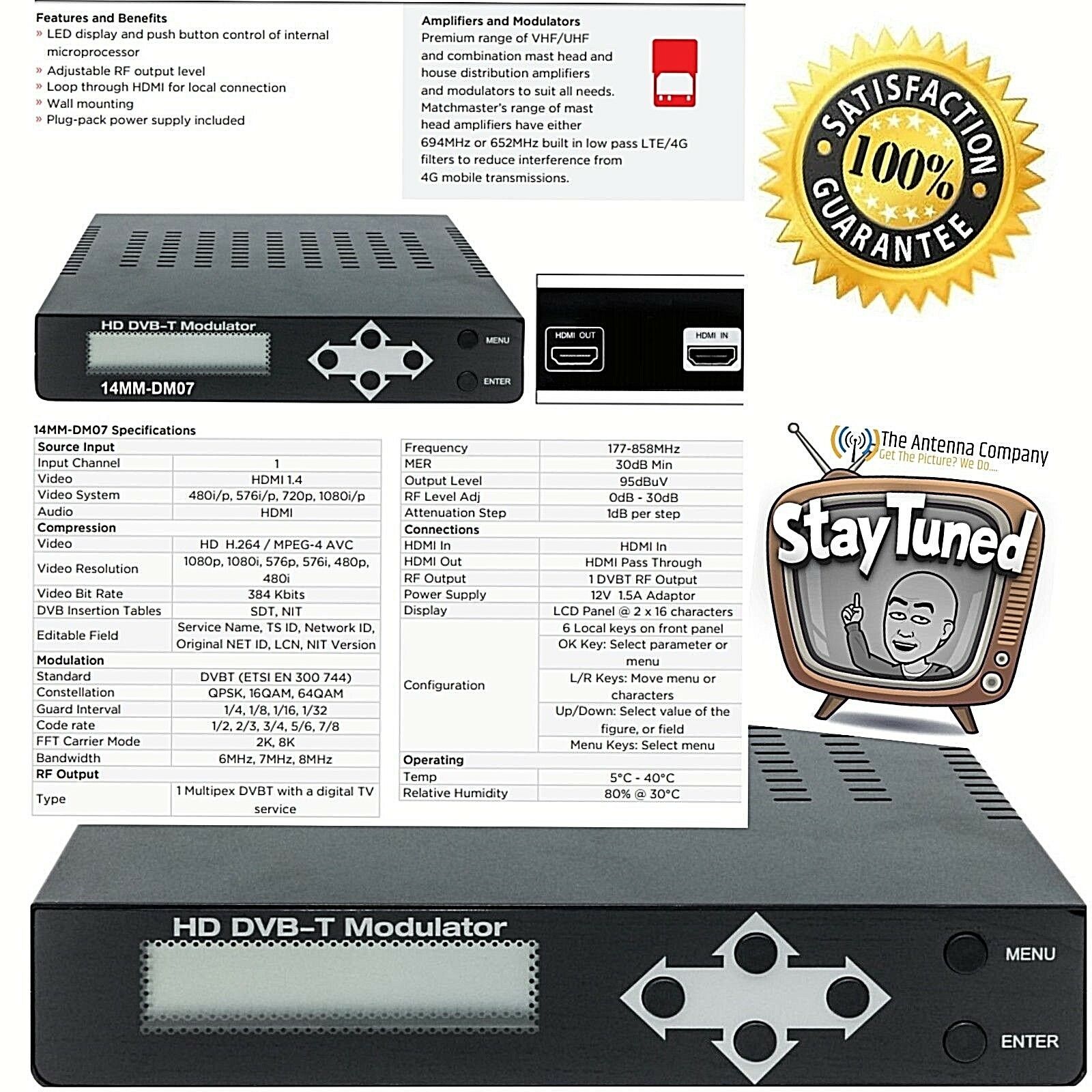

Description
This HDMI to Digital Channel Modulator allows you to convert an HDMI signal to digital. RF channel ie channel 8 or 11 or 52 etc great for having DVD or fox throughout the building etc
Features and Benefits
- LED display and push-button control of internal microprocessor
- Adjustable RF output level
- Loop through HDMI for local connection
- Wall mounting
- Plug-pack power supply included
Specifications
Source Input
Input Channel 1
Video HDMI 1.4
Video System 480i/p, 576i/p, 720p, 1080i/p
Audio HDMI
Compression
Video HD H.264 / MPEG-4 AVC
Video Resolution 1080p, 1080i, 576p, 576i, 480p, 480i
Video Bit Rate 384 Kbits
DVB Insertion Tables SDT, NIT
Editable Field Service Name, TS ID, Network ID, Original NET ID, LCN, NIT Version
Modulation
Standard DVBT (ETSI EN 300 744)
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
FFT Carrier Mode 2K, 8K
Bandwidth 6MHz, 7MHz, 8MHz
RF Output
Type 1 Multipex DVBT with a digital TV service
Frequency 177-858MHz
MER 30dB Min
Output Level 95dBuV
RF Level Adj 0dB – 30dB
Attenuation Step 1dB per step
Connections
HDMI In HDMI In
HDMI Out HDMI Pass Through
RF Output 1 DVBT RF Output
Power Supply 12V 1.5A Adaptor
Display LCD Panel @ 2 x 16 characters
Configuration
6 Local keys on front panel
OK Key: Select parameter or menu
L/R Keys: Move menu or characters
Up/Down: Select value of the figure, or field
Menu Keys: Select menu
Operating
Temp 5°C – 40°C
Relative Humidity 80% @ 30°C
