Description

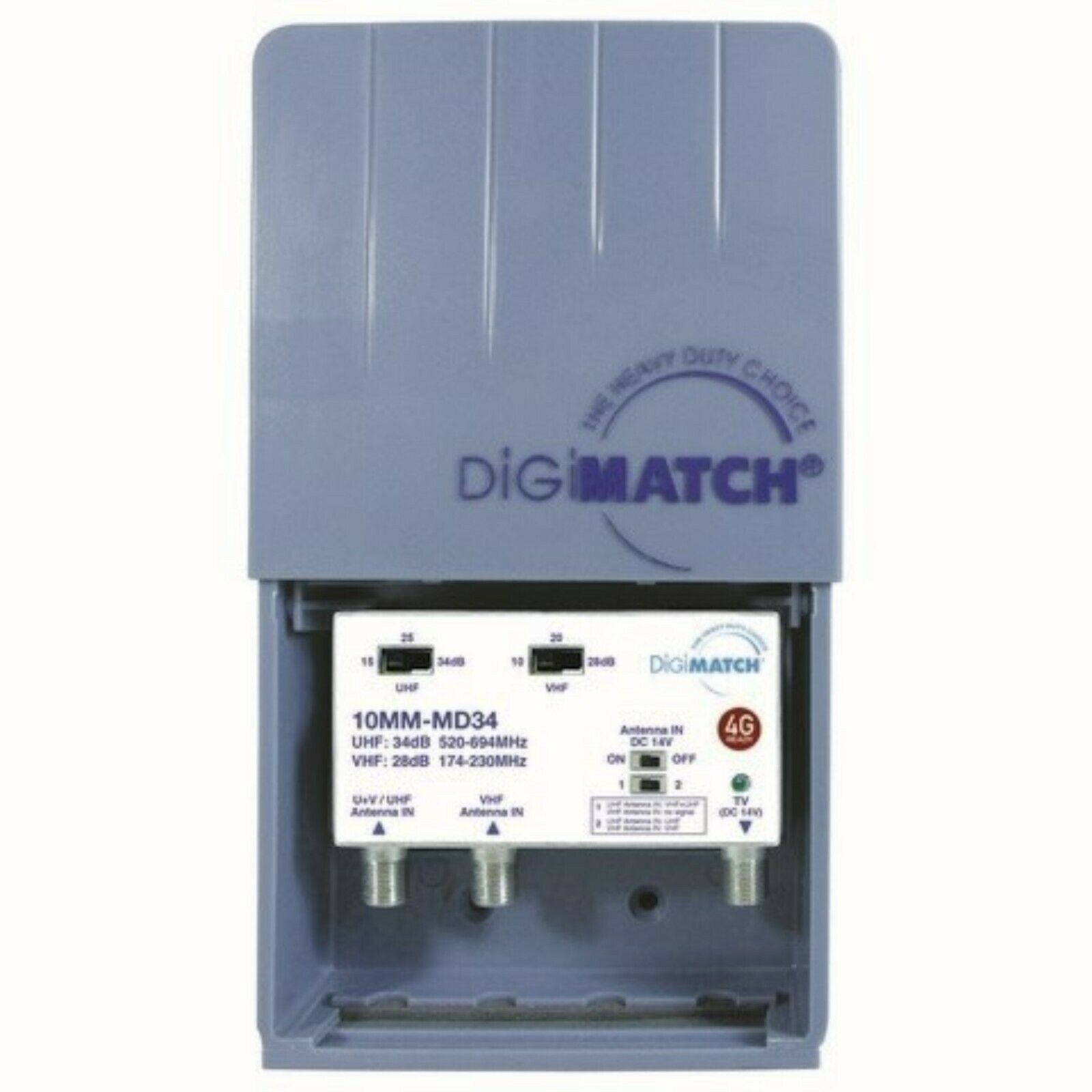

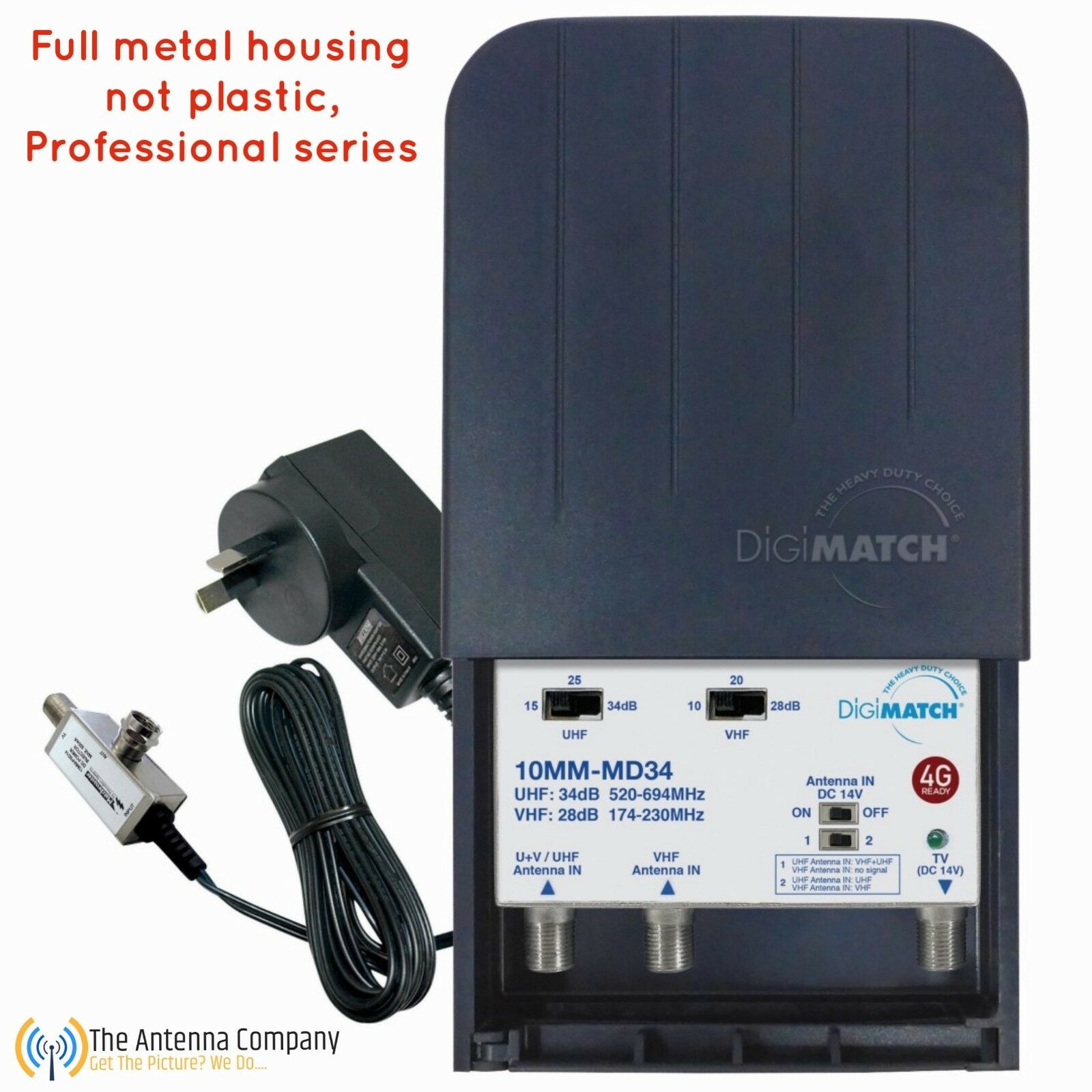

matchmaster 10mm-MD34P
Tv Signal booster digital uhf vhf 10mm-MD34P
Features and Benefits
- Built-in 4G LTE 694MHz low pass filter
- Filtering at 750MHz is >50dB at maximum gain for UHF of 34dB
- The VHF input return loss is >12dB with a noise figure of <4.8dB and UHF input return loss is >11dB with a noise figure of <2.9dB
- Can be used with a combination antenna or separate VHF and UHF antennas by setting the built-in switch
- Power through switch to drive extra amplifiers for both VHF and UHF!
- The pack contains a 14VDC power supply and a cable tie for mounting and 2 adaptor plus
- Tv Signal booster digital uhf vhf 10mm-MD34P
Specifications
Amplifier
Input 1 VHF
Input 2 UHF or VHF+UHF
VHF frequency range 174-230MHz
VHF gain switchable 10/20/28dB
UHF frequency range 520-694MHz
UHF gain switchable 15/25/34dB
Input Mode selector
Mode 1 Mode 2
VHF In No signal VHF
UHF/V+U In VHF+UHF UHF
Output Output to System (14VDC Input)
Return loss >12dB typical
Output >102dBuV
Noise figure <=5dB
Impedance 75 Ohm
Power consumption 100mA
All “F” female connectors
Alloy diecast housing dimension 93 x 66 x 1.5mm
Waterproof ABS plastic housing dimension 123 x 108 x 50mm

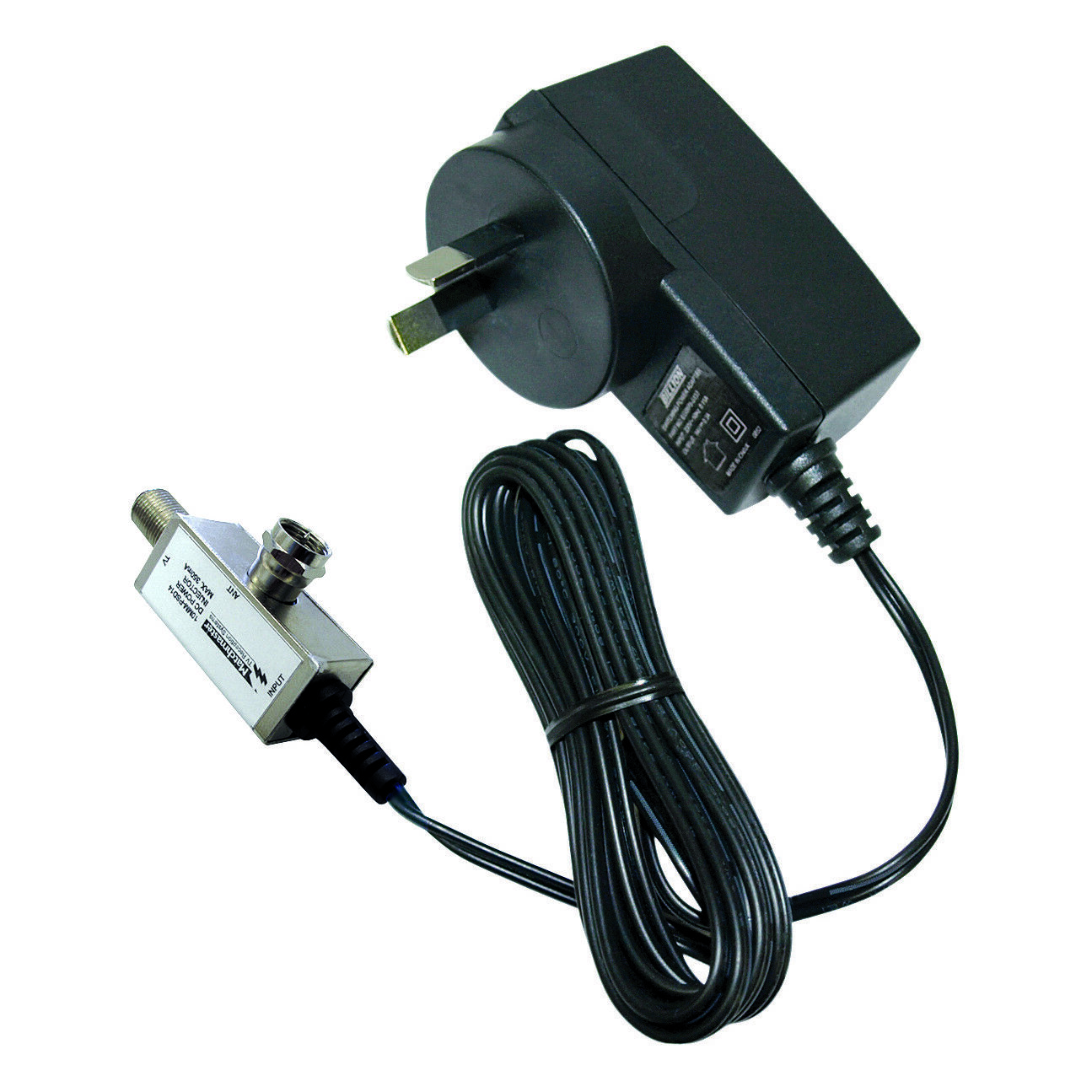

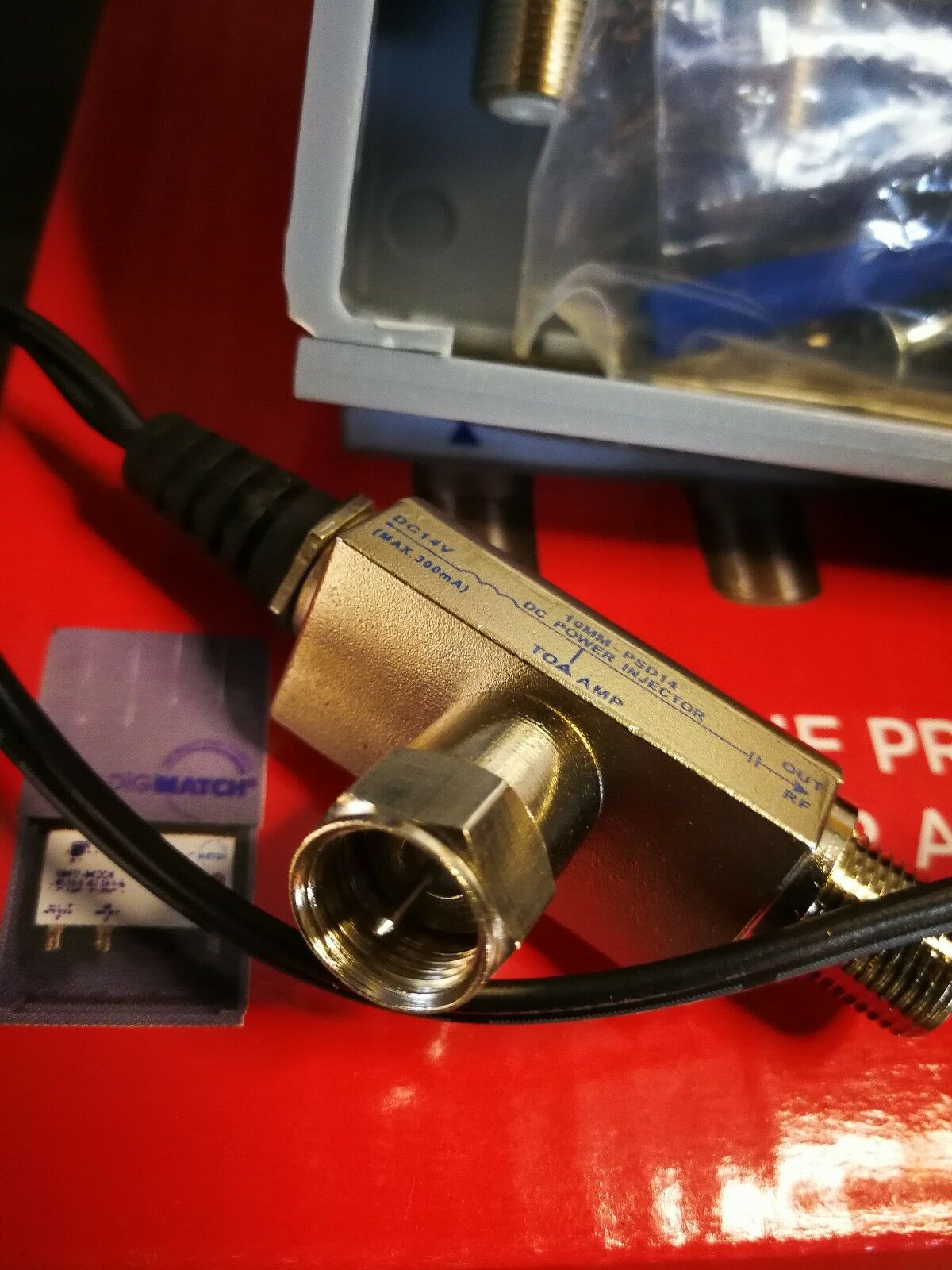

Power Supply
Power adaptor 190-240V AC/50-60Hz
Output DC 14V/300mA
Antenna Port ‘F’ Male
TV Port ‘F’ Female
Nickel plated alloy housing
DC cable length 1.8m
Tv Signal booster digital uhf vhf 10mm-MD34P
PLEASE NOTE :
I cannot stress how important it is to take your time when installing amplifiers. in 38 years i could comfortably say i have ever only had 4 dead units in all that time ,which equates to nothing considering the now thousands that have been sold.
Boosters are not a miracle cure to bad reception they are designed to increase signal, you need a minimum level for them to work if you have interference or are in a lousy reception area or have old cable and old connections they will only amplify the problem. but if the signal is weak they will kick it up a notch.
my matchmaster range allow you to daisy chain for extra-long runs as well
if you buy any one of my quality proven industry-standard amplifiers before you presume its faulty call me first or send a message and we will go over it over the phone.
thanks
