Description

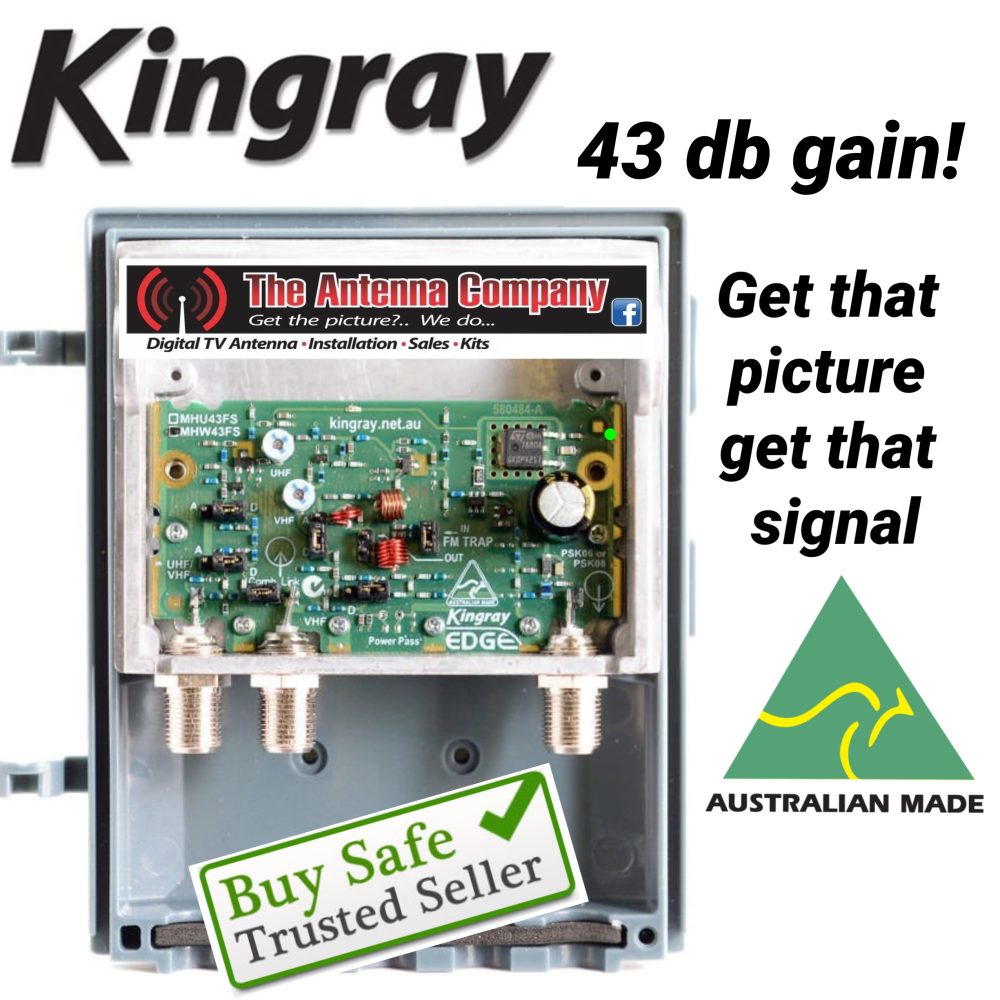

The MHW43FS is a VHF/UHF TV masthead amplifier, enclosed in a fully shield die-cast housing, with the capability to amplify signals either from combined or separate VHF and UHF antennas.
The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out. In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz. This amplifier also has the ability to allow FM radio signals to be passed through.
The masthead is powered remotely via a power supply that is included
Key Features
- Frequency Range 174-230 MHz & 520-694 MHz
- 43dB UHF Maximum Gain
- 26dB VHF Maximum Gain
- 10dB Gain Control for UHF
- 16-12dB Tilt Control for VHF
- Separate VHF & UHF Inputs or Combined Input
- FM Radio 88-108 MHz Pass-Through Selectable
- 4G/LTE Filtering
- Fully Shielded Die-cast Housing
- Weatherproof Housing
- High Output Figure of 108dB IMR3 (DIN45004B)
- Connectors: F-Type
- Power Consumption: 80mA
- Suitable Power Supply included: PSK06 Series /matchmaster depending on current stock
In the box
- MHW43FS
- Cable Tie
- Installation Manual

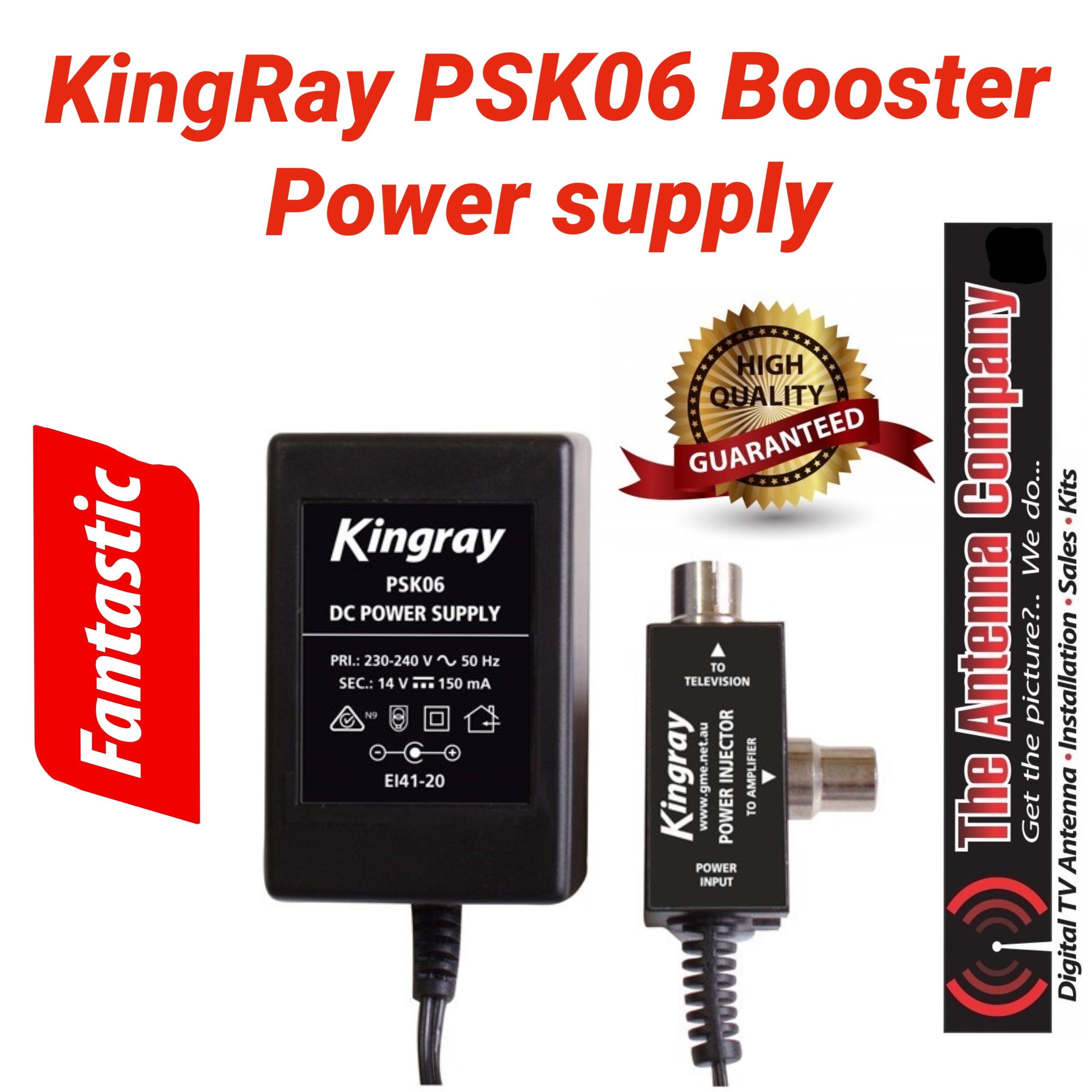

- power supply pal psk06
- or f type of suitable compatibility
