Description
Digital Antenna Kit 2-way Antenna Kit
Make your life easy with this kit, I’m flexible when it comes to the configuration of these systems please feel free to contact me it’s what i do and have done for over 30 yrs.
I can design a much bigger system for you if you wish 8 to 100 outlets if need be.
THIS IS A PREMIUM KIT, MUCH BETTER QUALITY INDUSTRY STANDARD
this incorporates the phase array Uhf very popular in coastal towns.
The Digital Antenna Kit 2-way Uhf antenna kit

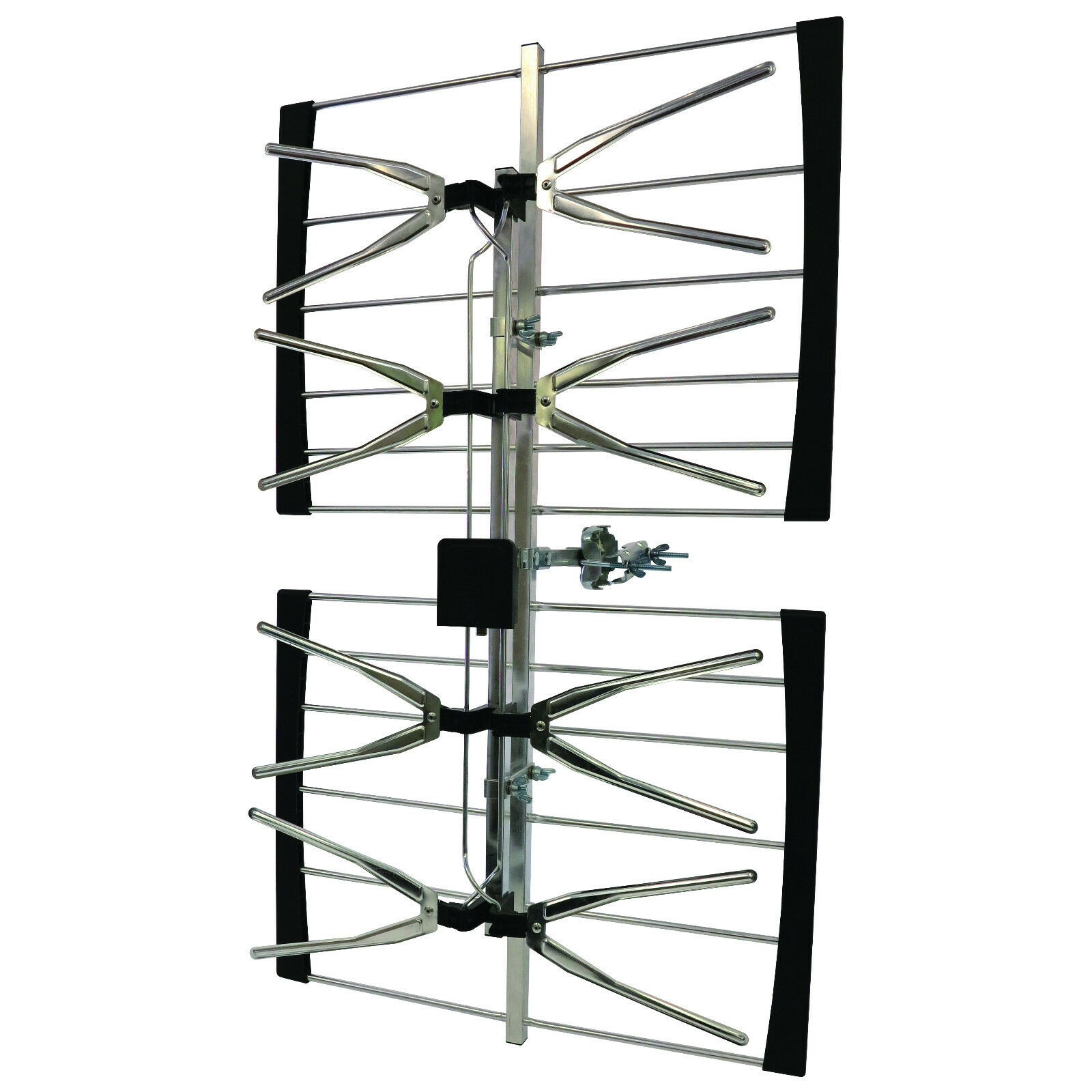

1 x UHF digital Matchmaster MDU 36 4g Australian designed Antenna

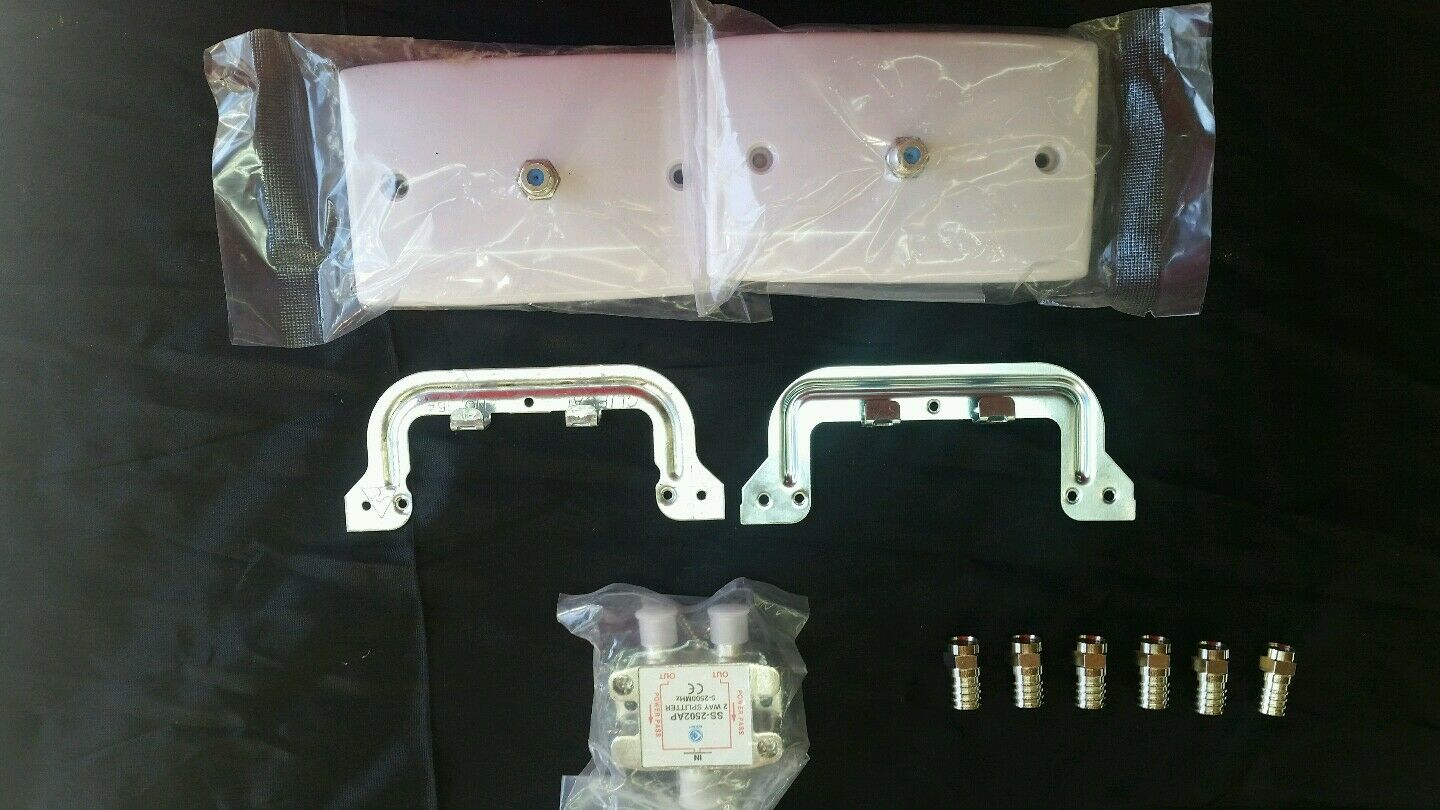

1 x 2-way f type digital splitter
2 x f type wall plates/Clipsal/Hpm copies whichever is in stock
2 x gyprock clips for f plates
2 x rg6 quad leads made to length 2x 15 meter with connectors done or combination made to a specific length

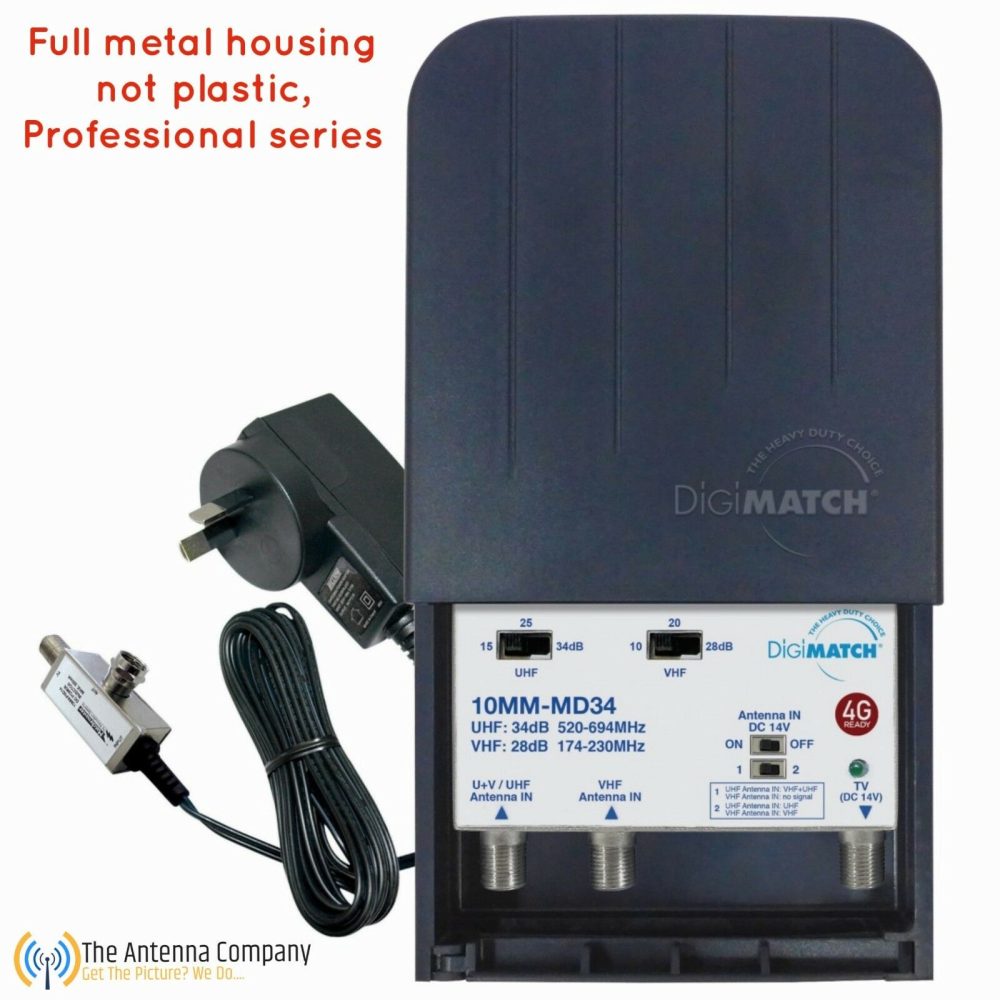

1 x Matchmaster Digimatch md34 4g digital booster amplifier
1 x Matchmaster f type power supply
1 x 4 spare f connectors

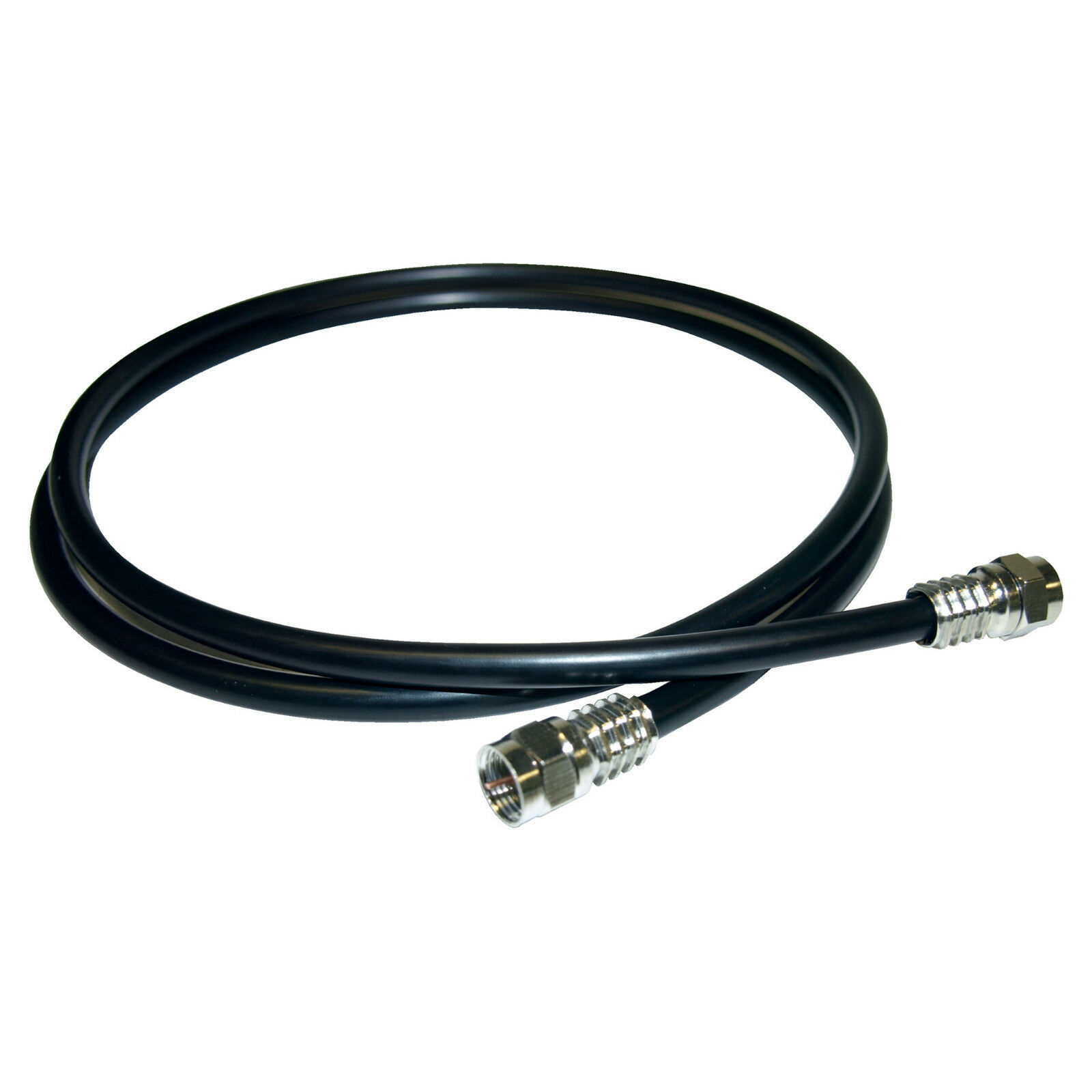

2 x quad rg6tv fly leads made for wall plate to tv @ 1.5 meters
1 x rg6 Quad lead from masthead amp to splitter @6 meters
1 x rg6 Quad lead from the antenna to the booster.
Specifications
| Elements | 36 | |
|---|---|---|
| Band | UHF | |
| Channels | (28-51) | |
| Frequency Range | 520-694MHz | |
| Maximum Gain | 12dB | |
| Front/Back Ratio | 20dB | |
| Half Power Beam Width Horizontal | 48° | |
| Half Power Beam Width Vertical | 29° | |
| Cable Connection | ‘F’ Type | |
you just need to mount to your existing pole (if you have one )
if you have a tin roof i have mounts for that as well just ask, or j mounts.
if you want custom lengths within the parameters of cable i have allowed for just let me know eg: you may want a 5 meter 15 meter or 2 10’s let me know at check out and I will do them for you.
if you were to have this installed by a professional it would be in the area of @4-$500. so for a Sunday arvo and a bit of effort you can save heaps.
so thanks for reading this ad:
just to confirm this is a 2 way digital UHF custom made premium Quality antenna kit, all leads will be hand made according to your needs you will need to specify with a message so I can make the appropriate leads for you as standard it will come with 2 x 15-meter leads or two made to length, leads with the f connectors compression fitted at each end it will also include a lead to go from the antenna to the Masthead amplifier and a lead of approximately 5 meters from the Masthead amplifier to where the splitter would be located includes all plugs and fittings seeing that I am making it up for you obviously there will not be many spare f connectors but I will supply 4 additional ones just in case. the booster comes with installation instructions if you have any questions you will be able to contact me and I will be able to guide you over the phone these UHF antennas are suited for regional and coastal areas etc up and down the eastern seaboard almost anywhere in Australia if you have any questions please feel free to ask.
thanks
john
