Description

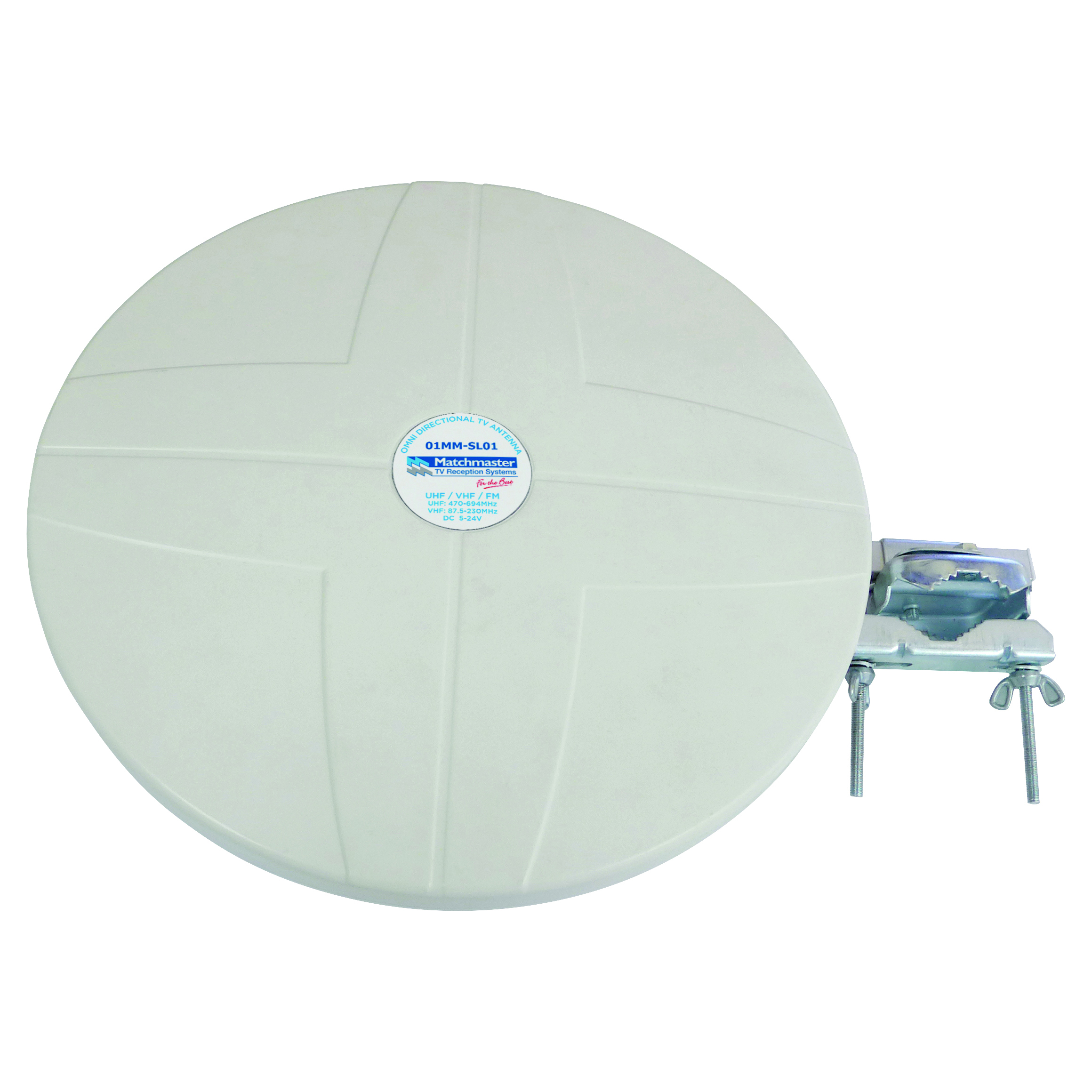

It comes packaged with a built-in booster/ amplifier and is also omnidirectional, meaning it can be installed and positioned in any direction for perfect reception. Receiving digital TV UHF/VHF signals, this Antenna is premium quality heavy duty, and made for the harsh Australian climate. The UHF/VHF/TV/FM antenna has a 694MHz low pass LTE filter to reduce interference from 4G mobile transmissions and an ‘F’ type balun to improve signal quality.
If you need some cable just add in checkout and I will put the ends on that you need.
- Suitable for caravan, marine, and apartments
- Receives channels 6-12 and 28-51
- Omnidirectional amplified antenna with 20dB gain
- Fully encased plastic outer with Stainless steel fittings to protect against corrosion
- 694MHz low pass filter > 40dB at 750MHz preamplifier to eliminate 4G (LTE) interference.
- Can be mounted directly onto a boat
- Can be mounted horizontally or vertically
- Can be mounted directly on a wall
- Stainless steel bracket for marine applications
- Power: DC 5 – 24V
- Antenna dimensions 330mm diameter x 40mm high

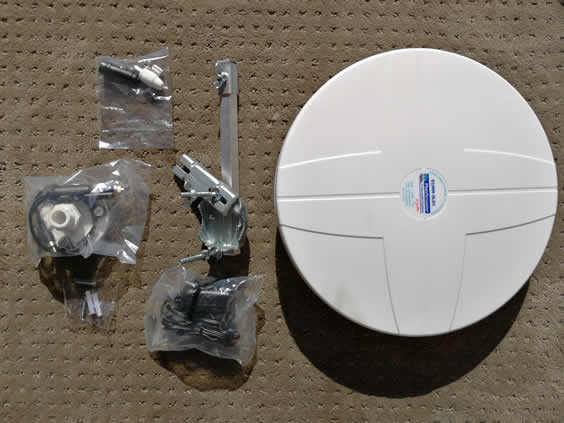

Included in the box
- omnidirectional antenna
- mount bracket ( see picture )

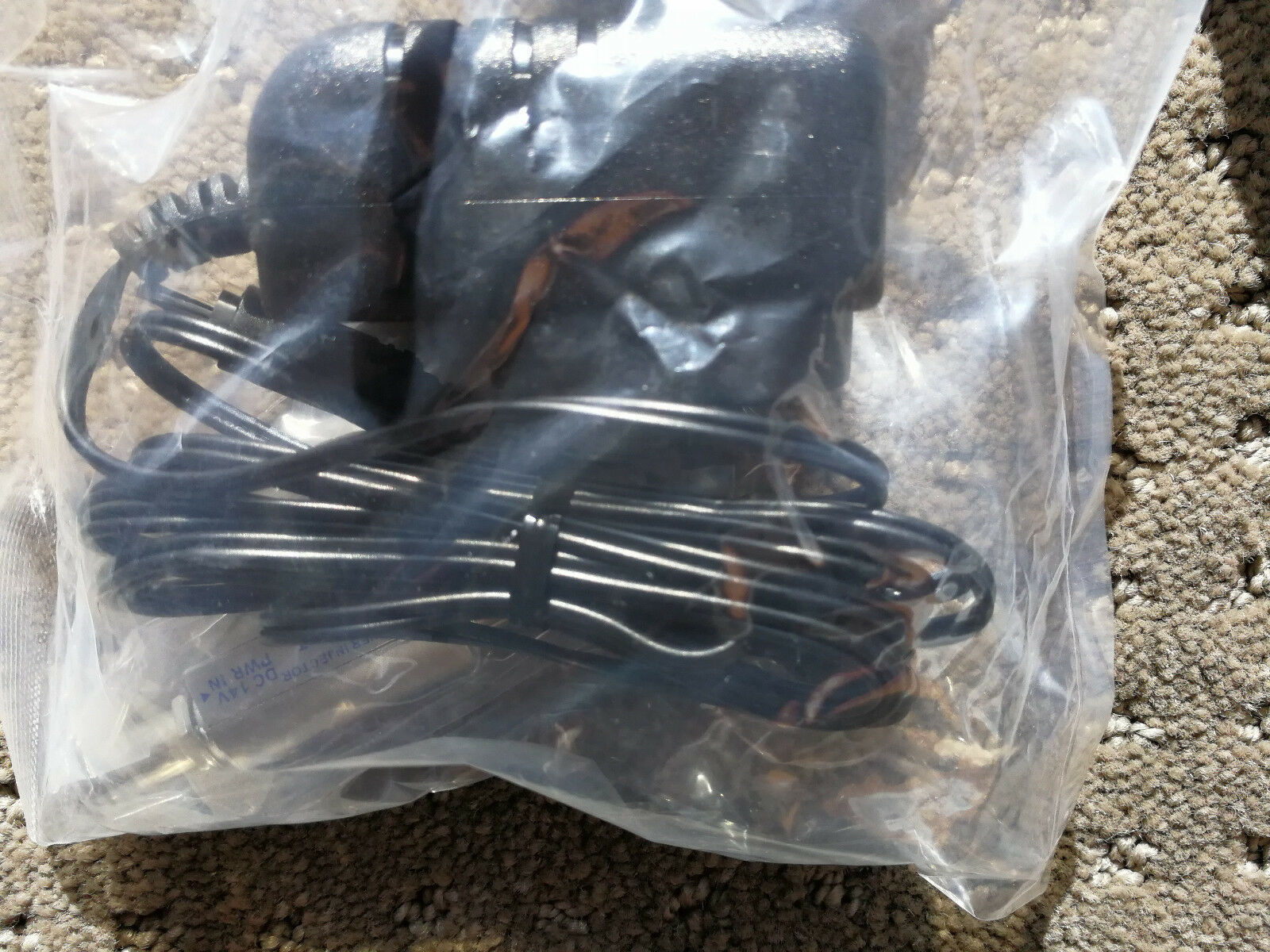

- Power adaptor: AC / DC Input- 230VAC/50Hz Output- DC14V
- Cigarette DC power adaptor.
- power injector
- adaptor fittings
Specifications
Band B/4/5, UHF Channels
UHF VHF (6-12)
UHF (28-51)Maximum Gain B3
UHF VHF 15dB
UHF 28dB Balun Type’F’ Type PCB
UHF VHF (6-12)
UHF (28-51)Maximum Gain B3
UHF VHF 15dB
UHF 28dB Balun Type’F’ Type PCB
