https://online.laceys.tv/documents/productpdf/LP45F700.pdf

this is a bulk buy only delivered to your door 30 in a box.

Price includes delivery!

Specifications

Band 4 & 5
Channels UHF: 28–51
Bandwidth 470–700MHz
Maximum gain UHF: 12.5dBi
Front-to-back ratio UHF: 36dB
Return loss UHF: -15dB
Beamwidth (from -3dB points) UHF: +/-25°
Impedance 75Ω
Maximum mast diameter Ø 60mm
Windload at 120Km/h (720N/m2
) 3.0kg (29.43N)
Accessories
Horizontal (or Vertical polarisation) Included
Connector F type

LP45F700

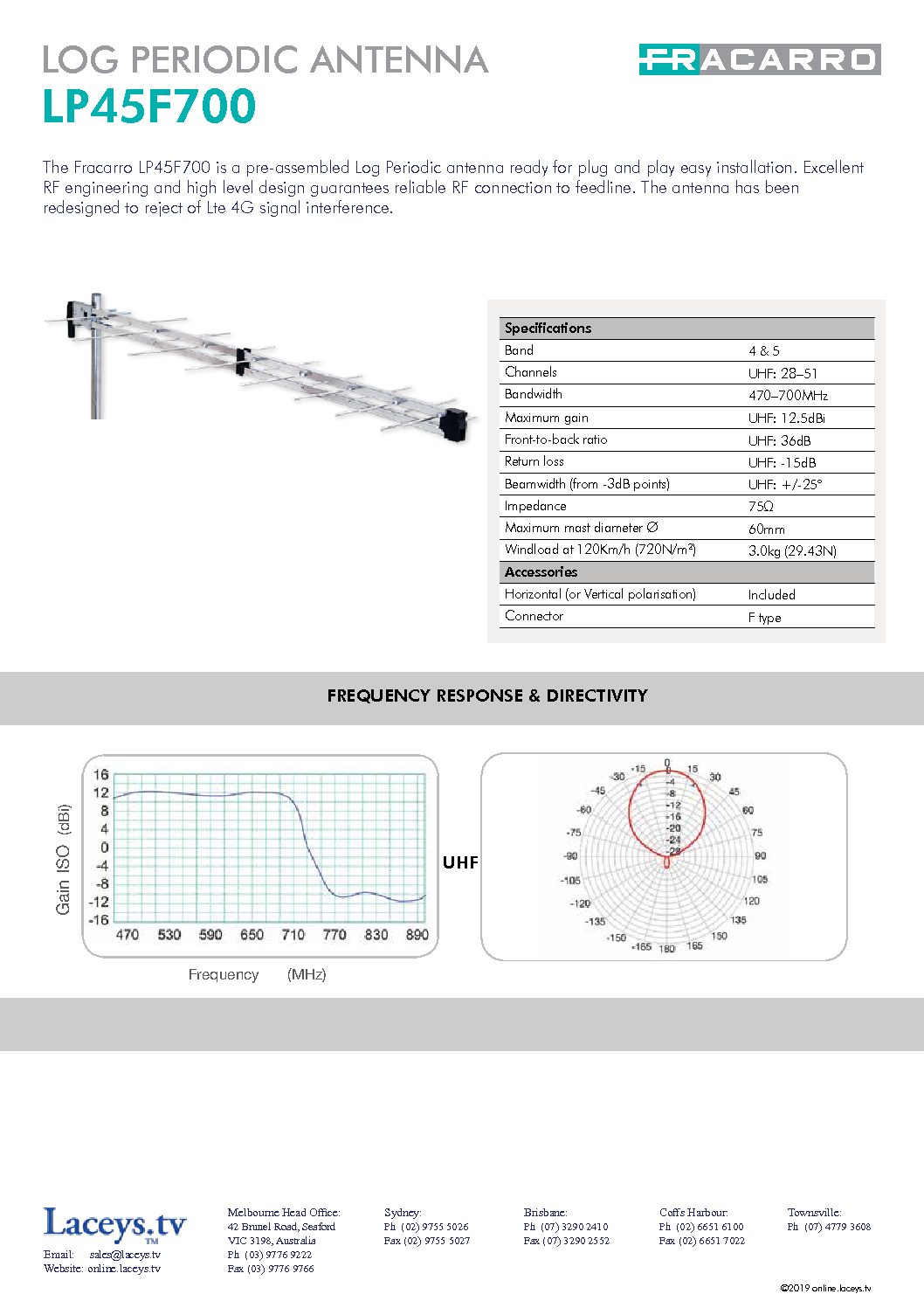

FREQUENCY RESPONSE & DIRECTIVITY

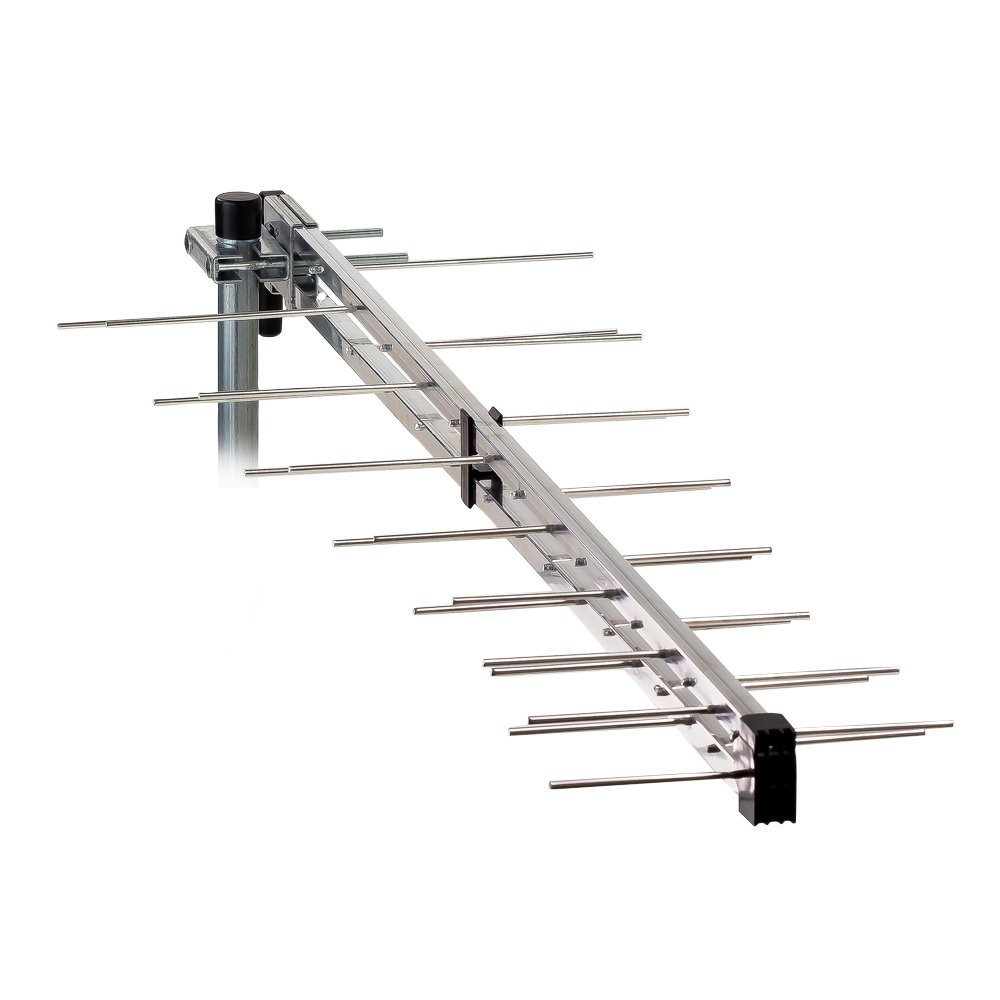

The Fracarro LP45F700 is a pre-assembled Log Periodic antenna ready for plug and play easy installation. Excellent
RF engineering and high level design guarantees reliable RF connection to feedline. The antenna has been
redesigned to reject of Lte 4G signal interference.

©2019 online.laceys.tv
LOG PERIODIC ANTENNA
LP45F700
