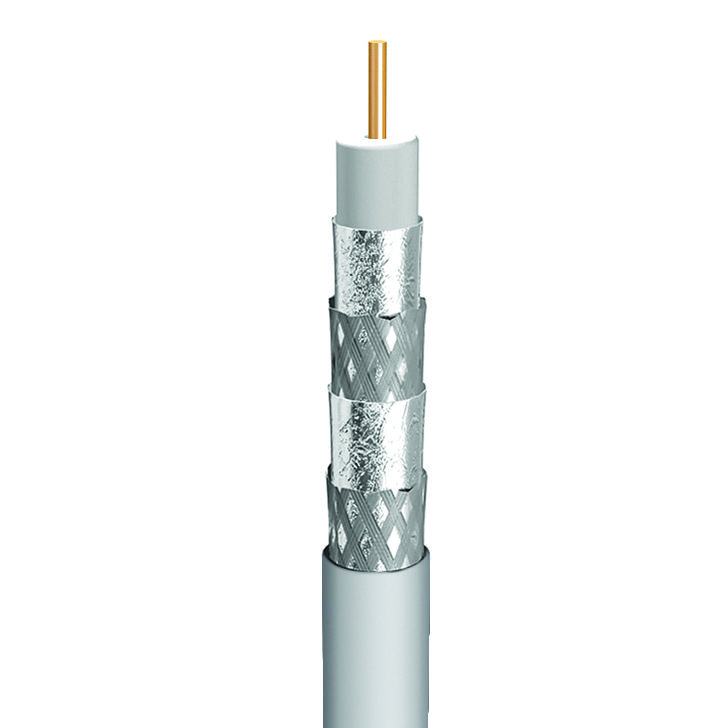

White RG6 Coaxial Cable

$ 1.69 inc GST

Pay TV-approved, this quad-shield cable is also suitable for digital TV. Both Foxtel and Optus approved, it has an inner conductor made of high-quality copper-clad steel wire. Its insulation consists of physically foamed PE, and its jacket is made from either FR PVC or standard PVC.

SOLD PER METER WHITE

222 in stock

Categories: ,

Description

Pay TV-approved, this quad-shield cable is also suitable for digital TV. Both Foxtel and Optus approved, it has an inner conductor made of high-quality copper-clad steel wire. Its insulation consists of physically foamed PE, and its jacket is made from either FR PVC or standard PVC. It is also 2011/65/EU-compliant for guaranteed quality. This is priced per meter for this white rg6 Quad cable. we can put connectors on the ends of your choice just choose what you like in the fittings section of our store, just add them to your cart, and put a note as to how you would like these to be installed.
  • An RG6 meter marked cable with quad shielding
  • Suitable and approved for Pay and Digital TV
  • Foxtel (F30440) and Optus (4868) approved

Specifications

Construction
Inner Conductor Material Copper Clad Steel Wire
Diameter, mm 1.02±0.01
Insulation Material Physically Foamed PE
Diameter, mm 4.57±0.15
Outer Conductor 1st shield Bonded Al/PET/Al Tape 4.78 ±0.13
2nd shield Al-Mg Alloy Wire Braid
3rd shield Non-bonded Al/PET/Al Tape
4th shield Al-Mg Alloy Wire Braid
Jacket Material FR PVC or PVC
Diameter, mm 7.54±0.20
Mechanical Properties
Bending Radius, mm Single 35
Typical 70
Pulling Strength, N 200
Adhesion Force, N >20
Electrical Properties
Impedance, Ω 75±3
DCR of Inner conductor, Ω /km 102.0
DCR of outer conductor, Ω /km 19.1
Capacitance, pF/m 54
Propagation Velocity, % 82
DC Breakdown Voltage, kV 5.0
Insulation Resistance, MΩ•km >1×104
Screening Attenuation, dB >105@5~1000MHz
>95@1000~2000MHz
>85@2000~3000MHz
Attenuation
Frequency MHz Max. attenuation @20℃,dB/100m
5MHz 1.90
55MHz 5.25
211MHz 10.00
250MHz 10.82
270MHz 11.04
300MHz 11.64
330MHz 12.26
350MHz 12.63
400MHz 13.61
450MHz 14.43
500MHz 15.29
550MHz 16.08
600MHz 16.73
750MHz 18.54
870MHz 20.04
1000MHz 21.49
1300MHz 24.49
1450MHz 25.89
1750MHz 28.67
2150MHz 31.79
2600MHz 35.30
2832MHz 37.74
3000MHz 38.84
Return Loss, dB
5-3000MHz ≥20
Standards
2011/65/EU Compliant

Additional information

Weight .2 kg
Dimensions 1 × 1 cm
